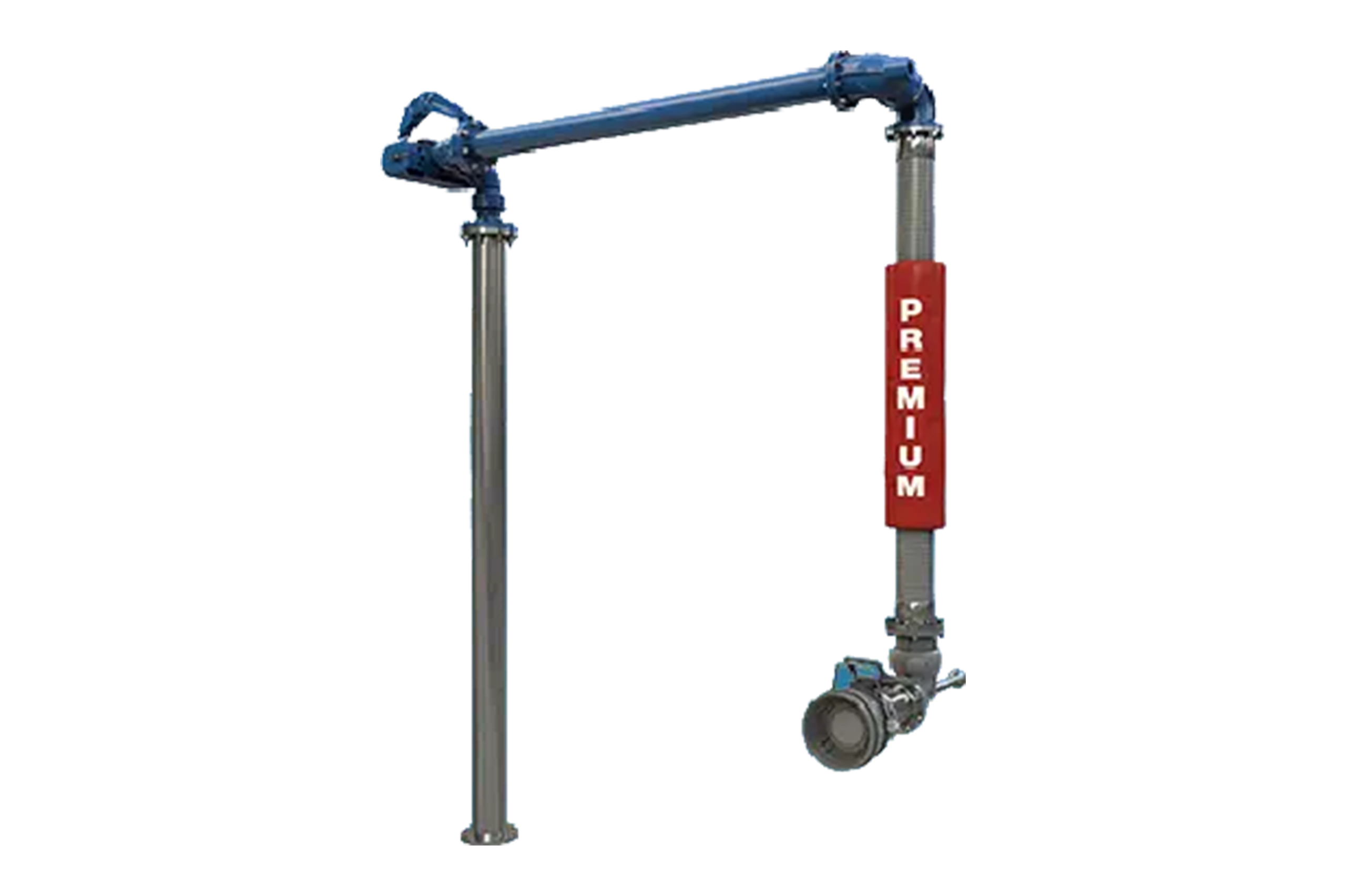

Short-Range Hose Bottom Loading Arm
SRH-32-F
The SRH-32-F Short Range Hose Loader is a bottom loading arm system designed for the safe and efficient loading and unloading of petroleum products, chemicals, and liquefied gases. It provides a reliable solution for facilities that require faster product transfer while maintaining high safety standards.
SafeRack supplies and supports the SRH-32-F Short Range Hose Loader with expert specification guidance from Regional Area Managers who help you select the right size, materials, and end fitting for your terminal. Our team provides configuration assistance to ensure safe, efficient, and reliable loading operations. Get technical support, lead times, and pricing for the SRH-32-F Short Range Hose Loader in one call.
Short-Range Hose Bottom Loading Arm SRH-32-F
Safety & Compliance Expert
HAVE A QUESTION?
Talk to a Safety Expert Now
Short-Range Hose Bottom Loading Arm SRH-32-F
Overview
The SRH-32-F Short Range Hose Loader is designed to support efficient bottom loading operations across a variety of industrial applications. Bottom loading systems offer several advantages over traditional top-loading methods, including reduced loading times, improved safety, and lower vapor emissions.
The system minimizes turbulence inside the tank during loading, helping reduce static electricity generation and improving overall transfer safety. It can also be integrated with vapor recovery systems to further enhance environmental compliance and operational efficiency.
Key Features
- Designed for bottom loading and unloading operations
- Suitable for petroleum products, chemicals, and liquefied gases
- Allows operators to remain safely on the ground
- Faster connection and disconnection process
- Reduces loading and unloading time
- Minimizes turbulence inside tanks
- Helps reduce static electricity generation
- Supports vapor reduction and vapor recovery systems
- Allows multiple tank compartments to be loaded simultaneously
- Improves terminal efficiency and productivity
- Simplifies loading rack design and installation
SRH-32-F Specifications
| Specification | Detail |
|---|---|
| Model | SRH-32-F |
| Type | Short Range Hose Loader |
| Loading Method | Bottom Loading |
| Suitable Products | Petroleum Products, Chemicals, Liquefied Gases |
| Operation | Ground-Level Loading |
| Vapor Recovery Capability | Available |
| Multi-Compartment Loading | Supported |
| Application | Loading and Unloading Operations |
Materials of construction
| Component | Material |
|---|---|
| Loading Arm Structure | Carbon Steel |
| Optional Construction | Stainless Steel |
| Hose Assembly | Industrial Transfer Hose |
| Coupling Components | Industrial Grade Metal Construction |
| API Coupler | Aluminum |
| Seal Materials | Application-Specific Elastomers |
SRH-32-F Frequently Asked Questions
The SRH-32-F Short Range Hose Loader is used for bottom loading and unloading of petroleum products, chemicals, and liquefied gases. It provides a safe and efficient transfer method for truck and terminal operations.
One of the main benefits is that operators can remain on the ground throughout the loading process. This reduces fall hazards and improves overall safety compared to conventional top-loading systems.
Bottom loading creates less turbulence inside the tank than top loading. This helps reduce static electricity generation, lowering the risk associated with transferring flammable products.
Yes. The system can be adapted to recover displaced vapors during loading operations, helping reduce emissions and improve environmental compliance.
Yes. The SRH-32-F supports simultaneous loading of multiple tank compartments, helping increase loading efficiency and reduce vehicle turnaround times.
