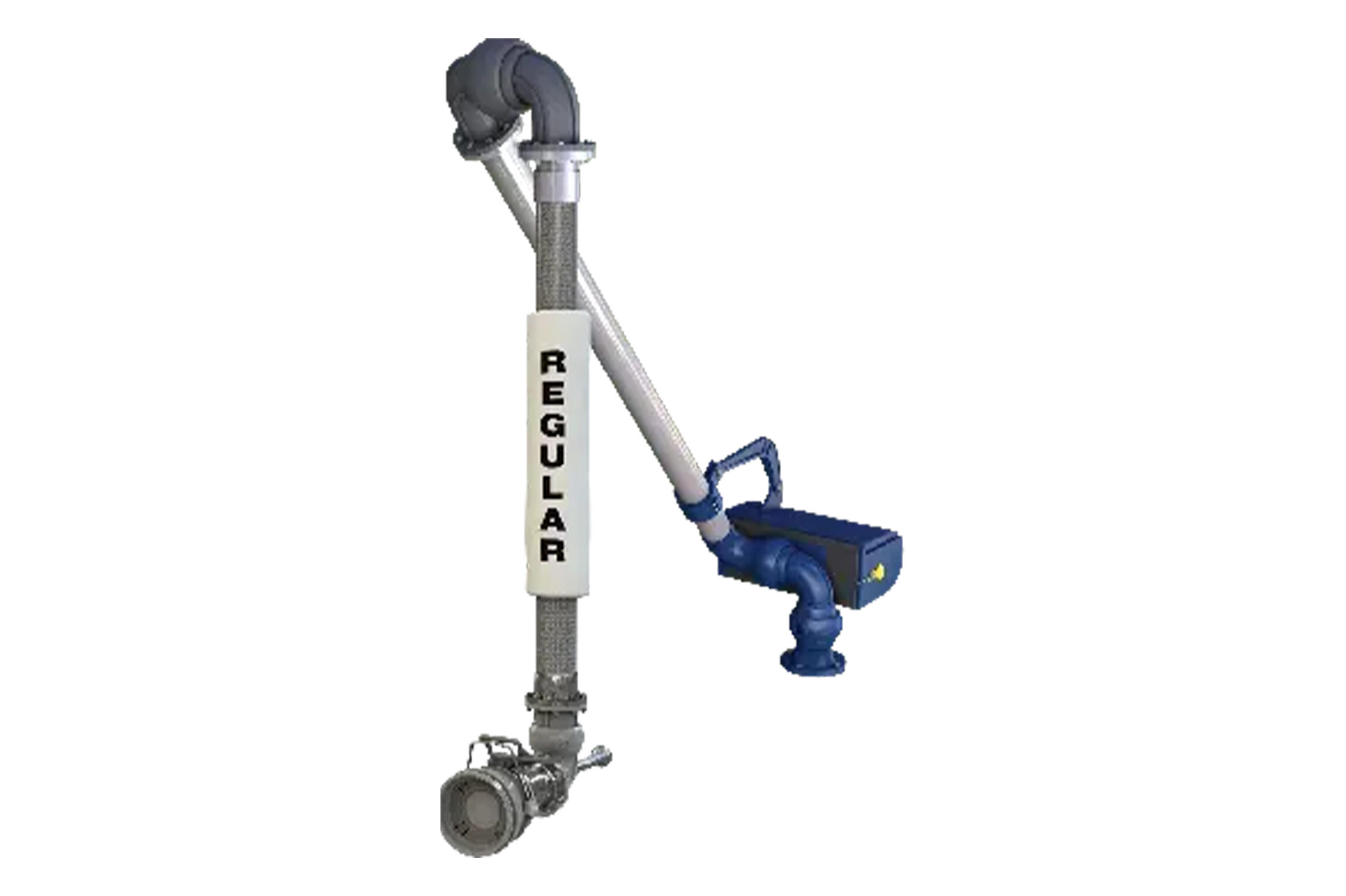

The A Frame Loader engineered to provide safe, efficient, and reliable loading and unloading operations across a wide range of industries. Available in sizes ranging from 2″ to 4″, it can be manufactured in carbon steel, stainless steel, or aluminum to meet specific application requirements. Its unique A-frame design allows the loading arm to accommodate vehicle elevation changes and tilting during transfer operations while maintaining smooth maneuverability. When not use, the arm stores in a near-vertical position, reducing space requirements and allowing multiple loading arms to be installed in close proximity. The system can be customized with various couplings, valves, grounding systems, safety breakaway devices, and heating solutions to meet operational needs.
Key Features
- Available in 2″, 3″, and 4″ sizes
- Offered in carbon steel, stainless steel, and aluminum construction
- Suitable for bottom-loading and top-loading applications
- Handles LPG products including propane and butane
- Adjusts for vehicle elevation and tilt during loading and unloading
- Stores in an upright, near-vertical position
- Compact storage envelope minimizes installation space requirements
- Low riser mounting height design
- Available with dry-disconnect couplings, unions, or tight-fill inlets
- Choice of flanged, threaded, or all-welded construction
- LPG service models feature all-welded construction
- Fully customizable to suit specific applications
- Easy to operate and maneuver
- Eliminates the need for cumbersome transfer hoses
- Provides safe clearance for vehicles when stored
- Supports crossover operations and multi-product loading systems
M-32-F A-Frame Loader Specifications
| Specification | Details |
|---|---|
| Configuration | A Frame Loader |
| Application | DBottom Loading, Top Loading, Unloading |
| Available Sizes | 2″, 3″, 4″ |
| Materials | Carbon Steel, Stainless Steel, Aluminum |
| LPG Compatibility | Propane, Butane, LPG Service |
| Construction Options | Flanged, Threaded, All-Welded |
| Storage Position | Near-Vertical Upright Storage |
| Mounting | Low Riser Mounting Height |
| Coupling Options | Dry Disconnect, Union, Tight-Fill Inlet |
| Customization | Fully Customizable |
| Counterbalance Option | Pneumatic Counterbalancing Available |
| Valve Options | 6400 Series Horizontal Valve, Ball Valves |
| Safety Features | Ground Verification, Breakaway Couplings, Bonding Systems |
Materials of construction
| Component | Material |
|---|---|
| Primary Arm Pipe | Carbon Steel, Stainless Steel, or Aluminum |
| Secondary Arm Pipe | Carbon Steel, Stainless Steel, or Aluminum |
| Swivels | Carbon Steel or Stainless Steel |
| Inlet Flange | Carbon Steel, Stainless Steel, or Aluminum |
| Couplings | Aluminum, Carbon Steel, or Stainless Steel (depending on application) |
| Loading Valves | Aluminum Construction (6400 Series) |
| Fasteners | Zinc-Plated Steel or Stainless Steel |
Source: M-32-F A-Frame Loader
OPW M-32-F A-Frame Loader Asked Questions
A Frame Loader is use for transferring liquids and gases between storage systems and transportation vehicles. It is commonly use for tank truck bottom loading, top loading, and unloading applications.
The system can handle petroleum products, LPG, propane, butane, chemicals, asphalt, waxes, resins, and other industrial liquids depending on the selected materials and configuration.
The A Frame Loader is available in carbon steel, stainless steel, and aluminum to meet different operational and environmental requirements.
Yes. The loading arm can be customize with various couplings, valves, grounding systems, heating jackets, insulation packages, and safety accessories.
Loading arms provide improved safety, greater durability, easier handling, reduced maintenance, and more efficient product transfer compared to flexible hoses.
