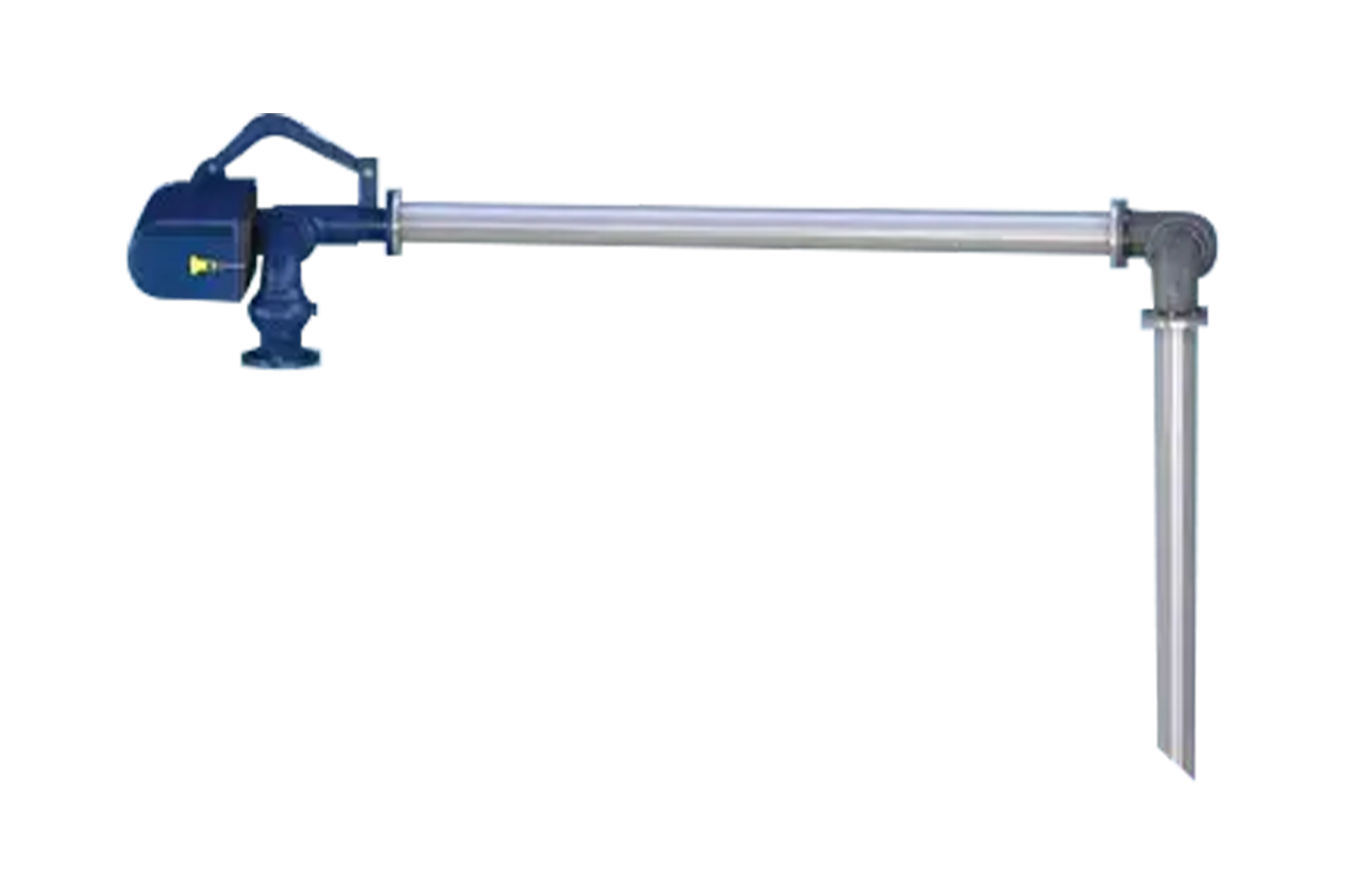

OPW Engineered Systems E-32-F — Single Arm Fixed Reach (with valve)
The E-32-F Single Arm Fixed Reach Loading Arm is designed to provide efficient and dependable liquid transfer for loading and unloading operations. Featuring a fixed-reach configuration with an integrated valve, this loading arm combines reliable flow control with durable construction, making it an ideal solution for petroleum, chemical, and bulk liquid handling facilities.
SafeRack supplies and supports OPW loading arms with expert spec guidance from Regional Area Managers who help you select the right size, materials, and end fitting for your terminal. Get configuration help, lead times, and pricing in one call.
OPW Engineered Systems E-32-F — Single Arm Fixed Reach (with valve)
Safety & Compliance Expert
HAVE A QUESTION?
Talk to a Safety Expert Now
OPW Engineered Systems E-32-F — Single Arm Fixed Reach (with valve)
Overview
The E-32-F Fixed Reach Loading Arm is engineered for applications where loading points remain within a defined operating area. Its single-arm design offers simple operation while maintaining dependable performance in demanding industrial environments. Equipped with an integrated valve, the E-32-F allows operators to control product flow directly from the loading arm, improving operational efficiency and simplifying transfer procedures. The fixed-reach configuration minimizes complexity while providing a stable and reliable loading solution. Designed for long-term service, the E-32-F is suitable for loading racks, storage terminals, and bulk liquid transfer installations where durability and ease of maintenance are important considerations.
Key Features
- Single arm fixed-reach configuration
- Integrated valve for flow control
- Designed for loading and unloading operations
- Durable industrial construction
- Smooth and reliable operation
- Fixed operating position for consistent performance
- Maintenance-friendly design
- Suitable for petroleum and liquid transfer applications
- Compact installation footprint
- Supports efficient product handling
- Long service life in demanding environments
- Compatible with various loading rack configurations
E-32-F Fixed Reach Loading Arm Specifications
| Specification | Details |
|---|---|
| Product Type | Fixed Reach Loading Arm |
| Model | E-32-F |
| Configuration | Single Arm Fixed Reach |
| Valve Configuration | Integrated Valve |
| Application | Liquid Transfer and Loading Operations |
| Loading Style | Top or Bottom Loading (Application Dependent) |
| Installation Type | Rack Mounted |
| Operation | Manual |
| Service | Loading and Unloading |
| Reach Type | Fixed Reach |
| Configuration Options | Customizable Based on Application Requirements |
Materials of construction
| Component | Material |
|---|---|
| Boom Arm Structure | Carbon Steel |
| Swivel Assemblies | Carbon Steel or Aluminum |
| Integrated Valve Assembly | Carbon Steel, Stainless Steel, or Aluminum |
| Connection Components | Carbon Steel, Stainless Steel, or Aluminum |
| Seals | Product-Compatible Elastomers |
| Hardware & Fasteners | Corrosion-Resistant Steel |
| Mounting Components | Heavy-Duty Steel Construction |
Sourse: Loading-Arm-configurations
Source: Loading-Arm-Design-Form
E-32-F Fixed Reach Loading Arm Frequently Asked Questions
The E-32-F is use for loading and unloading liquid products in petroleum terminals, chemical facilities, and industrial transfer operations.
The integrated valve provides convenient flow control directly from the loading arm, helping improve operational efficiency and safety.
A fixed-reach design provides simple operation, reduced maintenance requirements, and reliable performance in applications with consistent loading positions.
The loading arm is commonly use in petroleum distribution, chemical processing, bulk liquid storage, and industrial transfer facilities.
Yes. The loading arm can be configure with various materials, connections, and accessories to suit specific operational requirements.
