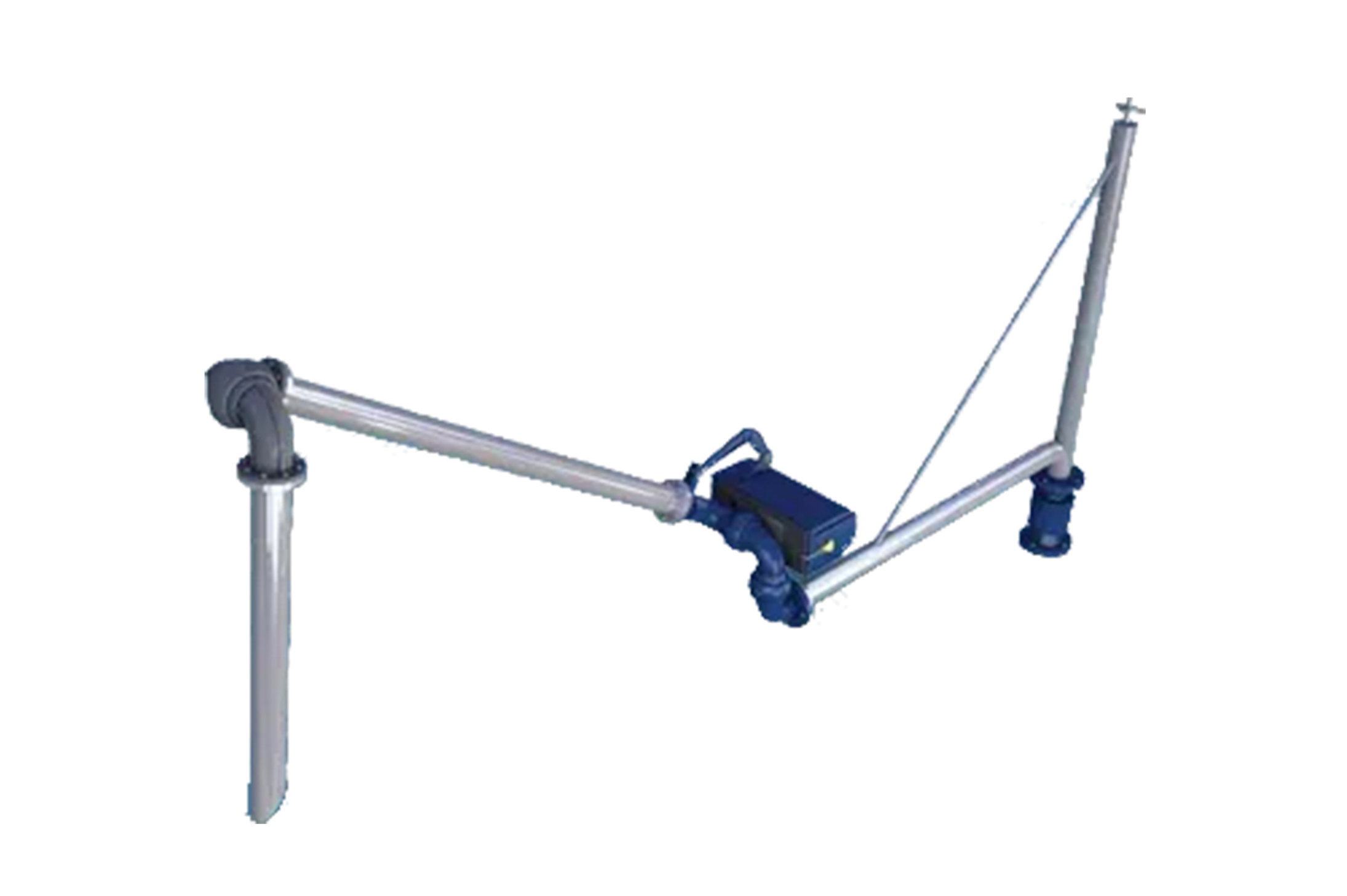

OPW Engineered Systems B-32-RF — Supported Boom Arm (with valve and remote handle)
The B-32-RF Supported Boom Arm is engineered to provide safe, efficient, and controlled liquid transfer for loading and unloading applications. Featuring a supported boom design, integrated valve, and remote handle operation, this loading arm delivers enhanced accessibility, operator convenience, and reliable performance in demanding industrial environments.
SafeRack supplies and supports OPW loading arms with expert spec guidance from Regional Area Managers who help you select the right size, materials, and end fitting for your terminal. Get configuration help, lead times, and pricing in one call.
OPW Engineered Systems B-32-RF — Supported Boom Arm (with valve and remote handle)
Safety & Compliance Expert
HAVE A QUESTION?
Talk to a Safety Expert Now
OPW Engineered Systems B-32-RF — Supported Boom Arm (with valve and remote handle)
Overview
The B-32-RF Supported Boom Arm combines structural support, flexible positioning, and integrated flow control to streamline loading operations. The supported boom configuration helps improve stability while providing an extended working range for accessing transport vehicles and storage systems. Equipped with an integrated valve and remote handle, the B-32-RF allows operators to control product flow from a convenient location, improving safety and operational efficiency. This design minimizes the need to reach difficult areas during loading and unloading procedures while maintaining precise control over liquid transfer. Suitable for petroleum, chemical, and bulk liquid handling applications, the B-32-RF is built for dependable service and long-term durability in terminal and loading rack environments.
Key Features
- Supported boom arm configuration
- Integrated valve for flow control
- Remote handle operation for improved accessibility
- Extended reach and flexible positioning
- Smooth and controlled operation
- Durable industrial construction
- Designed for loading and unloading applications
- Suitable for petroleum and liquid transfer operations
- Enhanced operator convenience and safety
- Maintenance-friendly design
- Reliable performance in demanding environments
- Long service life with proper maintenance
E-32-F Fixed Reach Loading Arm Specifications
| Specification | Details |
|---|---|
| Product Type | Supported Boom Loading Arm |
| Model | B-32-RF |
| Configuration | Supported Boom Arm |
| Valve Configuration | Integrated Valve |
| Handle Type | Remote Handle |
| Application | Liquid Transfer and Loading Operations |
| Operation | Manual with Remote Actuation |
| Installation Type | Rack Mounted |
| Service | Loading and Unloading |
| Reach Type | Extended Working Envelope |
| Configuration Options | Customizable Based on Application Requirements |
Materials of construction
| Component | Material |
|---|---|
| Boom Arm Structure | Carbon Steel |
| Swivel Assemblies | Carbon Steel or Aluminum |
| Integrated Valve Assembly | Carbon Steel, Stainless Steel, or Aluminum |
| Connection Components | Carbon Steel, Stainless Steel, or Aluminum |
| Seals | Product-Compatible Elastomers |
| Hardware & Fasteners | Corrosion-Resistant Steel |
| Remote Handle Components | Steel and Industrial-Grade Hardware |
Sourse: Loading-Arm-configurations
Source: Loading-Arm-Design-Form
E-32-F Fixed Reach Loading Arm Frequently Asked Questions
The B-32-RF is designed for loading and unloading liquid products in petroleum terminals, chemical facilities, and industrial transfer operations.
The supported boom configuration provides added stability, improved reach, and smoother operation during loading activities.
The remote handle allows operators to control the integrated valve from a more convenient location, improving accessibility and safety during loading operations.
The loading arm is commonly use in petroleum distribution, chemical processing, bulk liquid storage, and industrial transfer facilities.
Yes. The loading arm can be configure with various materials, connection options, and accessories to meet specific application requirements.
