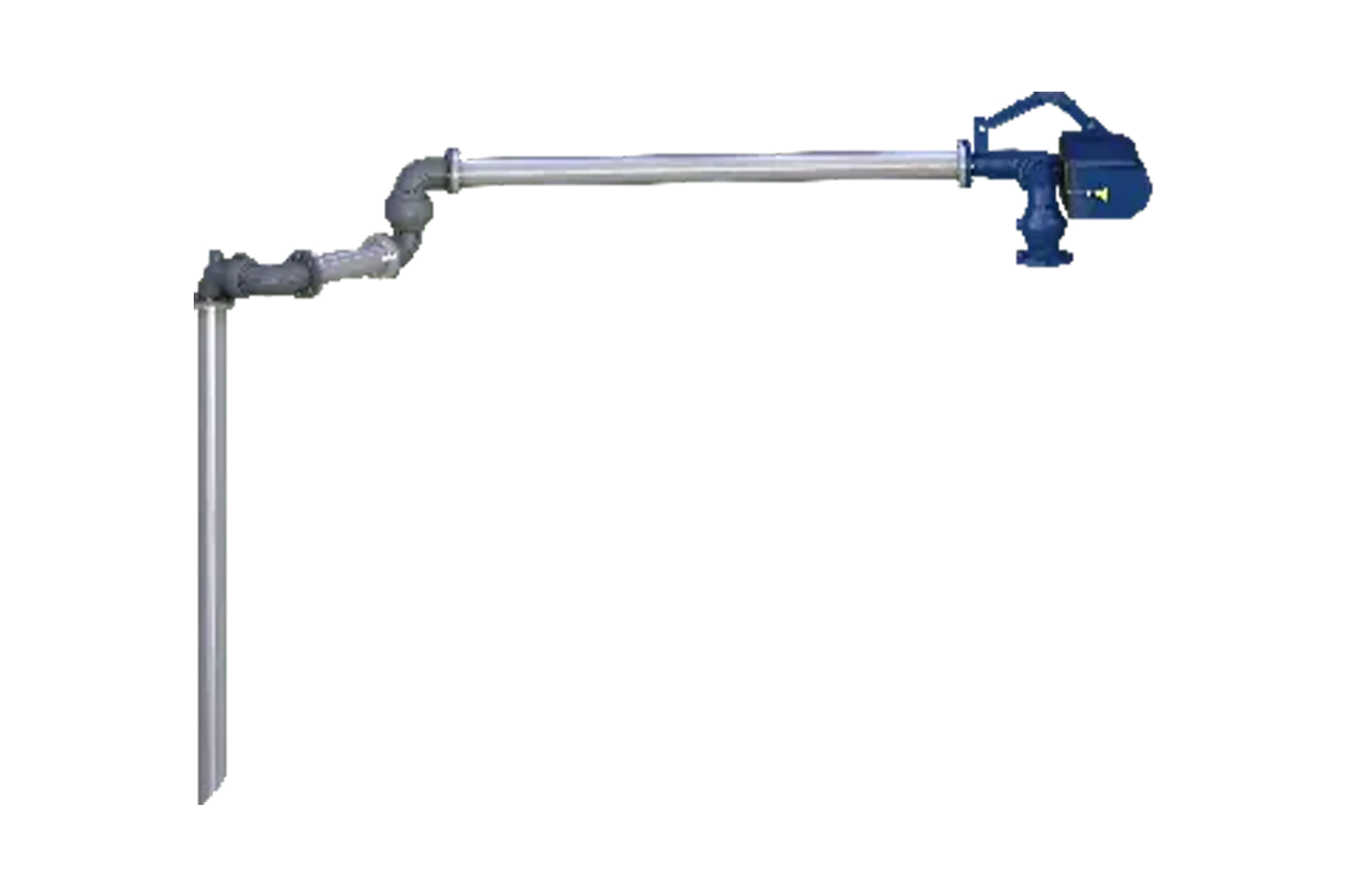

OPW Engineered Systems H-32-F — Scissor Type Arm (without valve)
The H-32-F Scissor Type Loading Arm is designed to provide flexible and efficient liquid transfer for loading and unloading applications. Its articulated scissor-arm design allows operators to easily reach connection points while maintaining smooth movement and dependable performance. Built for demanding industrial environments, the H-32-F delivers reliable operation and long-term durability.
SafeRack supplies and supports OPW loading arms with expert spec guidance from Regional Area Managers who help you select the right size, materials, and end fitting for your terminal. Get configuration help, lead times, and pricing in one call.
OPW Engineered Systems H-32-F — Scissor Type Arm (without valve)
Safety & Compliance Expert
HAVE A QUESTION?
Talk to a Safety Expert Now
OPW Engineered Systems H-32-F — Scissor Type Arm (without valve)
Overview
The H-32-F Scissor Type Loading Arm is engineered to accommodate varying vehicle positions and loading point locations through its versatile articulated design. The scissor-arm configuration provides an expanded working envelope, allowing operators to position the loading arm with greater precision and less effort. Designed for petroleum, chemical, and bulk liquid transfer applications, the H-32-F offers a rugged construction that supports safe and efficient loading operations. The arm’s flexible movement helps improve accessibility while reducing strain during positioning and connection procedures. Supplied without an integrated valve, the H-32-F can be paired with external flow control systems to meet specific facility requirements and operational preferences.
Key Features
- Scissor-type articulated loading arm design
- Expanded working envelope for improved accessibility
- Smooth and controlled operation
- Flexible positioning for varying loading points
- Durable industrial construction
- Designed for loading and unloading applications
- Suitable for petroleum and liquid transfer operations
- Maintenance-friendly design
- Reliable performance in demanding environments
- Compatible with external flow control systems
- Supports efficient vehicle loading operations
- Long service life with proper maintenance
H-32-F Scissor Type Loading Arm Specifications
| Specification | Details |
|---|---|
| Product Type | Scissor Type Loading Arm |
| Model | H-32-F |
| Configuration | Articulated Scissor Arm |
| Valve Configuration | Without Valve |
| Application | Liquid Transfer and Loading Operations |
| Installation Type | Rack Mounted |
| Operation | Manual |
| Service | Loading and Unloading |
| Reach Type | Flexible Working Envelope |
| Configuration Options | Customizable Based on Application Requirements |
Materials of construction
| Component | Material |
|---|---|
| Primary Arm Structure | Carbon Steel |
| Secondary Arm Structure | Carbon Steel |
| Swivel Assemblies | Carbon Steel or Aluminum |
| Connection Components | Carbon Steel, Stainless Steel, or Aluminum |
| Seals | Product-Compatible Elastomers |
| Hardware & Fasteners | Corrosion-Resistant Steel |
| Mounting Components | Heavy-Duty Steel Construction |
Sourse: Loading-Arm-configurations
Source: Loading-Arm-Design-Form
H-32-F Scissor Type Loading Arm Frequently Asked Questions
The H-32-F is designed for loading and unloading liquid products in terminals, storage facilities, and industrial transfer operations.
The scissor-arm design provides greater flexibility, a larger working envelope, improved accessibility, and easier positioning during loading operations.
The H-32-F is supplied without an integrated valve, allowing facilities to use separate flow control equipment that matches their operational requirements.
The loading arm is commonly use in petroleum terminals, chemical processing facilities, bulk liquid storage operations, and industrial transfer applications.
Yes. Its articulated scissor-arm design allows operators to adapt to varying vehicle heights and connection locations within the working envelope.
