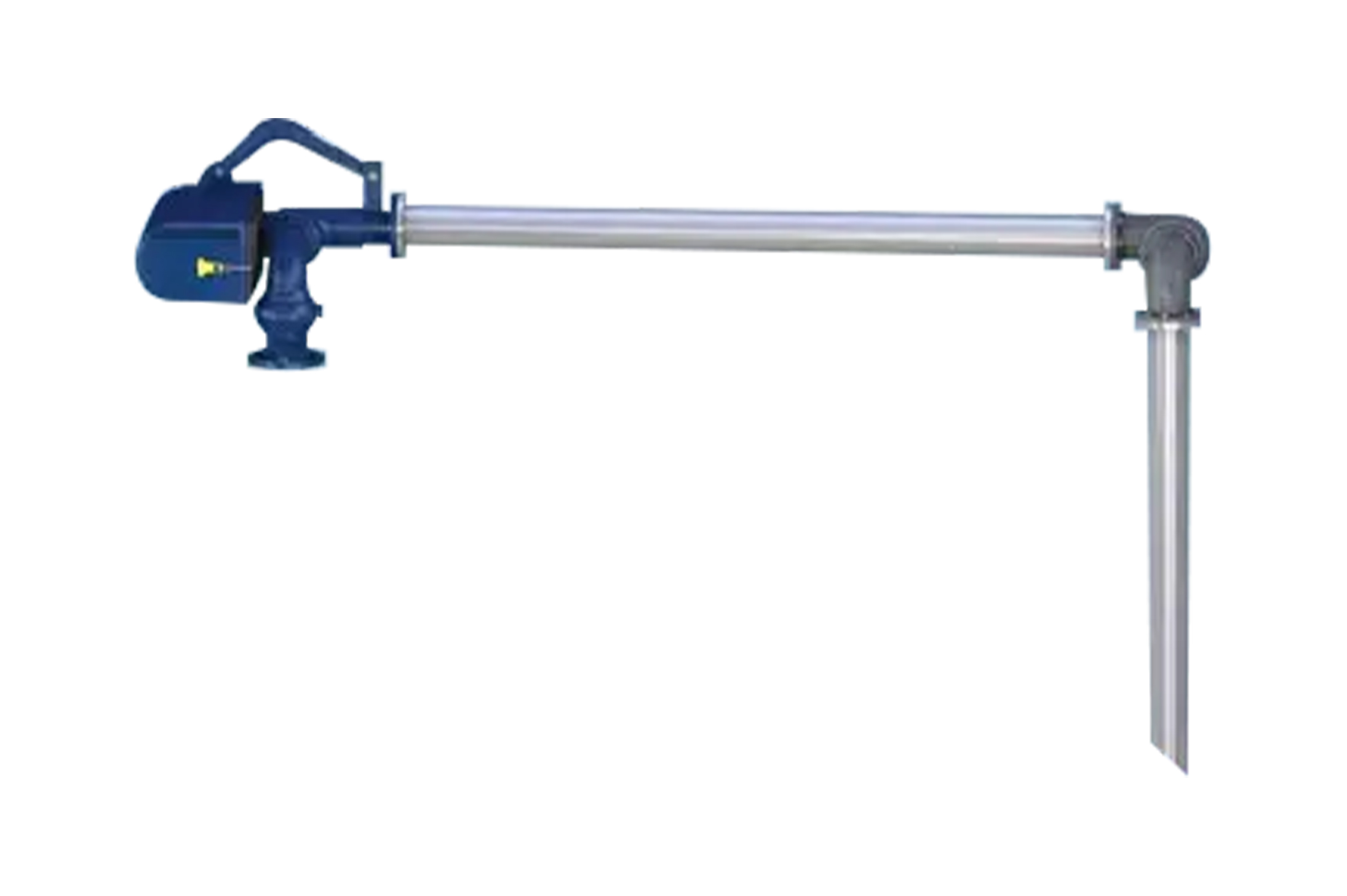

J-32-F Fixed Reach Style Top Loading Arm
The J-32-F Single Arm Fixed Reach Loader is designed to provide dependable and efficient liquid transfer for loading and unloading applications. Featuring a fixed-reach configuration and durable construction, this loading arm offers a simple, cost-effective solution for facilities requiring reliable product transfer without the need for complex articulation systems.
SafeRack supplies and supports OPW loading arms with expert spec guidance from Regional Area Managers who help you select the right size, materials, and end fitting for your terminal. Get configuration help, lead times, and pricing in one call.
J-32-F Fixed Reach Style Top Loading Arm
Safety & Compliance Expert
HAVE A QUESTION?
Talk to a Safety Expert Now
J-32-F Fixed Reach Style Top Loading Arm
Overview
The J-32-F Single Arm Fixed Reach Loader is engineered for applications where loading points remain within a defined operating area. Its fixed-reach design provides consistent positioning and smooth operation while minimizing maintenance requirements. Built for industrial loading environments, the J-32-F offers a robust construction that supports long-term performance in petroleum, chemical, and bulk liquid transfer operations. The streamlined design simplifies operation while allowing operators to efficiently connect to transport vehicles and storage systems. Without an integrated valve, the loader can be configured to work with external flow control equipment, providing flexibility for a wide range of facility requirements.
Key Features
- Single arm fixed-reach configuration
- Designed for loading and unloading operations
- Durable industrial construction
- Simple and reliable operation
- Fixed operating position for consistent performance
- Low-maintenance design
- Suitable for petroleum and liquid transfer applications
- Compact installation footprint
- Compatible with various terminal configurations
- Supports safe and efficient product handling
- Flexible integration with external flow control systems
- Designed for long service life in demanding environments
J-32-F Fixed Reach Style Top Loading Arm Specifications
| Specification | Details |
|---|---|
| Product Type | Fixed Reach Loading Arm |
| Model | J-32-F |
| Configuration | Single Arm Fixed Reach |
| Valve Configuration | Without Valve |
| Application | Liquid Transfer and Loading Operations |
| Installation Type | Rack Mounted |
| Operation | Manual |
| Service | Loading and Unloading |
| Reach Type | Fixed Reach |
| Configuration Options | Customizable Based on Application Requirements |
Materials of construction
| Component | Material |
|---|---|
| Main Arm Structure | Carbon Steel |
| Swivel Assemblies | Carbon Steel or Aluminum |
| Connection Components | Carbon Steel, Stainless Steel, or Aluminum |
| Seals | Product-Compatible Elastomers |
| Hardware & Fasteners | Corrosion-Resistant Steel |
| Mounting Components | Heavy-Duty Steel Construction |
Source: J-32-F Fixed Reach Style Top Loading Arm
J-32-F Fixed Reach Style Top Loading Arm Frequently Asked Questions
The J-32-F is used for loading and unloading liquid products in industrial, petroleum, and bulk transfer applications where a fix operating range is suitable.
The J-32-F is supplie without an integrated valve, allowing facilities to utilize external flow control systems based on their operational requirements.
Fixed-reach loading arms offer simple operation, reduced maintenance requirements, reliable performance, and cost-effective installation.
The loader is commonly use in petroleum terminals, chemical facilities, bulk liquid storage terminals, and industrial transfer operations.
Yes. The loading arm can be configur with various connection options, materials, and accessories to meet specific application requirements.
