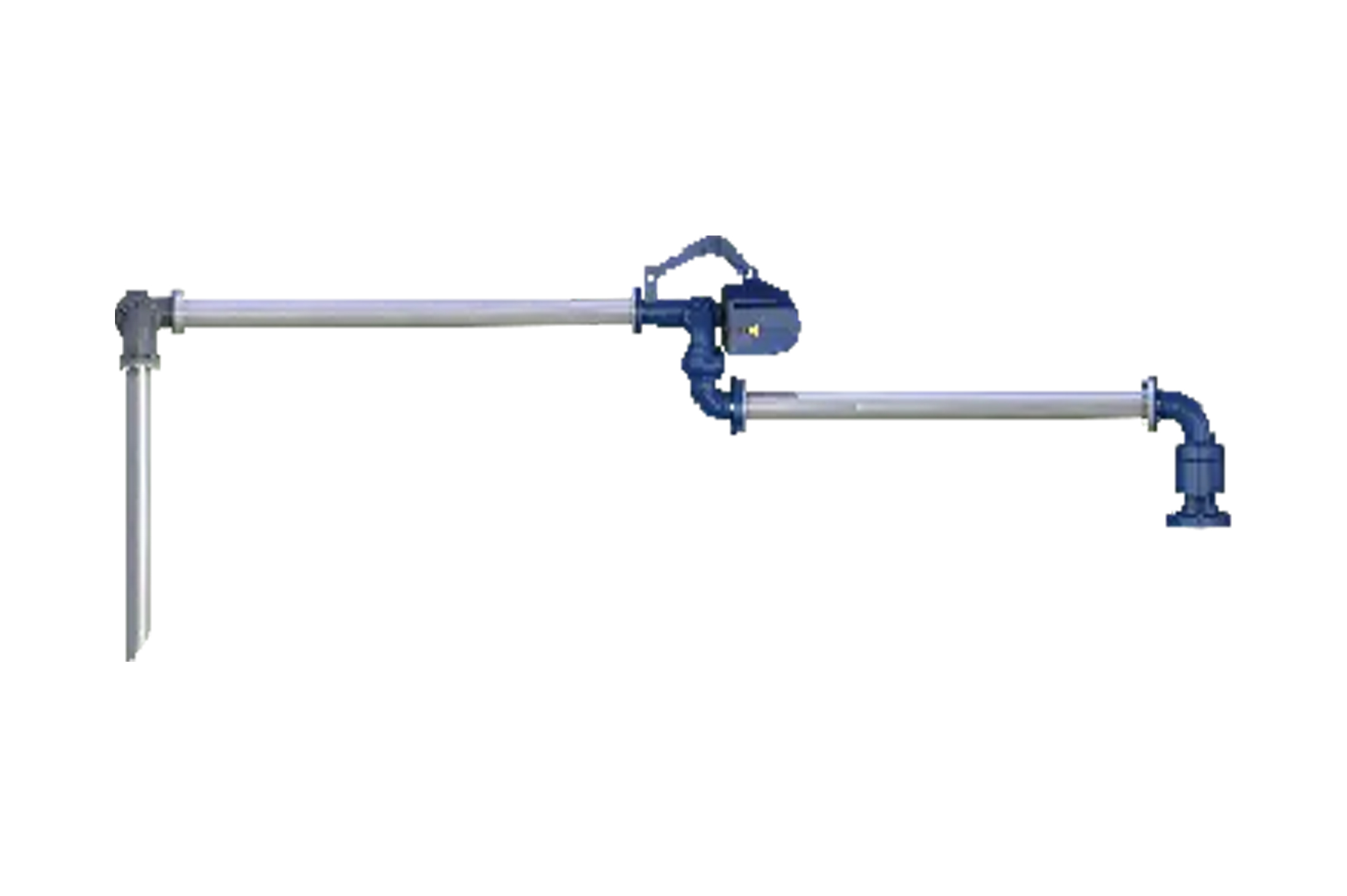

OPW Engineered Systems GT-32-F — Unsupported Boom Arm (top loading)
The GT-32-F Unsupported Boom Arm is designed to provide efficient and dependable top-loading operations for a wide range of liquid transfer applications. Featuring a simple yet versatile boom arm design, this loading arm offers excellent reach and flexibility, making it suitable for loading tank trucks, railcars, and other transport vehicles.
SafeRack supplies and supports OPW loading arms with expert spec guidance from Regional Area Managers who help you select the right size, materials, and end fitting for your terminal. Get configuration help, lead times, and pricing in one call.
OPW Engineered Systems GT-32-F — Unsupported Boom Arm (top loading)
Safety & Compliance Expert
HAVE A QUESTION?
Talk to a Safety Expert Now
OPW Engineered Systems GT-32-F — Unsupported Boom Arm (top loading)
Overview
The GT-32-F Unsupported Boom Arm is engineered for facilities that require a straightforward and reliable top-loading solution. Its unsupported boom configuration provides a broad working range, allowing operators to easily position the loading arm over transport vehicles during loading operations. Designed for use in petroleum, chemical, and bulk liquid transfer facilities, the GT-32-F combines operational flexibility with durable construction. The arm can be configured to suit various loading rack layouts and vehicle types, helping improve loading efficiency while maintaining safe product transfer. Its rugged design supports long-term performance in demanding industrial environments while providing smooth operation and easy handling.
Key Features
- Unsupported boom arm design
- Designed for top-loading applications
- Extended reach and flexible positioning
- Smooth and efficient operation
- Durable industrial construction
- Suitable for tank truck and railcar loading
- Broad working envelope for improved accessibility
- Reliable performance in demanding environments
- Maintenance-friendly design
- Supports a variety of liquid transfer applications
- Compatible with different loading rack configurations
- Long service life with proper maintenance
GT-32-F Unsupported Boom Arm Specifications
| Specification | Details |
|---|---|
| Product Type | Top Loading Arm |
| Model | GT-32-F |
| Configuration | Unsupported Boom Arm |
| Loading Style | Top Loading |
| Operation | Manual |
| Installation Type | Rack Mounted |
| Application | Petroleum, Chemical, and Bulk Liquid Transfer |
| Reach Type | Extended Reach Boom Configuration |
| Service | Loading and Unloading Operations |
| Configuration Options | Customizable Based on Application Requirements |
Materials of construction
| Component | Material |
|---|---|
| Boom Arm Structure | Carbon Steel |
| Secondary Arm Structure | Carbon Steel |
| Swivel Assemblies | Carbon Steel or Aluminum |
| Connection Components | Carbon Steel, Stainless Steel, or Aluminum |
| Seals | Product-Compatible Elastomers |
| Hardware & Fasteners | Corrosion-Resistant Steel |
| Mounting Components | Heavy-Duty Steel Construction |
Sourse: Loading-Arm-configurations
Source: Loading-Arm-Design-Form
GT-32-F Unsupported Boom Arm Frequently Asked Questions
The GT-32-F is use for top-loading liquid products into tank trucks, railcars, and other transport vehicles.
An unsupported boom arm is a loading arm configuration that provides flexibility and reach without requiring additional support structures along the arm length.
The GT-32-F is commonly use in petroleum terminals, chemical processing facilities, bulk liquid storage operations, and industrial transfer facilities.
Yes. The loading arm can be configure with different connection options, materials, and accessories to meet specific operational requirements.
The arm is suitable for petroleum products, fuels, chemicals, and other compatible liquid transfer applications when properly configured.
