“A” Frame Hose Loader AFH-32-F

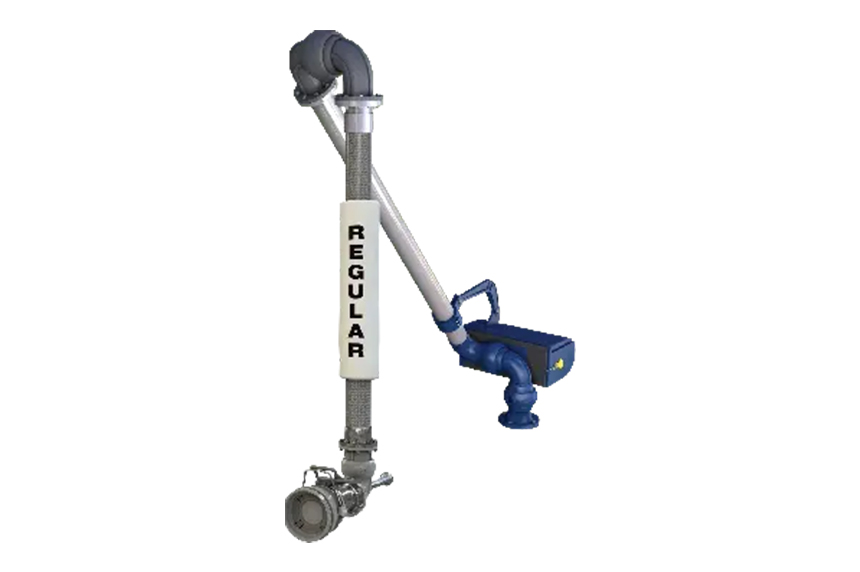

The AFH-32-F A-Frame Hose Loader is a versatile bottom loading solution designed for petroleum transfer and vapor recovery applications. Combining the proven benefits of a conventional A-frame loading arm with the flexibility of a hose-based outboard arm, the AFH-32-F provides enhanced maneuverability, simplified operation, and efficient storage in space-constrained loading terminals.
SafeRack supplies and supports OPW loading arms with expert spec guidance from Regional Area Managers who help you select the right size, materials, and end fitting for your terminal. Get configuration help, lead times, and pricing in one call.
“A” Frame Hose Loader AFH-32-F
Safety & Compliance Expert
HAVE A QUESTION?
Talk to a Safety Expert Now
“A” Frame Hose Loader AFH-32-F
Overview
Unlike rigid-pipe A-frame loaders, the AFH-32-F utilizes a flexible hose on the secondary arm, allowing operators to easily connect to tank truck fittings while accommodating variations in vehicle positioning. Its compact, near-vertical storage profile enables installation of multiple loading arms in close proximity and supports loading operations on either side of the loading bay.
Constructed from carbon steel and aluminum components, the AFH-32-F features durable swivel technology, low-temperature seals, and a robust spring-balanced design. The loader can also be configured as a vapor recovery arm and customized with additional swivel planes for increased flexibility in demanding terminal environments.
Key Features
- Flexible hose outboard arm provides greater maneuverability than rigid-pipe designs.
- Compact A-frame configuration allows close loading arm spacing.
- Stores in a near-vertical position for space-efficient operation.
- 360° rotational movement enables loading from both sides of the loading bay.
- Suitable for petroleum transfer and vapor recovery applications.
- Equipped with 790 EZ Adjust torsion spring balancing system.
- Integral travel stops enhance operational safety and control.
- Available in left-hand, right-hand, upfeed, and downfeed configurations.
- Constructed from carbon steel and aluminum for durability and reduced weight.
- Can be configured with an additional swivel plane for enhanced flexibility.
“A” Frame Hose Loader AFH-32-F Specifications
| Specification | Details |
|---|---|
| Product Type | A-Frame Hose Bottom Loading Arm |
| Available Sizes | Typically 4″ Loading System Configuration |
| Working Pressure | Based on selected accessories and system configuration |
| Test Pressure | Available according to applicable standards and project requirements |
| Temperature Range | Suitable for low-temperature service with fluorocarbon seals |
| Design Type | A-Frame Hose Loader with Flexible Outboard Arm |
| Construction | Carbon Steel and Aluminum Construction with Flexible Hose Drop |
| Compliance | Designed for petroleum transfer and vapor recovery applications |
| Maintenance | Adjustable spring balance system with serviceable swivel components |
| Application Industries | Petroleum Terminals, Fuel Distribution, Tank Truck Loading, Vapor Recovery Systems, Bulk Liquid Transfer |
Materials of construction
| Component | Material |
|---|---|
| Flange Options | TTMA Flanged Connections |
| Bearing Module | Heavy-Duty Swivel Joint Assembly with Torsion Spring Balance |
Source: afh-32-f
AFH-32-F Frequently Asked Questions
The AFH-32-F is designed for bottom loading petroleum products and can also be configured for vapor recovery operations at loading terminals.
The flexible hose outboard arm provides greater flexibility during connection and accommodates variations in vehicle positioning more easily than rigid-pipe systems.
Yes. Its 360° rotational capability allows loading operations on either side of the loading rack.
The loader can be equipped with either braided stainless-steel hose or Rackmaster composite hose depending on the application requirements.
Yes. The AFH-32-F is commonly configured as a vapor recovery loading arm and is widely used in fuel terminal operations.
