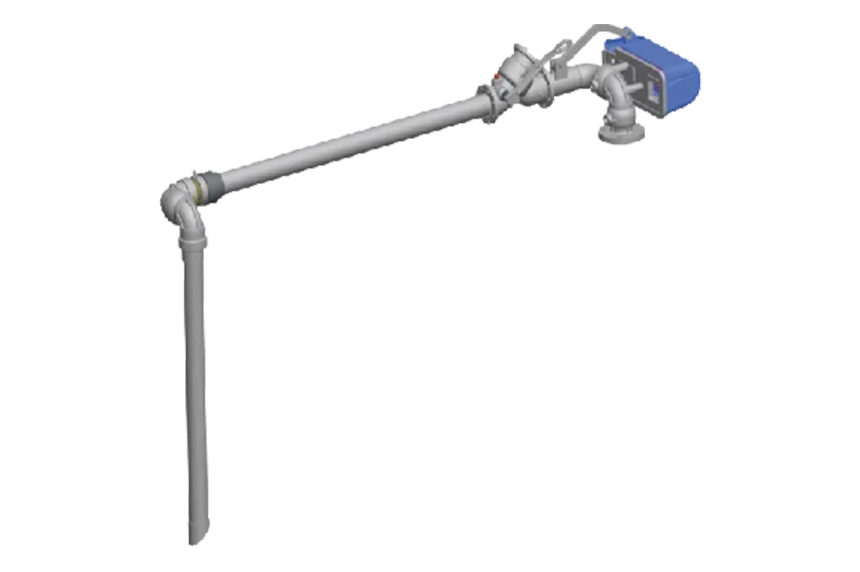

The A-32-F Slide Sleeve Arm is a cost-effective top loading arm designed for loading fuel oil, petroleum products, and other bulk liquids into tank trucks. Featuring a telescoping slide-sleeve assembly, the arm can extend and retract to accommodate variations in the distance between the loading rack and the vehicle, ensuring accurate positioning without requiring precise truck alignment.
SafeRack supplies and supports OPW loading arms with expert spec guidance from Regional Area Managers who help you select the right size, materials, and end fitting for your terminal. Get configuration help, lead times, and pricing in one call.
OPW Engineered Systems A-32-F
Safety & Compliance Expert
HAVE A QUESTION?
Talk to a Safety Expert Now
OPW Engineered Systems A-32-F
Overview
Widely used in small bulk plants and terminal facilities, the A-32-F offers a practical and time-tested solution for top loading applications. Its telescoping primary arm simplifies operation and allows operators to position the drop tube quickly and efficiently. The loading arm is designed for medium-duty service and supports flow rates up to 15 ft/sec (4.5 m/sec).
Available in multiple sizes and connection configurations, the A-32-F can be customized to suit specific terminal requirements while maintaining reliable performance and ease of operation.
Key Features
- Telescoping slide-sleeve design accommodates varying truck positions.
- Designed for top loading fuel oil and petroleum products.
- Cost-effective solution for small bulk plants and terminal facilities.
- Medium-duty construction suitable for routine loading operations.
- Accurate drop tube positioning without precise vehicle spotting.
- Available in 2″, 3″, and 4″ sizes. Supports flow rates up to 15 ft/sec (4.5 m/sec).
- Typically supplied with a deadman-type loading valve.
- Multiple inlet connection options available.
- Customizable configurations to meet application requirements.
OPW Engineered Systems a-32-f Specifications
| Specification | Details |
|---|---|
| Product Type | Slide Sleeve Top Loading Arm |
| Available Sizes | 2″, 3″, and 4″ |
| Working Pressure | Based on configuration and application requirements |
| Test Pressure | Available according to project specifications and industry standards |
| Temperature Range | Dependent on product and seal selection |
| Design Type | Telescoping Slide Sleeve Loading Arm |
| Construction | Medium-Duty Loading Arm with Extendable Primary Arm |
| Compliance | Manufactured for petroleum and bulk liquid loading applications |
| Maintenance | Simple mechanical design with easy inspection and servicing |
| Application Industries | Petroleum Terminals, Fuel Distribution, Bulk Plants, Tank Truck Loading Operations |
Materials of construction
| Component | Material |
|---|---|
| Flange Options | 150 ANSI Flanged Inlet (3″ and 4″ Models) |
| Bearing Module | Precision Swivel and Slide Sleeve Assembly |
Source: a-32-f
a-32-f Frequently Asked Questions
The A-32-F is designed for top loading fuel oil, petroleum products, and other bulk liquids into tank trucks at terminals and bulk plants.
The telescoping slide sleeve allows the arm to extend and retract, compensating for variations in truck positioning and simplifying loading operations.
The A-32-F is available in 2″, 3″, and 4″ sizes to suit different flow and loading requirements.
The loading arm is designed for flow rates up to 15 ft/sec (4.5 m/sec). Higher flow rates may cause the inner tube to extend beyond the intended loading position.
Yes. The telescoping design and available connection options make it suitable for facilities that load various truck configurations.
