OPW Engineered Systems C-32-F — Scissor Type Arm (with valve)

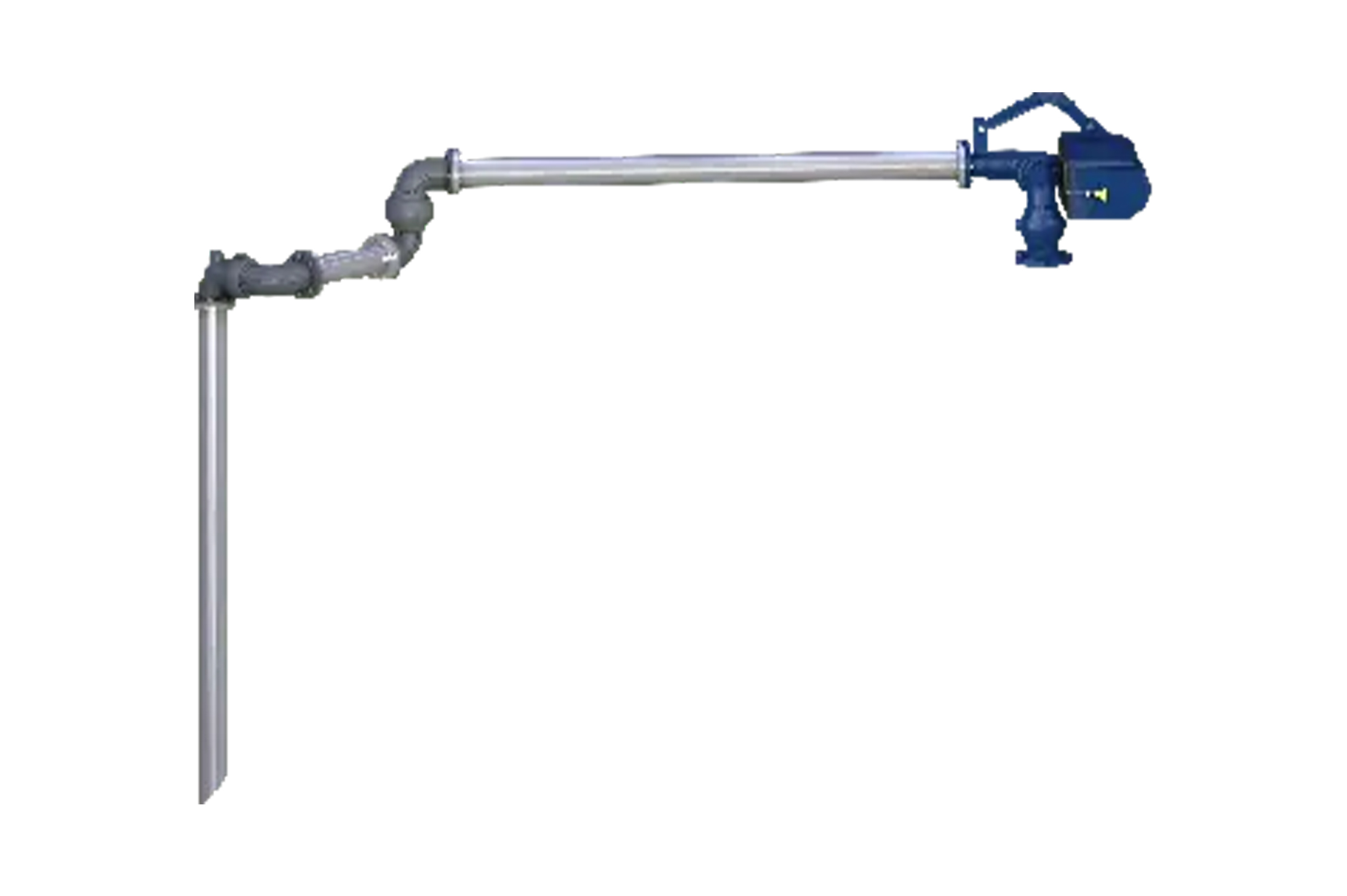

The C-32-F Scissor Type Loading Arm is designed to provide safe, efficient, and controlled liquid transfer for loading and unloading operations. Featuring an articulated scissor-arm configuration with an integrated valve, this loading arm offers enhanced flexibility, precise positioning, and dependable flow control for a variety of industrial applications.
SafeRack supplies and supports OPW loading arms with expert spec guidance from Regional Area Managers who help you select the right size, materials, and end fitting for your terminal. Get configuration help, lead times, and pricing in one call.
OPW Engineered Systems C-32-F — Scissor Type Arm (with valve)
Safety & Compliance Expert
HAVE A QUESTION?
Talk to a Safety Expert Now
OPW Engineered Systems C-32-F — Scissor Type Arm (with valve)
Overview
The C-32-F Scissor Type Loading Arm combines the versatility of a scissor-arm design with the convenience of an integrated valve system. Its articulated structure allows operators to position the arm within a broad working envelope, making it easier to accommodate varying vehicle heights and connection locations. The built-in valve enables direct flow control from the loading arm, helping improve operational efficiency and simplify product transfer procedures. Designed for petroleum, chemical, and bulk liquid handling applications, the C-32-F provides reliable performance while maintaining ease of operation and maintenance. Its durable construction and flexible movement make it well suited for loading rack installations and industrial transfer facilities where accessibility and control are critical.
Key Features
- Scissor-type articulated loading arm design
- Integrated valve for flow control
- Wide working envelope for improved accessibility
- Smooth and controlled operation
- Flexible positioning for varying loading points
- Durable industrial construction
- Designed for loading and unloading applications
- Suitable for petroleum and liquid transfer operations
- Maintenance-friendly design
- Reliable performance in demanding environments
- Supports efficient loading rack operations
- Long service life with proper maintenance
C-32-F Scissor Type Loading Arm Specifications
| Specification | Details |
|---|---|
| Product Type | Scissor Type Loading Arm |
| Model | C-32-F |
| Configuration | Articulated Scissor Arm |
| Valve Configuration | Integrated Valve |
| Application | Liquid Transfer and Loading Operations |
| Operation | Manual |
| Installation Type | Rack Mounted |
| Service | Loading and Unloading |
| Reach Type | Flexible Working Envelope |
| Configuration Options | Customizable Based on Application Requirements |
Materials of construction
| Component | Material |
|---|---|
| Boom Arm Structure | Carbon Steel |
| Swivel Assemblies | Carbon Steel or Aluminum |
| Integrated Valve Assembly | Carbon Steel, Stainless Steel, or Aluminum |
| Connection Components | Carbon Steel, Stainless Steel, or Aluminum |
| Seals | Product-Compatible Elastomers |
| Hardware & Fasteners | Corrosion-Resistant Steel |
| Mounting Components | Heavy-Duty Steel Construction |
Sourse: Top Loading Design Form
Source: 3000 Series Installation Operations Manual
C-32-F Scissor Type Loading Arm Frequently Asked Questions
The C-32-F is designed for loading and unloading liquid products in petroleum terminals, chemical facilities, and industrial transfer operations.
The scissor-arm design provides increased flexibility, a larger working envelope, and easier positioning during loading operations.
The integrated valve allows operators to control product flow directly from the loading arm, improving operational efficiency and convenience.
The loading arm is commonly used in petroleum distribution, chemical processing, bulk liquid storage, and industrial transfer facilities.
Yes. The articulated scissor-arm configuration allows the loading arm to adapt to varying connection points and vehicle positions.
