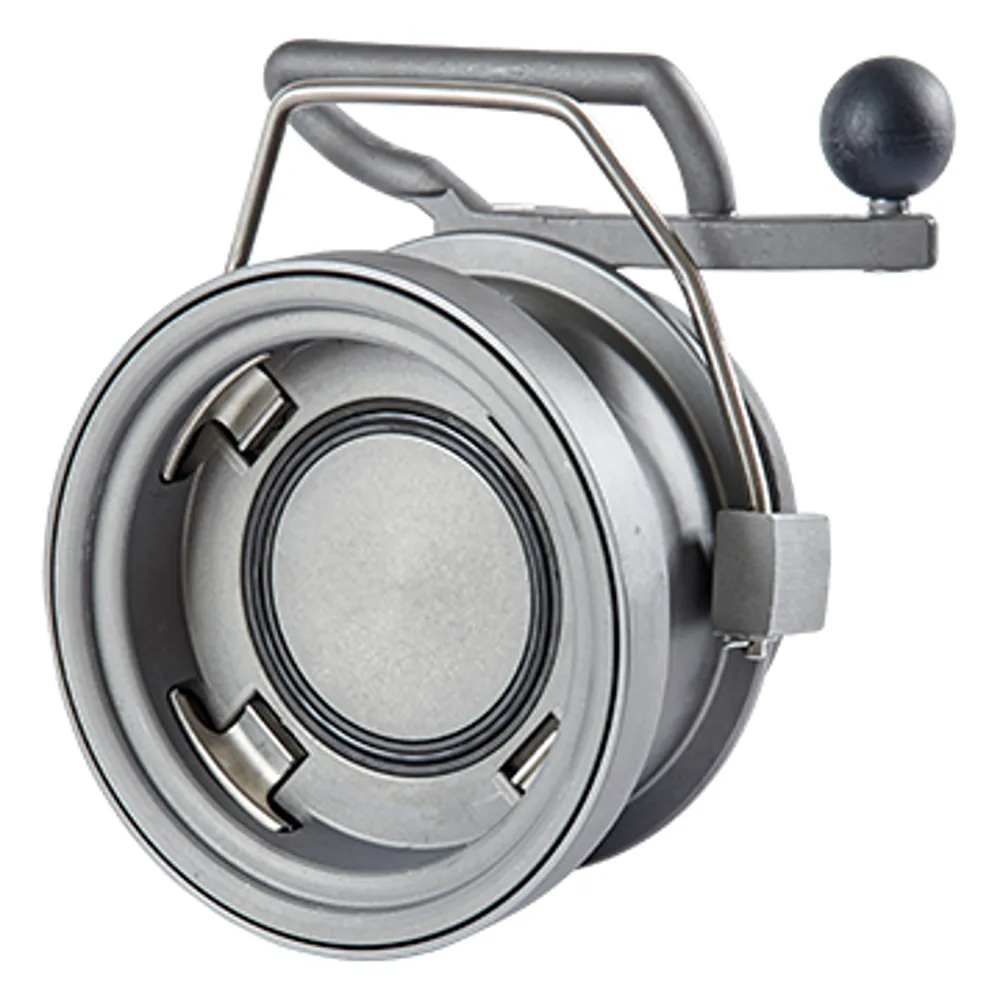

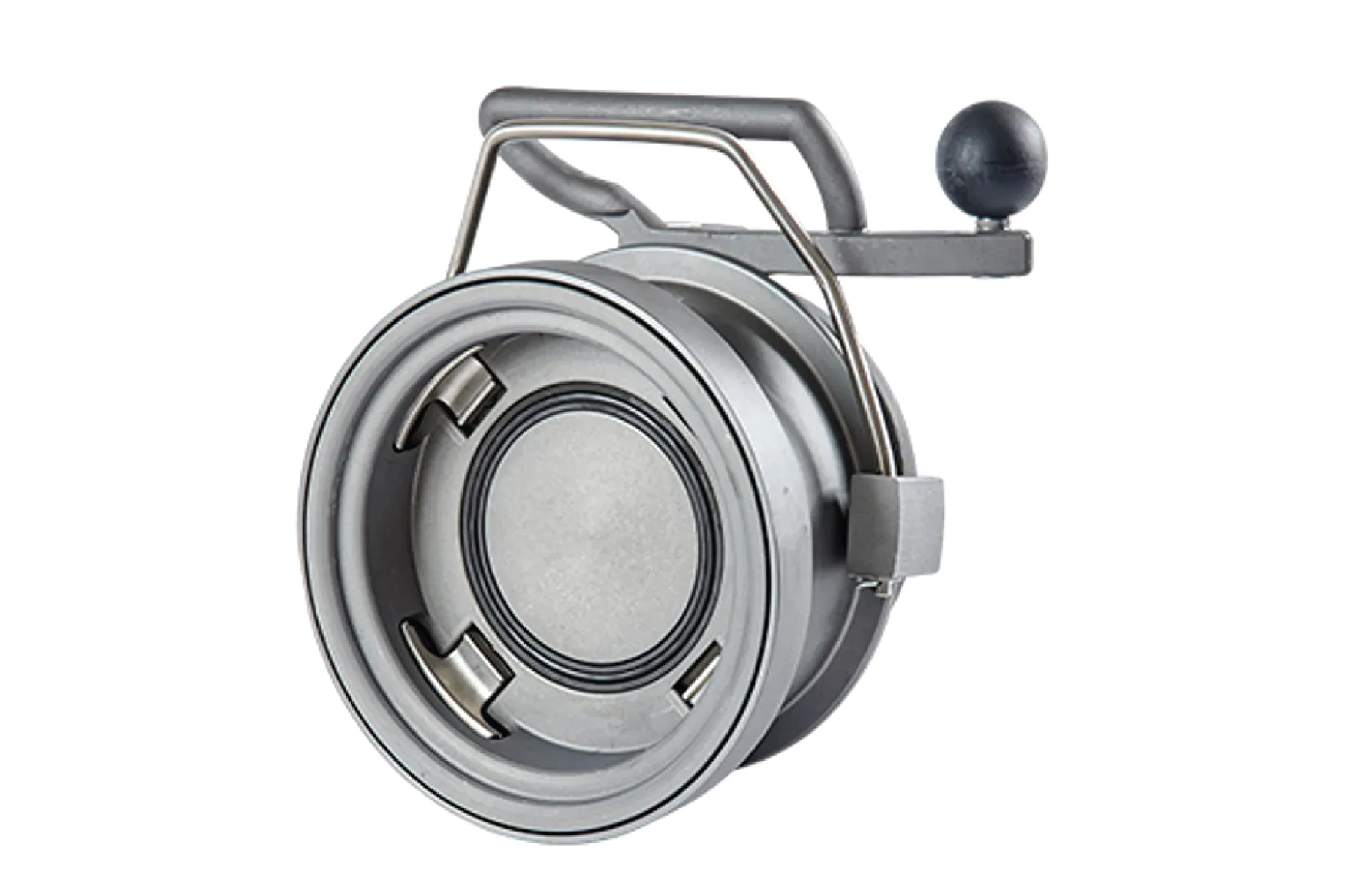

Emco Wheaton J0453
The J0453 MK II Tank Truck Coupling represents the next generation of API couplings, engineered to provide enhanced safety, durability, and operational efficiency for fuel loading and unloading applications. Developed through collaboration between EMCO Wheaton’s global engineering teams and industry experts, this advanced coupling builds upon the proven performance of previous models while incorporating significant design improvements based on customer feedback.
SafeRack supplies Emco Wheaton swivel joints, providing expert support to help you choose the right configuration, materials, and sealing options for your application. Our team assists with specifications, compatibility, and system integration to ensure safe, efficient, and reliable fluid transfer operations. Get technical guidance, lead times, and pricing support, all in one place.
Emco Wheaton J0453
Safety & Compliance Expert
HAVE A QUESTION?
Talk to a Safety Expert Now
Emco Wheaton J0453
Overview
Designed for demanding terminal environments, the J0453 MK II delivers superior handling, improved sealing performance, and reduced maintenance requirements. Its lightweight construction and ergonomic design help minimize operator fatigue while improving safety and ease of use during daily operations.
Suitable for a wide range of fuel and chemical transfer applications, the coupling is available with multiple sealing options to ensure compatibility with different products, including aggressive chemicals such as MTBE. With enhanced durability, improved coupling performance, and extended service life, the J0453 MK II sets a new benchmark for API loading and unloading operations.
Key Features
- Next-generation 4″ API coupling designed for tank truck loading and unloading operations.
- Enhanced heat-treated components provide greater strength and durability.
- Optimized spring design improves coupling performance and reliability.
- Lightweight construction weighing only 7.1 kg (15.6 lb) reduces operator fatigue.
- Ergonomic handle design enhances comfort, control, and safety during operation.
- Improved sealing system minimizes leakage risks and enhances product containment.
- Compatible with a wide range of fuels and aggressive chemical products.
- Multiple seal material options available for application-specific requirements.
- Designed to reduce maintenance downtime by up to 50%.
- Backed by a full range of original spare parts and maintenance kits.
J0543 Tank Truck Couplings Specifications
| Specification | Details |
|---|---|
| Product Type | 4″ API Tank Truck Coupling |
| Available Sizes | 4″ API Connection |
| Working Pressure | Maximum 230 psi |
| Test Pressure | Available upon request according to applicable standards |
| Temperature Range | Dependent on selected seal material and application requirements |
| Design Type | Lightweight API Coupling with Enhanced Sealing System |
| Construction | Heat-treated metallic body with ergonomic operating handle |
| Compliance | Designed for API loading and unloading applications within the petrochemical and fuel handling industries |
| Maintenance | Reduced maintenance requirements with service kits and replacement parts available |
| Application Industries | Fuel Distribution, Petrochemical, Chemical Processing, Bulk Liquid Transport, Tank Truck Loading Terminals |
Materials of construction
| Component | Material |
|---|---|
| Flange Options | 4″ API Tank Truck Flange Connection |
| Bearing Module | Precision Mechanical Coupling Mechanism |
| Seal Options | FKM (Viton), NBR (Buna), GFLT (Low Temperature Viton), FFKM, EPDM |
Source: Emco Wheaton J0453 data sheet
Source: Emco Wheaton Tank Truck Couplings catalog
J0453 Frequently Asked Questions
The J0453 MK II is a 4″ API coupling designed for safe and efficient loading and unloading of fuels and liquid products in tank truck applications.
The coupling features enhanced heat treatment, improved spring performance, reduced weight, improved ergonomics, upgraded sealing performance, and significantly lower maintenance requirements.
The coupling can be supplied with FKM (Viton), NBR (Buna), GFLT, FFKM, and EPDM seals depending on the product being handled.
Yes. The FFKM seal option is specifically designed for demanding chemical applications, including aggressive products such as MTBE.
The J0453 MK II has a maximum working pressure of 230 psi and is designed to connect to a standard 4″ API tank truck flange.
