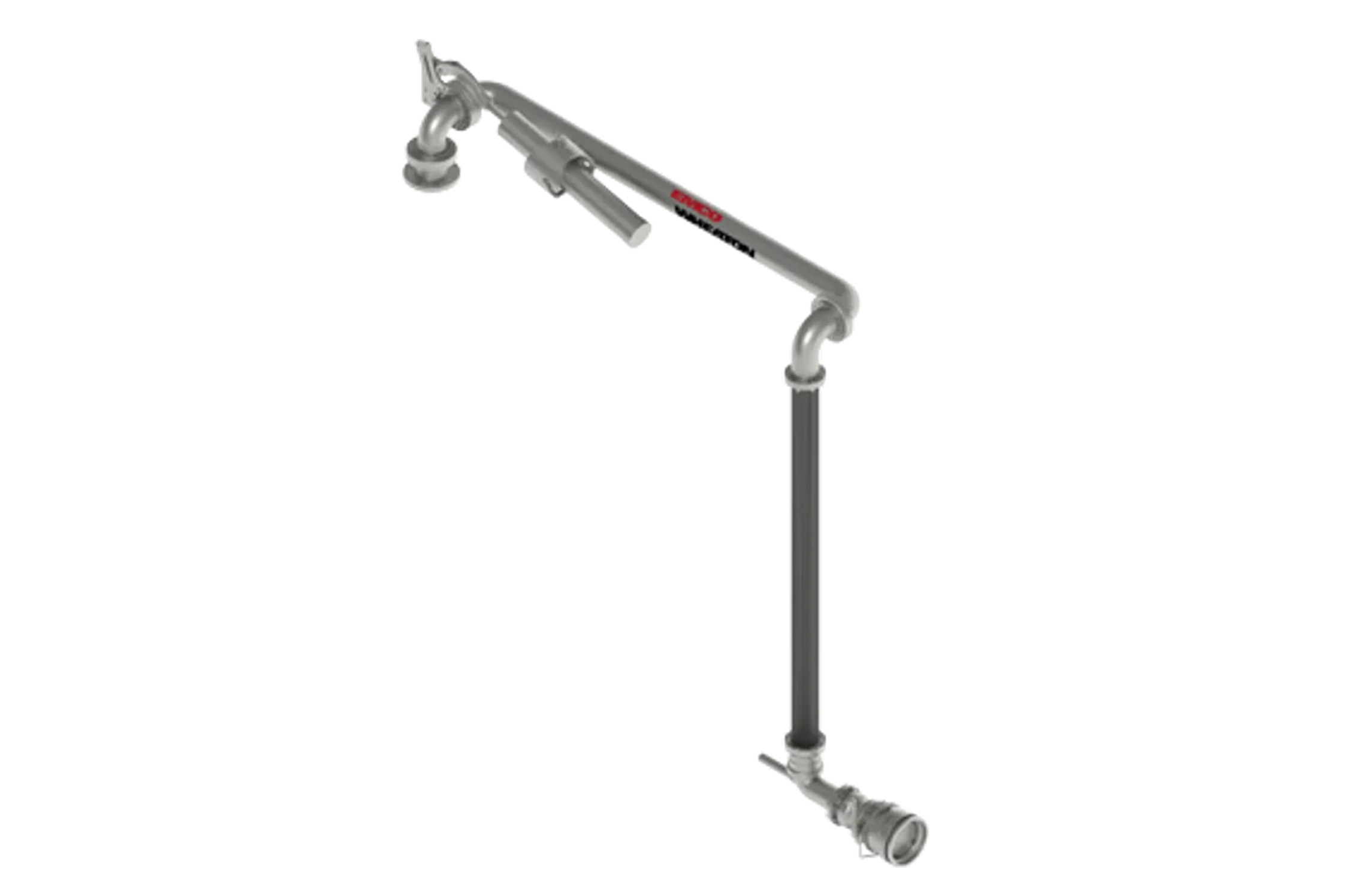

Emco Wheaton E2022 / E2024 — Bottom Transfer Loaders (US, extended reach)
Bottom Transfer Loading Arms are specially engineered for bottom loading and unloading of road and rail tankers, particularly in applications where vehicles cannot be precisely positioned. The system is designed for handling mineral oils, chemicals, fuels, propane, and industrial liquids, offering high flexibility and safe operation in demanding terminal environments.
SafeRack supplies Emco Wheaton swivel joints, providing expert support to help you choose the right configuration, materials, and sealing options for your application. Our team assists with specifications, compatibility, and system integration to ensure safe, efficient, and reliable fluid transfer operations. Get technical guidance, lead times, and pricing support, all in one place.
Emco Wheaton E2022 / E2024 — Bottom Transfer Loaders (US, extended reach)
Safety & Compliance Expert
HAVE A QUESTION?
Talk to a Safety Expert Now
Emco Wheaton E2022 / E2024 — Bottom Transfer Loaders (US, extended reach)
Overview
They are designed for handling mineral oils, chemical products, diesel, gasoline, propane, and other industrial liquids, and are suitable for both road and rail tanker applications.
For heavy connection piping, the system can be configured with a 6 D2000 swivel arrangement, supported by a parallel bar and gas spring balancing system to ensure smooth handling and reduced operator effort.
Key Features
- Designed for bottom loading/unloading of road and rail tankers
- Ideal for applications with inaccurate vehicle spotting
- Heavy-duty swivel and balancing system for effortless operation
- Smooth spring cylinder balancing with up to 50° vertical movement
- Extended reach without additional external support
- Multiple seal and elastomer options for different media
- Suitable for oils, chemicals, fuels, propane, and LNG (cryogenic applications available)
- High flexibility with multiple accessory and configuration options
- Robust construction for demanding industrial environments

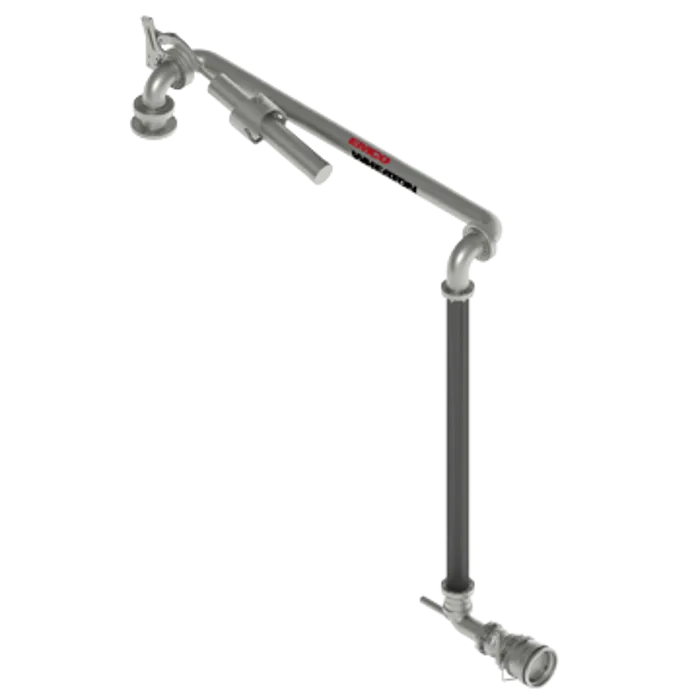

E2022 Bottom Transfer Loaders Specifications
| Specification | Details |
|---|---|
| Size Range | 2”, 3”, 4” |
| Arm Construction Materials | Carbon Steel / Stainless Steel / Low-Temp Carbon Steel / European materials |
| Accessories | Ball valve, parallel bar, gas spring device, emergency release system, orientation switch, stand post, locking device, junction box, heating systems |
| ROM (Operating Range) | +20°C to -30°C |
| Seal Options | Viton / Perbunan / PTFE / FEP / EPDM |
| Balancing Method | Spring Cylinder |
| Design Pressure | 16 bar to 40 bar |
| Design Temperature | -50°C to +250°C |
| Applications | Truck & rail loading, diesel, gasoline, chemical, propane, oil |
| Part Numbers | E2824, E2839 |
Materials of construction
| Component | Material |
|---|---|
| Arm Structure | Carbon Steel / Stainless Steel / Low Temp Carbon Steel |
| Swivel System | D2000 swivel joints (various configurations: Hi-temp / LT / SST options) |
| Balancing System | Gas spring + parallel bar system |
| Accessories | Carbon steel / stainless steel / engineered industrial materials |
| Seals | Viton / Perbunan / PTFE / FEP / EPDM |
Sourse: Emco Wheaton E2022 data sheet
Source: Emco Wheaton Loading Arm Systems catalog
E2022 Frequently Asked Questions
It is used for safe and flexible bottom loading and unloading of road and rail tankers, especially where vehicle positioning is not precise.
Yes, it is designed for both road tanker and railcar bottom loading operations.
It supports diesel, gasoline, chemicals, propane, oils, and cryogenic LNG in specialized configurations.
It uses a spring cylinder balancing system, with optional gas spring and parallel bar support for heavier configurations.
Europe versions support -50°C to +250°C, while US versions typically operate from 5°F to 266°F depending on configuration.
Related Products
Emco Wheaton J0451 — Fuel Line Coupler
Emco Wheaton J0451 / J0452 — API Bottom Loading Couplers (previous generation)
Emco Wheaton J0451 — Fuel Line Coupler
Emco Wheaton J0451 / J0452 — API Bottom Loading Couplers (previous generation)
Emco Wheaton E2112 — Variable Reach Loader
Emco Wheaton E2112 — Variable Reach Loader (US / StandardLine) / E2806/E2807/E2814/E2815 (EU)
Emco Wheaton E2121 — A-Frame Bottom Loader
Emco Wheaton E2121 — High-Pressure A-Frame Loader (LPG / Anhydrous Ammonia)
Emco Wheaton E2123 — Bottom Transfer Loading Arms
Emco Wheaton E2123 — MYR Linkage A-Frame Loader
Emco Wheaton E2630 — Top Loading Arm
Emco Wheaton E2630 — Top Loading Arm with Vapor Recovery (long reach, European / international)
Emco Wheaton J0453 — Tank Truck Couplings
Emco Wheaton J0453 — API Bottom Loading Coupler (current flagship)
Emco Wheaton E2632 — Parallel Loading Arm with Vapor Recovery
Emco Wheaton E2632 — Parallel Loading Arm with Vapor Recovery
Emco Wheaton E2033 — Bottom Transfer Loading Arm
Emco Wheaton E2033 — Bottom Transfer Loading Arm (US) / E2824, E2839 (EU)
Emco Wheaton E2033 — Bottom Transfer Loading Arm
Emco Wheaton E2033 — Bottom Transfer Loading Arm (US) / E2824, E2839 (EU)

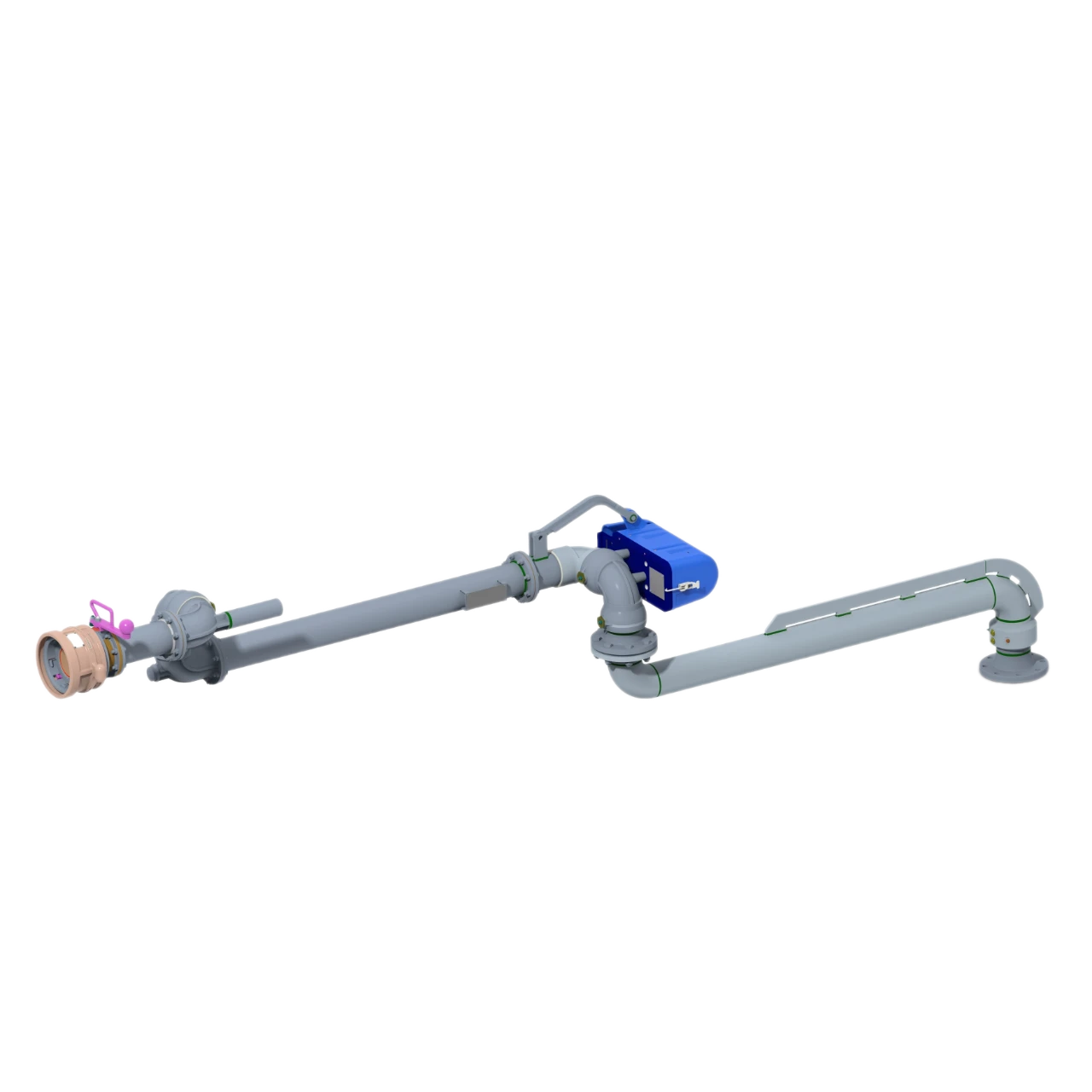

G-32-F Unsupported Boom-Type Bottom Loader
