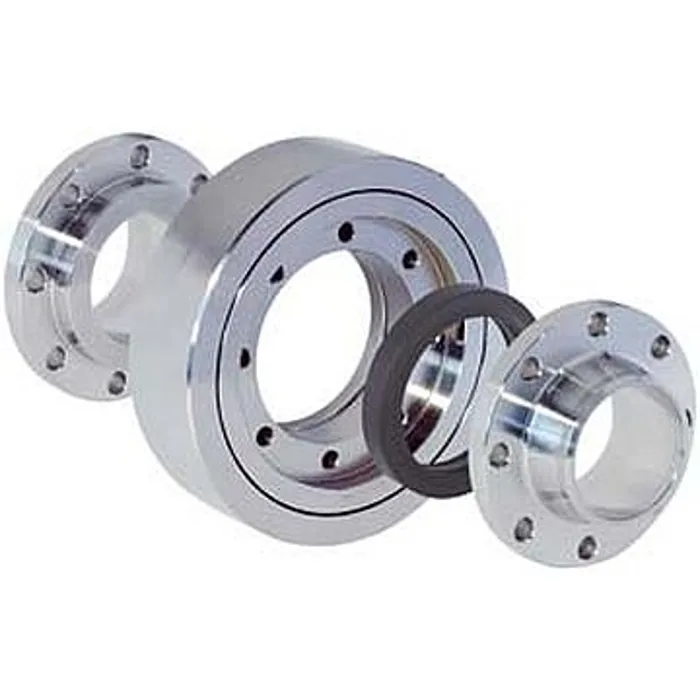

Swivel Joint for Chemical Industry – D2000
The D2000 Swivel Joint is engineered to enhance the efficiency and reliability of liquid transfer operations across a wide range of industrial sectors. Designed for demanding environments, it is suitable for applications in the chemical, food processing, and petroleum industries where durability and performance are essential.
SafeRack supplies Emco Wheaton swivel joints, providing expert support to help you choose the right configuration, materials, and sealing options for your application. Our team assists with specifications, compatibility, and system integration to ensure safe, efficient, and reliable fluid transfer operations. Get technical guidance, lead times, and pricing support, all in one place.
Swivel Joint for Chemical Industry – D2000
Safety & Compliance Expert
HAVE A QUESTION?
Talk to a Safety Expert Now

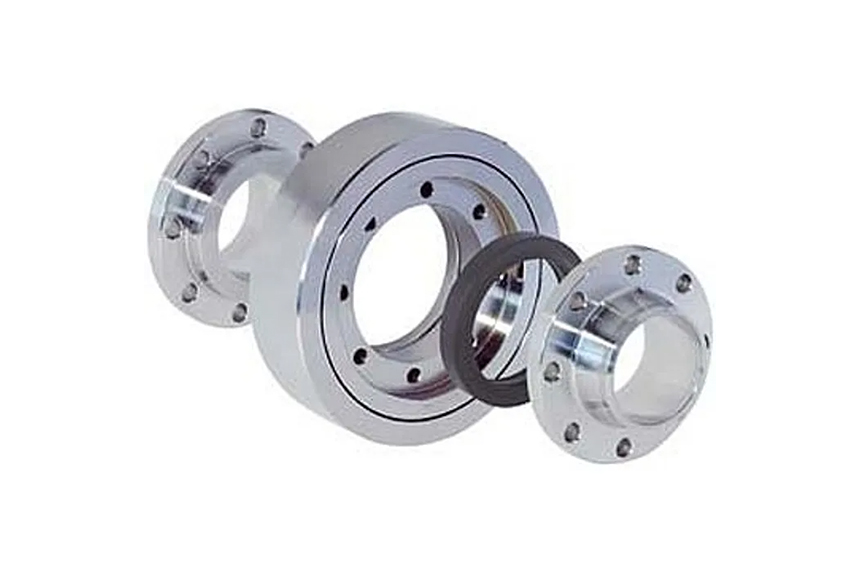

Swivel Joint for Chemical Industry – D2000
Overview
Its modular construction allows users to configure the swivel joint according to specific operational requirements. Featuring an advanced sandwich-design structure, the bearing assembly is isolated from the product flow path, helping to improve operational safety, reduce wear, and simplify maintenance procedures.
The D2000 is compatible with a broad range of media and can operate under extreme conditions, handling temperatures from -50°C to +250°C and pressures up to 40 bar (580 psi). This versatility makes it an ideal solution for challenging fluid handling applications.
Key Features
- Low-profile, space-saving design
- Easy inspection and maintenance
- Extended service life with reduced downtime
- High load-bearing capacity
- Innovative sandwich construction for enhanced protection
- Compliant with TA Luft emission standards
- Suitable for a wide range of industrial liquids and chemicals
- Flexible configuration options for application-specific requirements
D2000 Swivel Joint Specifications
| Specification | Details |
|---|---|
| Product Type | Industrial Swivel Joint |
| Available Sizes | DN50 (2″), DN80 (3″), DN100 (4″), DN150 (6″), DN160 (6.3″), DN180 (7″), DN200 (8″) |
| Working Pressure | Up to 40 bar (580 psi) |
| Test Pressure | Up to 40 bar (580 psi) |
| Temperature Range | -45°C to +250°C (-49°F to +482°F)* |
| Design Type | Sandwich Design |
| Construction | Split-Flanged Design |
| Compliance | TA Luft Environmental Regulation |
| Maintenance | Replaceable bearing and sealing modules |
| Application Industries | Chemical, Food Processing, Mineral Oil, and Industrial Fluid Transfer |
Materials of construction
| Component | Material |
|---|---|
| Flange Options | Carbon Steel / Low-Temperature Steel / Stainless Steel / Aluminum |
| Bearing Module | Nickel-Plated Carbon Steel |
| Seal Options | Perbunan (NBR) / Viton / FEP / EPDM / Fluoroloy K / PTFE |
Additional material configurations may be available depending on application requirements and transferred media.
Sourse: Emco Wheaton D2000 data sheet
*Temperature range depends on the selected sealing material.
Source: Emco Wheaton Loading Arm Systems catalog
D2000 Frequently Asked Questions
The D2000 Swivel Joint is designed for efficient and safe transfer of liquids in industries such as chemical processing, mineral oil, and food applications. It helps optimize fluid handling in loading and unloading systems.
The D2000 can operate in extreme temperature conditions ranging from -45°C to +250°C (-49°F to +482°F), depending on the selected sealing material.
The swivel joint is rated for a maximum working pressure of up to 40 bar (580 psi), making it suitable for high-demand industrial applications.
The D2000 is available with multiple material options including carbon steel, low-temperature steel, stainless steel, and aluminum flanges. It also offers various sealing materials such as Viton, EPDM, PTFE, and FEP.
Yes, the D2000 is designed for easy maintenance. Its bearing module and seals can be replaced without fully disassembling the loading arm, reducing downtime and maintenance costs.
