Parallel Loading Arm – E2632

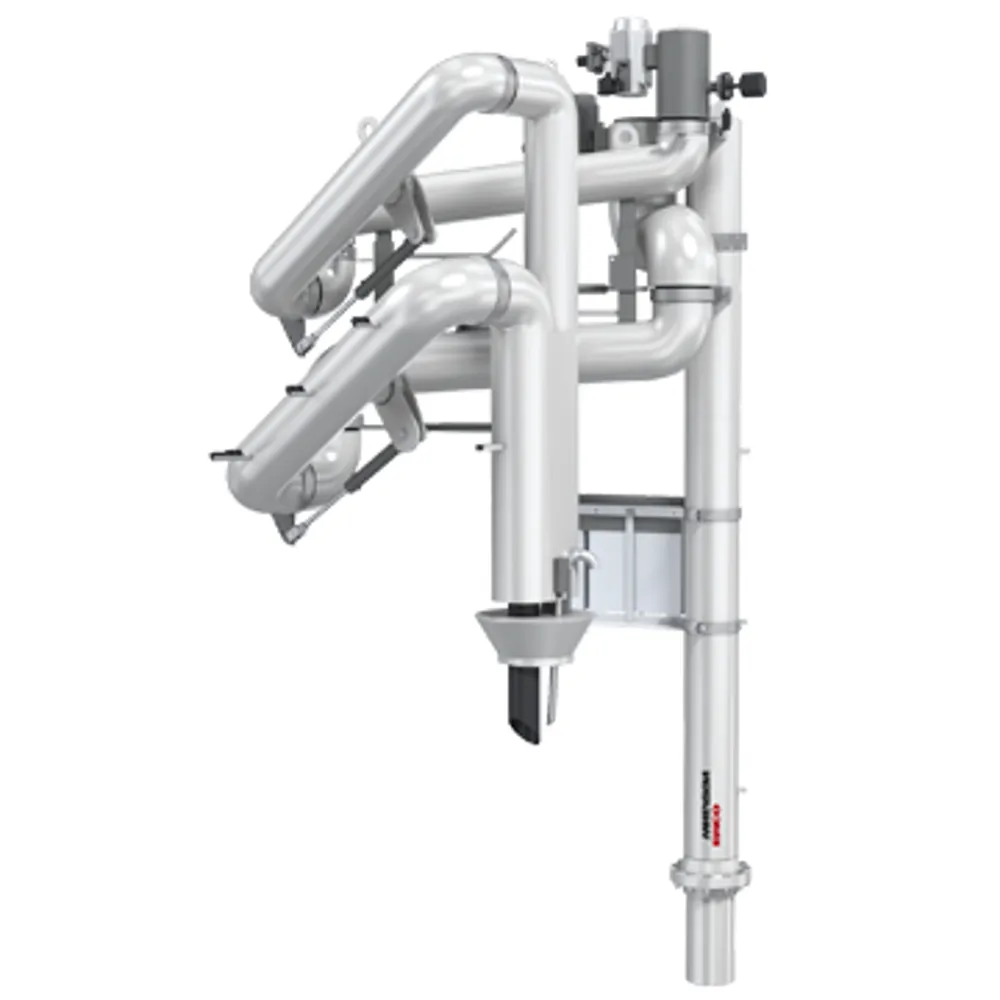

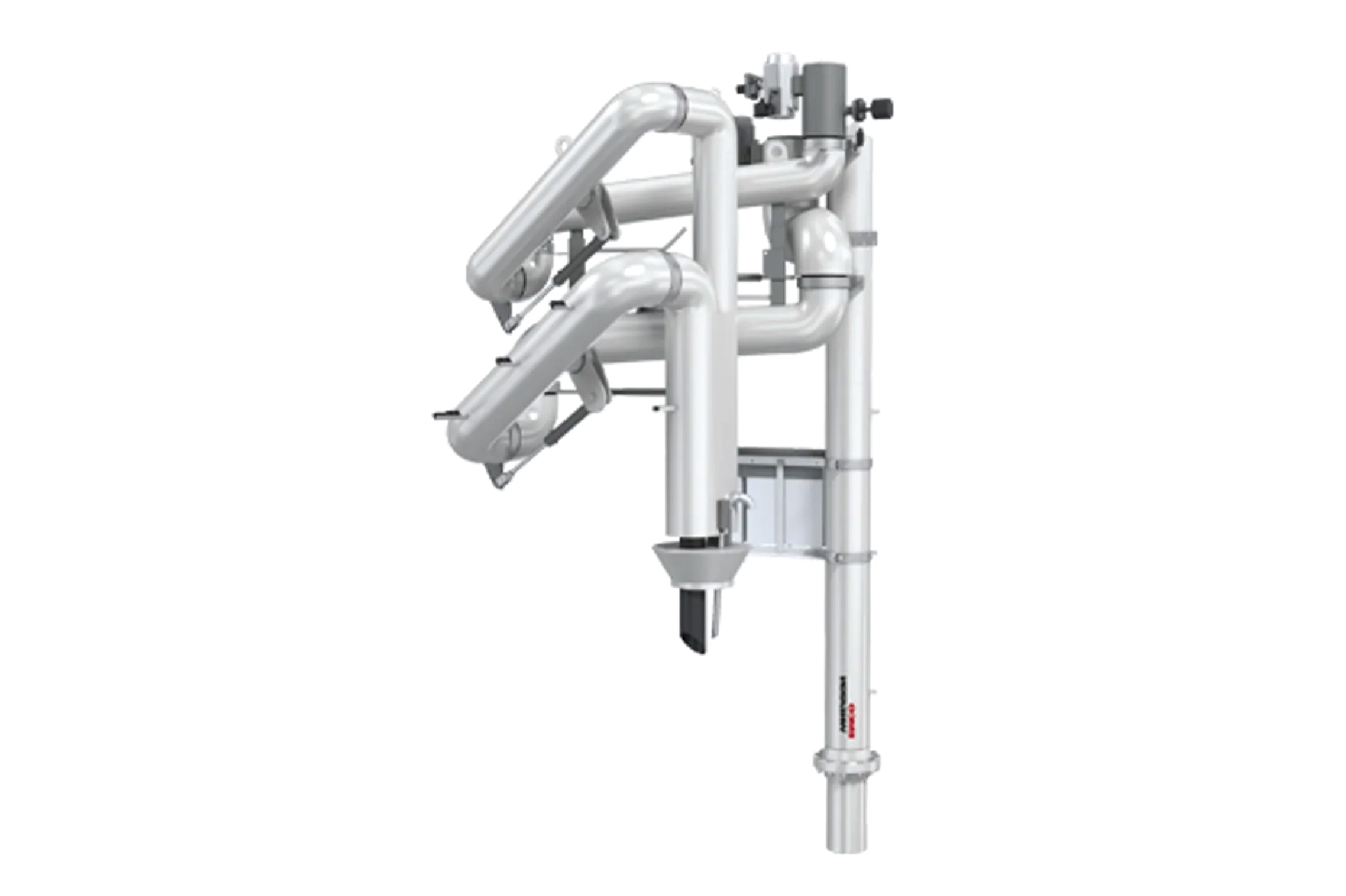

The E2632 Parallel Loading Arm is a specialized top-loading solution designed for the safe transfer of hydrocarbons, chemicals, and other aggressive or hazardous media requiring vapor recovery. The system combines two boom loading arms operating in parallel, allowing simultaneous product transfer and vapor return through a highly efficient and maneuverable design.
SafeRack supplies Emco Wheaton swivel joints, providing expert support to help you choose the right configuration, materials, and sealing options for your application. Our team assists with specifications, compatibility, and system integration to ensure safe, efficient, and reliable fluid transfer operations. Get technical guidance, lead times, and pricing support, all in one place.
Parallel Loading Arm – E2632
Safety & Compliance Expert
HAVE A QUESTION?
Talk to a Safety Expert Now
Parallel Loading Arm – E2632
Overview
Unlike conventional vapor recovery systems that rely on flexible hoses, the E2632 utilizes a dedicated vapor return line equipped with swivel joints. This design eliminates pockets and flow traps, preventing the accumulation of condensed vapors and reducing the risk of emissions when the loading arm is not in operation.
By loading through a sealed manhole, the E2632 helps protect operators and the environment while supporting compliance with environmental regulations and air-quality standards. The vapor recovery system also improves terminal profitability by capturing and returning product vapors that would otherwise be lost during loading operations.
Key Features
- Parallel arm design enables simultaneous product transfer and vapor recovery.
- Ideal for hydrocarbons, gasoline, chemicals, and aggressive media.
- Vapor return system captures product vapors and reduces emissions.
- Sealed loading operation enhances operator and environmental safety.
- Product and vapor lines remain free from pockets and condensate traps.
- Highly maneuverable design operates similarly to a single loading arm.
- Swivel-joint vapor line eliminates the limitations of flexible hose systems.
- Supports compliance with environmental regulations and air-quality standards.
- Optional heating capability available for both product and vapor lines.
- Piggable design available for easier cleaning and maintenance.
Parallel Loading Arm – E2632Specifications
| Specification | Details |
|---|---|
| Product Type | Parallel Loading Arm with Vapor Recovery |
| Available Sizes | Product DN50–DN150; Vapor DN50–DN100 |
| Working Pressure | Configured according to application and system requirements |
| Test Pressure | Available upon request according to project specifications |
| Temperature Range | -50°C to +50°C (-58°F to +122°F) |
| Design Type | Dual-Boom Parallel Loading Arm with Integrated Vapor Return Line |
| Construction | Parallel articulated loading arm system with dedicated product and vapor pathways |
| Compliance | Designed to meet international standards, WHG, VbF, and applicable environmental regulations |
| Maintenance | Low-maintenance design with pocket-free flow paths and serviceable swivel joints |
| Application Industries | Oil & Gas, Petrochemical, Chemical Processing, Fuel Storage Terminals, Bulk Liquid Transfer Facilities |
Materials of construction
| Component | Material |
|---|---|
| Flange Options | Carbon Steel, Stainless Steel, and Application-Specific Flange Configurations |
| Bearing Module | Heavy-Duty Swivel Joint Assembly with Precision Bearing System |
| Seal Options | NBR, EPDM, PTFE, Special Material Options |
Source: Emco Wheaton e2632 data sheet
Source: Emco Wheaton Parallel Loading Arm catalog
E2632 Frequently Asked Questions
The E2632 is designed to transfer liquid products while simultaneously recovering vapors through a dedicated vapor return system, reducing emissions and improving operational efficiency.
The dual-boom configuration allows both the product and vapor lines to move together, providing smooth handling and maneuverability similar to a single loading arm.
The system is suitable for gasoline, hydrocarbons, chemicals, toxic media, and other aggressive liquid products that require vapor recovery during loading.
The rigid vapor return line with swivel joints eliminates pockets and traps where condensed vapors can accumulate, reducing emissions and improving safety.
Yes. The design allows optional heating of both the product transfer line and the vapor recovery line for temperature-sensitive products.
