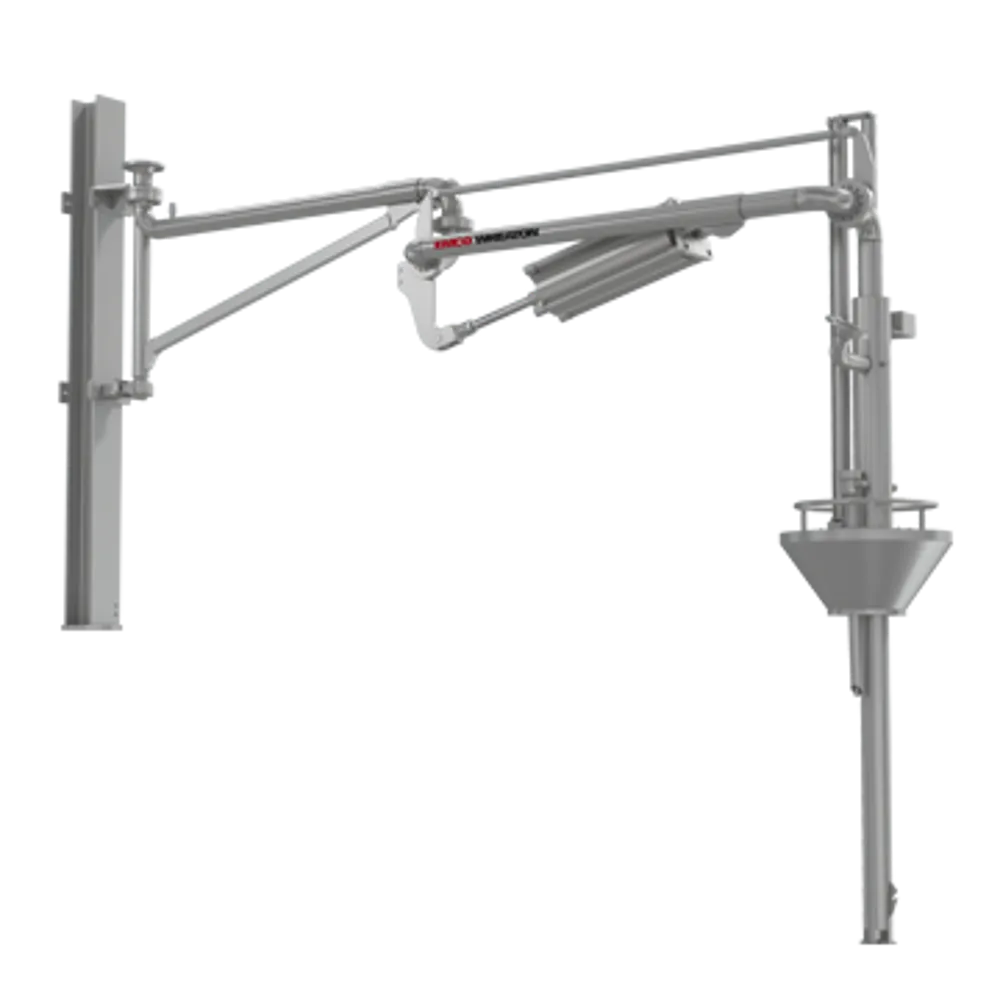

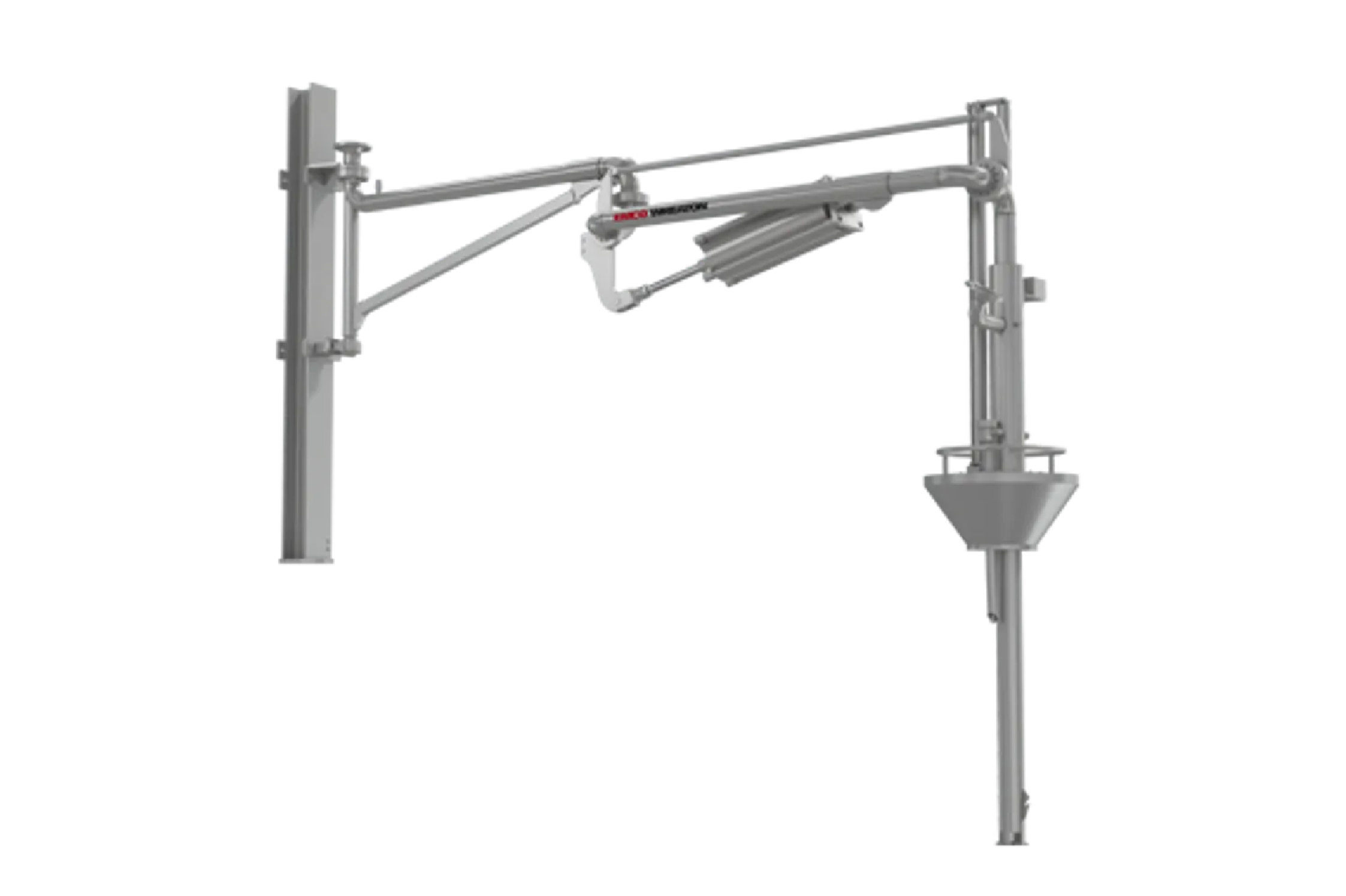

E2630 Top Loading Arm with Vapor Recovery
The E2630 Top Loading Arm with Vapor Recovery is designed for the safe and efficient loading of hydrocarbons, chemicals, and other volatile or hazardous liquids where vapor containment is essential. By integrating a dedicated vapor return hose with a long-reach top loading arm, the system captures product vapors during loading operations, reducing emissions, improving terminal efficiency, and enhancing environmental protection.
SafeRack supplies Emco Wheaton swivel joints, providing expert support to help you choose the right configuration, materials, and sealing options for your application. Our team assists with specifications, compatibility, and system integration to ensure safe, efficient, and reliable fluid transfer operations. Get technical guidance, lead times, and pricing support, all in one place.
E2630 Top Loading Arm with Vapor Recovery
Safety & Compliance Expert
HAVE A QUESTION?
Talk to a Safety Expert Now
E2630 Top Loading Arm with Vapor Recovery
Overview
The vapor recovery system allows loading through a sealed manhole, minimizing operator exposure to potentially harmful vapors while ensuring compliance with stringent environmental regulations. This makes the E2630 particularly suitable for gasoline, chemical, and heated product applications where vapor control is critical.
Engineered for easy handling and long-term reliability, the E2630 features a lightweight design with minimal offset, allowing smooth operation even in facilities with limited working space or low roof clearances. Constructed using high-quality materials and equipped with EMCO high-performance swivel joints, the loading arm delivers dependable performance across demanding industrial environments.
Key Features
- Integrated vapor recovery system minimizes emissions during loading operations.
- Ideal for hydrocarbons, gasoline, chemicals, and aggressive media.
- Supports sealed manhole loading for improved operator and environmental safety.
- Long-reach top loading arm design provides flexible tanker access.
- Lightweight construction ensures smooth and effortless operation.
- Suitable for installations with limited space or low roof heights.
- Compatible with heating systems for temperature-sensitive products.
- Equipped with EMCO high-performance swivel joints for reliability and durability.
- Wide operating temperature range from -50°C to +250°C.
- Designed to support compliance with environmental and air-quality regulations.
E2630 Top Loading Arm Specifications
| Specification | Details |
|---|---|
| Product Type | Top Loading Arm with Integrated Vapor Recovery |
| Available Sizes | DN 80, DN 100, DN 150 with Vapor Return Lines DN 50–100 |
| Working Pressure | Configured according to application and system requirements |
| Test Pressure | Available upon request based on project specifications |
| Temperature Range | -50°C to +250°C (-58°F to +482°F) |
| Design Type | Long-Reach Top Loading Arm with Vapor Return Hose |
| Construction | Articulated loading arm with integrated vapor recovery line and sealed loading capability |
| Compliance | Designed to meet applicable environmental and industrial regulations, including EU standards and TA-Luft requirements |
| Maintenance | Low-maintenance design featuring high-performance swivel joints and durable sealing systems |
| Application Industries | Oil & Gas, Petrochemical, Chemical Processing, Fuel Terminals, Bulk Liquid Storage, Environmental Compliance Facilities |
Materials of construction
| Component | Material |
|---|---|
| Flange Options | Carbon Steel, Stainless Steel, and Application-Specific Flange Configurations |
| Bearing Module | EMCO High-Performance Swivel Joint System |
| Seal Options | NBR, EPDM, PTFE, Special Material Options |
Source: Emco Wheaton E2630 data sheet
Source: Emco Wheaton Top Loading Arm catalog
E2630 Frequently Asked Questions
The vapor recovery system captures and returns displaced vapors during loading operations, reducing emissions, improving safety, and helping facilities meet environmental regulations.
The E2630 is ideal for gasoline, hydrocarbons, chemicals, aggressive media, and products requiring vapor containment or heating during transfer.
Yes. Its lightweight design and minimal offset make it suitable for loading stations with restricted space or low roof clearances.
The E2630 is designed to operate in temperatures ranging from -50°C to +250°C, depending on the selected materials and seals.
Yes. The system is designed to support compliance with relevant environmental standards and regulations, including EU requirements and German TA-Luft guidelines.
