Bottom Hose Loaders E2304
The Bottom Hose Loaders E2304 are designed for efficient bottom filling of multi-compartment tank trucks. These loading arms are specifically engineered to operate as part of a Bottom Hose Loading Station, allowing multiple arms to work together for safe and productive loading operations.
SafeRack supplies Bottom Hose Loaders E2304, providing expert support to help you choose the right configuration, materials, and sealing options for your application. Our team assists with specifications, compatibility, and system integration to ensure safe, efficient, and reliable loading operations. Get technical guidance, lead times, and pricing support for Bottom Hose Loaders E2304, all in one place.
Bottom Hose Loaders E2304
Safety & Compliance Expert
HAVE A QUESTION?
Talk to a Safety Expert Now
Bottom Hose Loaders E2304
Overview

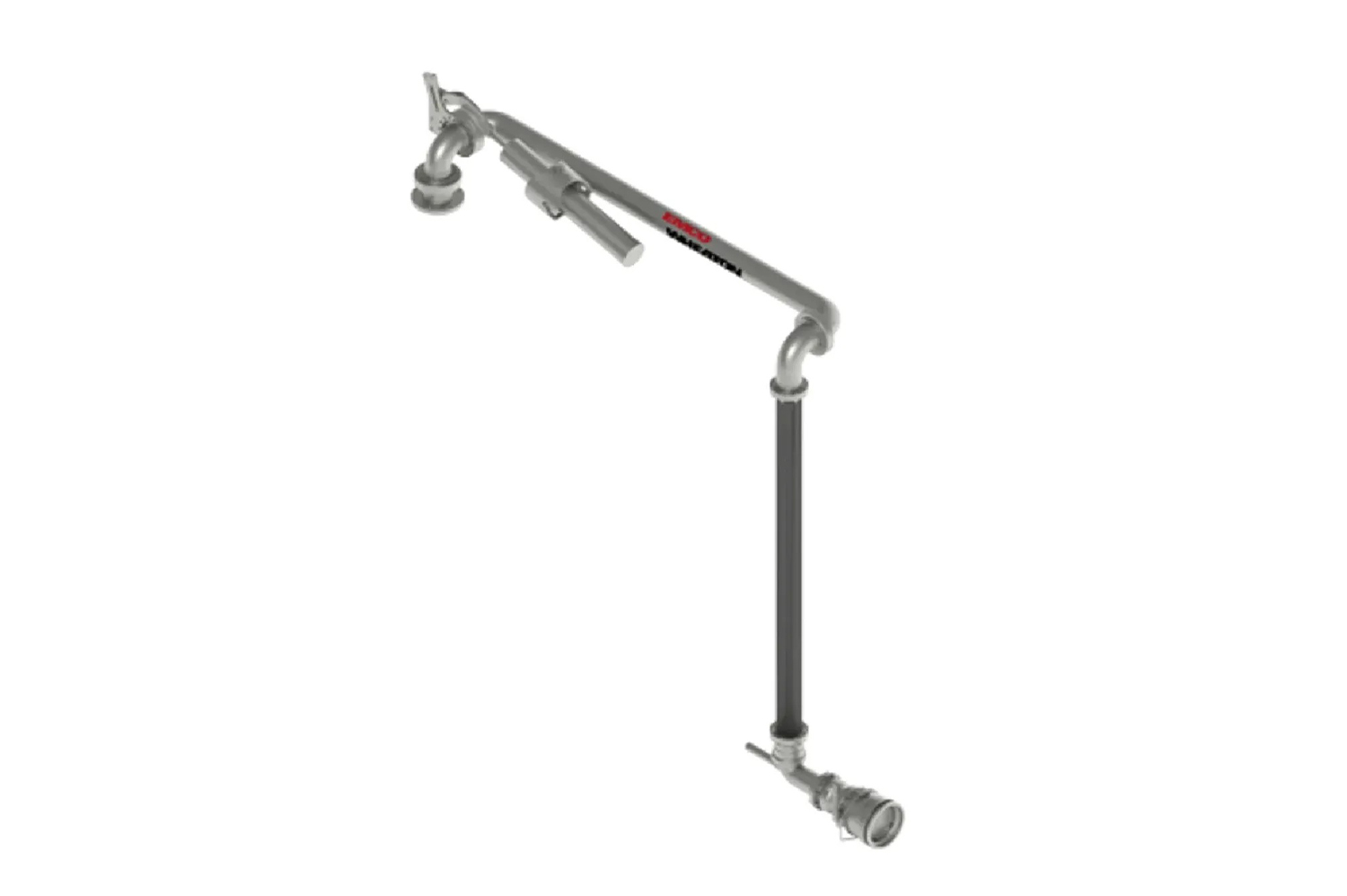

The Bottom Hose Loaders E2304 are designed to simplify bottom loading operations by providing operators with a flexible and efficient loading solution. The system is commonly used in loading stations where several loading arms are installed together to service multi-compartment tank trucks.
Its design allows unrestricted crossover between loading positions and provides an extended working range, making it easier to connect to multiple tank compartments. The spring cylinder balancing system helps ensure smooth arm movement and improved operator handling during loading and unloading operations.
Key Features
- Designed for bottom filling of multi-compartment tank trucks
- Suitable for multiple-arm loading station installations
- Provides unrestricted crossover capability
- Extended working envelope for improved flexibility
- Spring cylinder balancing system for smooth operation
- Supports a variety of hose and swivel configurations
- Available in European and US specifications
- Multiple API coupler options available
- Compatible with emergency release couplers
- Available in left-hand and right-hand configurations
- Supports composite, rubber, and stainless-steel hose options
- Suitable for demanding terminal loading applications
E2304 Bottom Hose Loaders Specifications
| Specification | Detail |
|---|---|
| Size | 4″ |
| Construction Material | Carbon Steel / Aluminum |
| Inlet Flange | ANSI 150 & 300 lbs / EN PN16 & PN40 |
| Design Pressure | 10 bar / 16 bar |
| Design Temperature | -20°C to +110°C |
| Balancing Method | Spring Cylinder |
Materials of construction
| Component | Material |
|---|---|
| Arm Construction | Arm Construction/Aluminum |
| Optional Arm Construction | Stainless Steel |
| Seal Material | Viton/Buna |
| Outboard Swivel | Outboard Swivel |
| Hose Options | Composite Hose/Stainless Steel Hose/Rubber Hose |
| Inlet Flange | Carbon Steel Construction |
Bottom Hose Loaders E2304 Frequently Asked Questions
The Bottom Hose Loaders E2304 are designed for bottom filling of multi-compartment tank trucks. They are commonly installed in loading terminals where multiple loading arms are used together to improve loading efficiency and operational flexibility.
Unrestricted crossover allows operators to access multiple compartments more easily without interference between loading arms. This improves loading efficiency and provides greater flexibility when handling different truck configurations.
The E2304 uses a spring cylinder balancing system. This design helps reduce operator effort by providing smooth and controlled movement during positioning and loading operations.
The system supports composite hoses, stainless steel hoses, and rubber hoses. It can also be configured with various API couplers, emergency release couplers, swivel joints, and spool pieces depending on operational requirements.
Yes. The Bottom Hose Loaders E2304 offer multiple configuration options, including left-hand or right-hand orientation, different hose types, swivel options, emergency release systems, and API coupler selections to meet specific loading applications.
