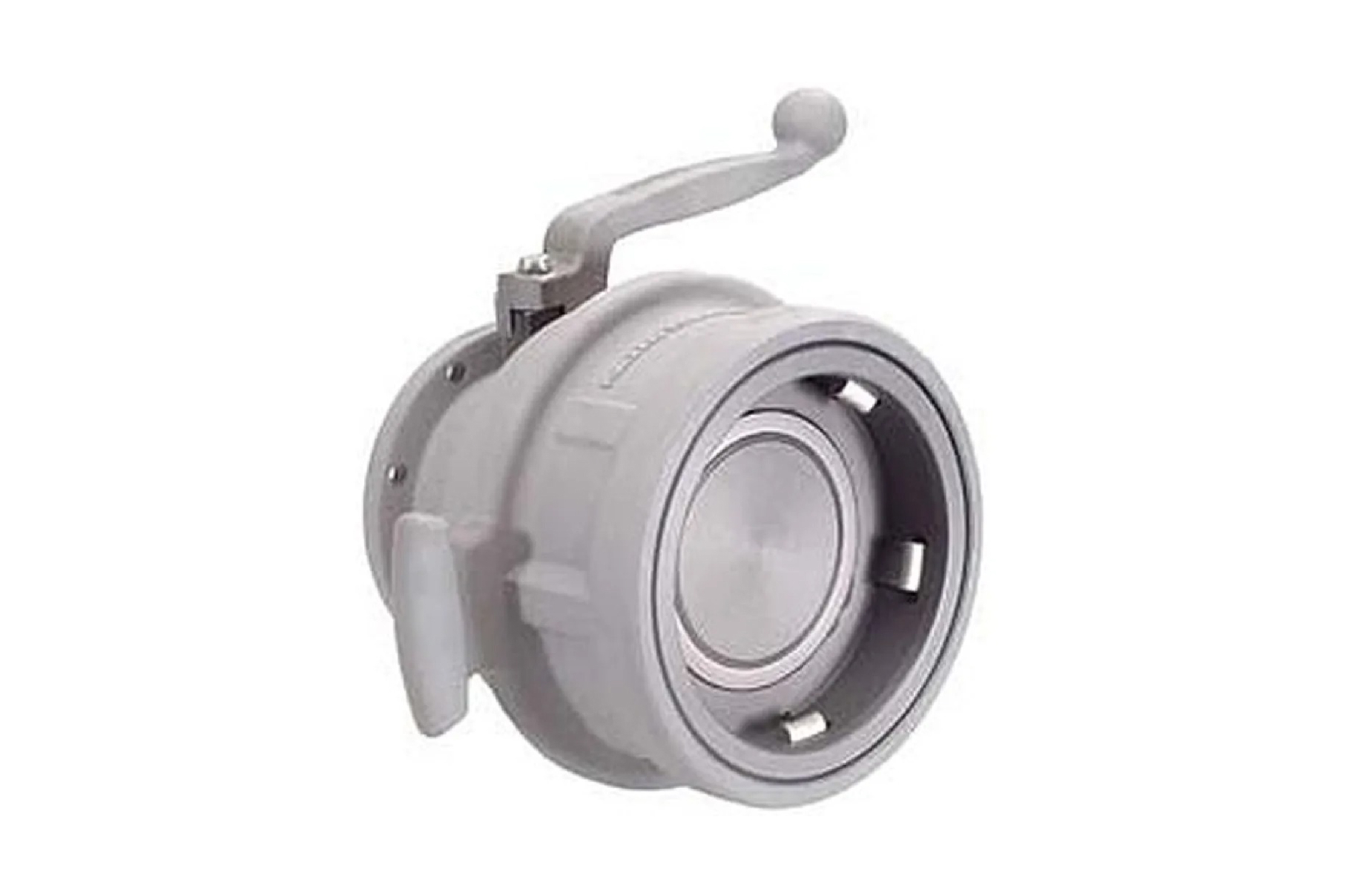

Fuel Line Coupler | J0451
The J0451 Fuel Line Coupler has been a trusted industry standard for more than three decades, providing safe, reliable, and efficient fuel transfer solutions for tank truck loading and unloading operations. Continuously refined to meet evolving industry requirements, the J0451 remains a preferred choice among petrochemical companies and fuel distribution terminals worldwide.
SafeRack supplies the J0451 Fuel Line Coupler, providing expert support to help you choose the right configuration, materials, and sealing options for your application. Our team assists with specifications, compatibility, and system integration to ensure safe, efficient, and reliable fluid transfer operations. Get technical guidance, lead times, and pricing support for the J0451 Fuel Line Coupler, all in one place.
Fuel Line Coupler | J0451
Safety & Compliance Expert
HAVE A QUESTION?
Talk to a Safety Expert Now
Fuel Line Coupler | J0451
Overview
Designed for manual operation, the coupler offers a lightweight yet durable construction that simplifies handling while maintaining excellent performance in demanding environments. Its ergonomic design, superior sealing technology, and maintenance-friendly features ensure dependable operation across a wide range of fuel products and liquid media.
Built to recognized international standards, the J0451 is engineered for long service life, leak-free performance, and easy maintenance. The coupler’s versatility allows it to handle traditional fuels as well as alternative energy products, making it a future-ready solution for modern fuel transfer operations.
Key Features
- Industry-proven API fuel line coupler with over 30 years of field performance.
- Lightweight design weighing only 9.8 kg (21.61 lbs) for reduced operator fatigue.
- Manual latching mechanism enables simple and reliable operation.
- Ergonomic construction improves handling and user comfort.
- In-situ nose seal replacement minimizes downtime and maintenance effort.
- Bevelled lip design enhances load distribution and coupling performance.
- Forged aluminum operating lever with roller bearings ensures durability.
- High-quality seals and gaskets provide reliable leak-free operation.
- Compatible with a wide range of fuels, chemicals, and alternative fuels.
- Designed to meet recognized international standards and industry best practices.
J0541 Fuel Line Coupler Specifications
| Specification | Details |
|---|---|
| Product Type | API Fuel Line Coupler |
| Available Sizes | 4″ API Connection |
| Working Pressure | Maximum 10 bar (150 psi) |
| Test Pressure | Available upon request according to applicable standards |
| Temperature Range | Dependent on selected seal material and application requirements |
| Design Type | Manual Latching API Fuel Transfer Coupler |
| Construction | Lightweight metal body with forged aluminum operating lever |
| Compliance | Manufactured to recognized international standards and industry codes of practice |
| Maintenance | Maintenance-friendly design with replaceable seals and readily available service kits |
| Application Industries | Fuel Distribution, Petrochemical, Tank Truck Loading, Bulk Liquid Transport, Terminal Operations |
Materials of construction
| Component | Material |
|---|---|
| Flange Options | 4″ API Tank Truck Flange Connection |
| Bearing Module | Roller Bearing Assisted Lever Mechanism |
| Seal Options | HP Viton (FKM), Buna (NBR), Low-Temperature Viton |
Source: Emco Wheaton J0451 data sheet
Source: Emco Wheaton Fuel Line Coupler catalog
J0451 Frequently Asked Questions
The J0451 is used for loading and unloading fuels and liquid products between tank trucks and terminal loading systems through standard 4″ API connections.
The coupler is suitable for petrol, diesel, kerosene, crude oil, biofuels, alcohols, solvents, and other compatible liquid products.
The coupler features an in-situ nose seal replacement design, allowing operators to replace seals quickly without extensive disassembly.
The J0451 is available with HP Viton (FKM), Buna (NBR), and low-temperature Viton seals to suit various operating conditions and media.
Yes. The API coupling range is being developed to support emerging fuel technologies, including hydrogen and alternative energy products.
