A-Frame Bottom Loader E2313
The E2313 A-Frame Bottom Loader is designed to provide safe, efficient, and flexible bottom-loading operations for petroleum and bulk liquid transfer applications. Its A-frame configuration offers excellent maneuverability, extended reach, and reliable positioning, making it a popular choice for terminal loading racks and fuel distribution facilities.
SafeRack supplies the E2304 Loading Arm, providing expert support to help you choose the right configuration, materials, and sealing options for your application. Our team assists with specifications, compatibility, and system integration to ensure safe, efficient, and reliable loading operations. Get technical guidance, lead times, and pricing support, all in one place.
A-Frame Bottom Loader E2313
Safety & Compliance Expert
HAVE A QUESTION?
Talk to a Safety Expert Now
A-Frame Bottom Loader E2313
Overview

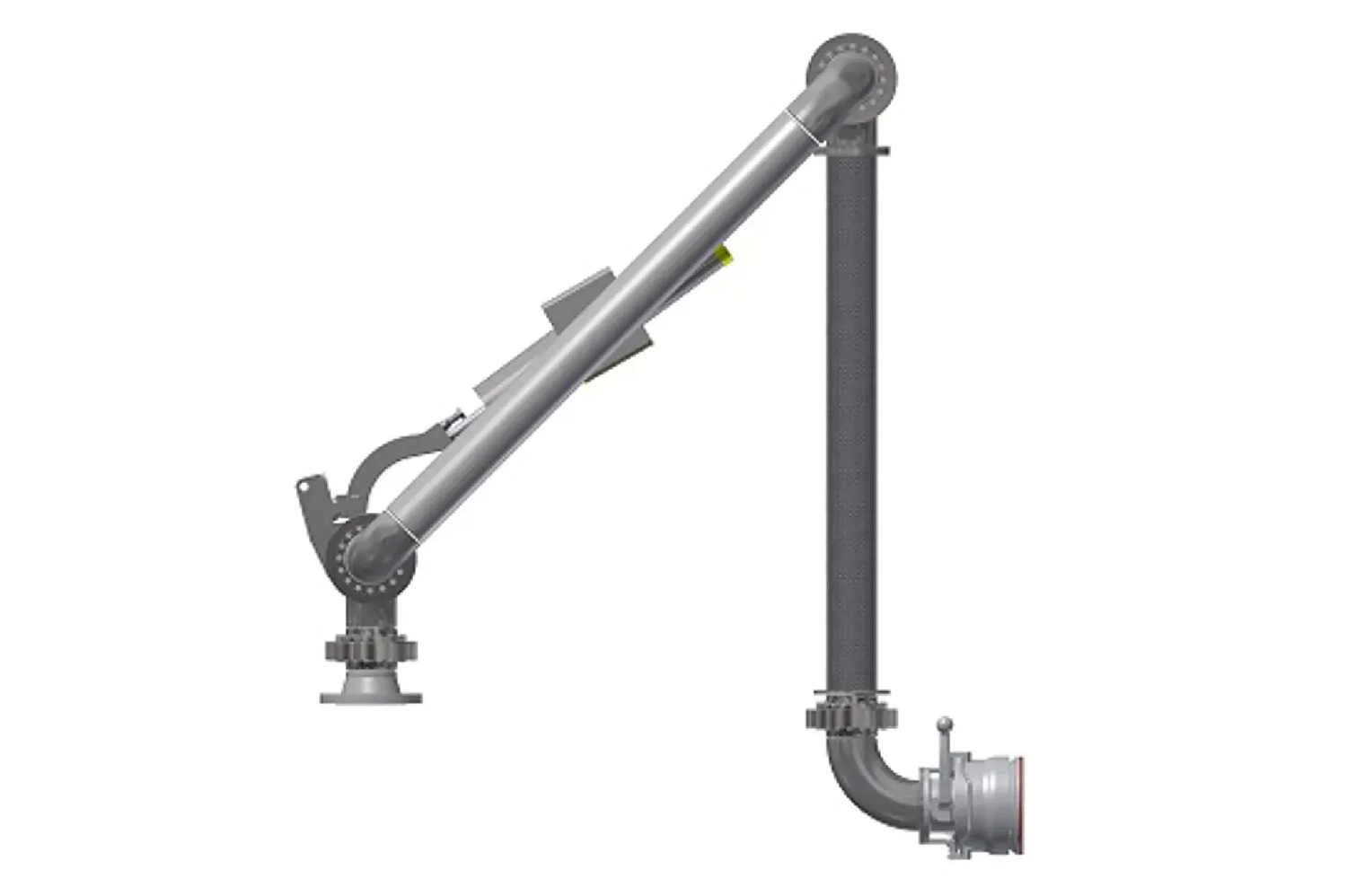

The Emco Wheaton E2313 A-Frame Bottom Loader is engineered to accommodate a wide range of tank truck configurations while maintaining smooth and dependable operation. The A-frame design provides a large working envelope, allowing operators to easily connect to loading adaptors positioned throughout the API loading zone. Its articulated structure supports efficient multi-compartment loading operations and helps improve loading rack productivity. Designed for long-term service in demanding environments, the E2313 combines durable construction with maintenance-friendly components to ensure reliable performance. The A-frame arrangement also allows for compact storage when not in use, helping maximize available loading rack space while maintaining easy accessibility for operators.
Key Features
- A-frame bottom-loading arm design
- Wide operating envelope for flexible positioning
- Smooth and easy maneuverability
- Suitable for API bottom-loading applications
- Extended reach capability
- Compact storage position when not in use
- Durable industrial construction
- Supports multi-compartment loading operations
- Reliable performance in demanding environments
- Maintenance-friendly design
- Suitable for petroleum and bulk liquid transfer
- Designed for terminal and loading rack installations
E2313 Specifications
| Specification | Details |
|---|---|
| Product Type | Bottom Loading Arm |
| Model | E2313 |
| Configuration | A-Frame Bottom Loader |
| Loading Style | Bottom Loading |
| Operation | Manual |
| Installation Type | Rack Mounted |
| Application | Petroleum and Bulk Liquid Transfer |
| Reach Type | Extended Working Envelope |
| Service | Loading and Unloading Operations |
| Configuration Options | Customizable Based on Application Requirements |
Sourse: Emco Wheaton E2313
Materials of construction
| Component | Material |
|---|---|
| Primary Arm Structure | Carbon Steel |
| A-Frame Assembly | Carbon Steel |
| Swivel Assemblies | Carbon Steel or Aluminum |
| Connection Components | Carbon Steel, Stainless Steel, or Aluminum |
| Coupler Components | Aluminum or Application-Specific Materials |
| Seals | Product-Compatible Elastomers |
Emco Wheaton E2313 Frequently Asked Questions
The E2313 is designed for bottom-loading petroleum products and other compatible liquids into transport vehicles at loading terminals and distribution facilities.
The A-frame design provides a large working envelope, smooth operation, extended reach, and flexible positioning during loading operations.
Yes. The loader can be used to efficiently access and load multiple tank compartments within the API loading envelope.
The E2313 is commonly used in petroleum terminals, fuel distribution facilities, bulk liquid storage operations, and industrial transfer applications.
Yes. Various materials, couplers, seals, and accessories can be selected to meet specific application requirements.
