Excel Loading Systems XL-1.0

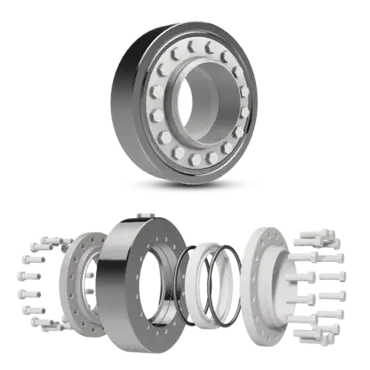

The XL-1.0 Swivel Joint is a high-performance swivel joint designed for loading arm systems requiring durability, safety, and low-maintenance operation. It is engineered to deliver reliable sealing performance under high pressure while ensuring smooth mechanical movement in demanding industrial environments.
SafeRack supplies and supports Excel Loading Systems XL-1.0 with expert specification guidance from Regional Area Managers who help you select the right configuration, materials, and end fitting for your terminal. Our team provides assistance with system compatibility, installation requirements, and operational performance to ensure safe and efficient loading operations. Get technical support, lead times, and pricing information for Excel Loading Systems XL-1.0 in one call.
Excel Loading Systems XL-1.0
Safety & Compliance Expert
HAVE A QUESTION?
Talk to a Safety Expert Now
Excel Loading Systems XL-1.0
Overview
The XL-1.0 Swivel Joint is designed to provide long service life and consistent operational performance. It uses precision machining and hardened ball race technology to handle high mechanical and hydraulic loads with ease.
Its corrosion-resistant sealing surfaces and tight manufacturing tolerances help maintain a secure seal while reducing maintenance requirements. The split flange design allows in-line servicing without welding, minimizing downtime during maintenance or replacement.
Key Features
- High-durability swivel joint for loading arm systems
- Precision-machined construction for reliable sealing
- Hardened ball races for extended service life
- Low-torque operation under mechanical and hydraulic loads
- Split flange design for easy in-line maintenance
- Seal replacement without removing ball bearings
- Corrosion-resistant sealing surfaces
- Designed for high-pressure industrial applications
- Suitable for oil, gas, chemical, and food industries
- Available in multiple material and seal configurations

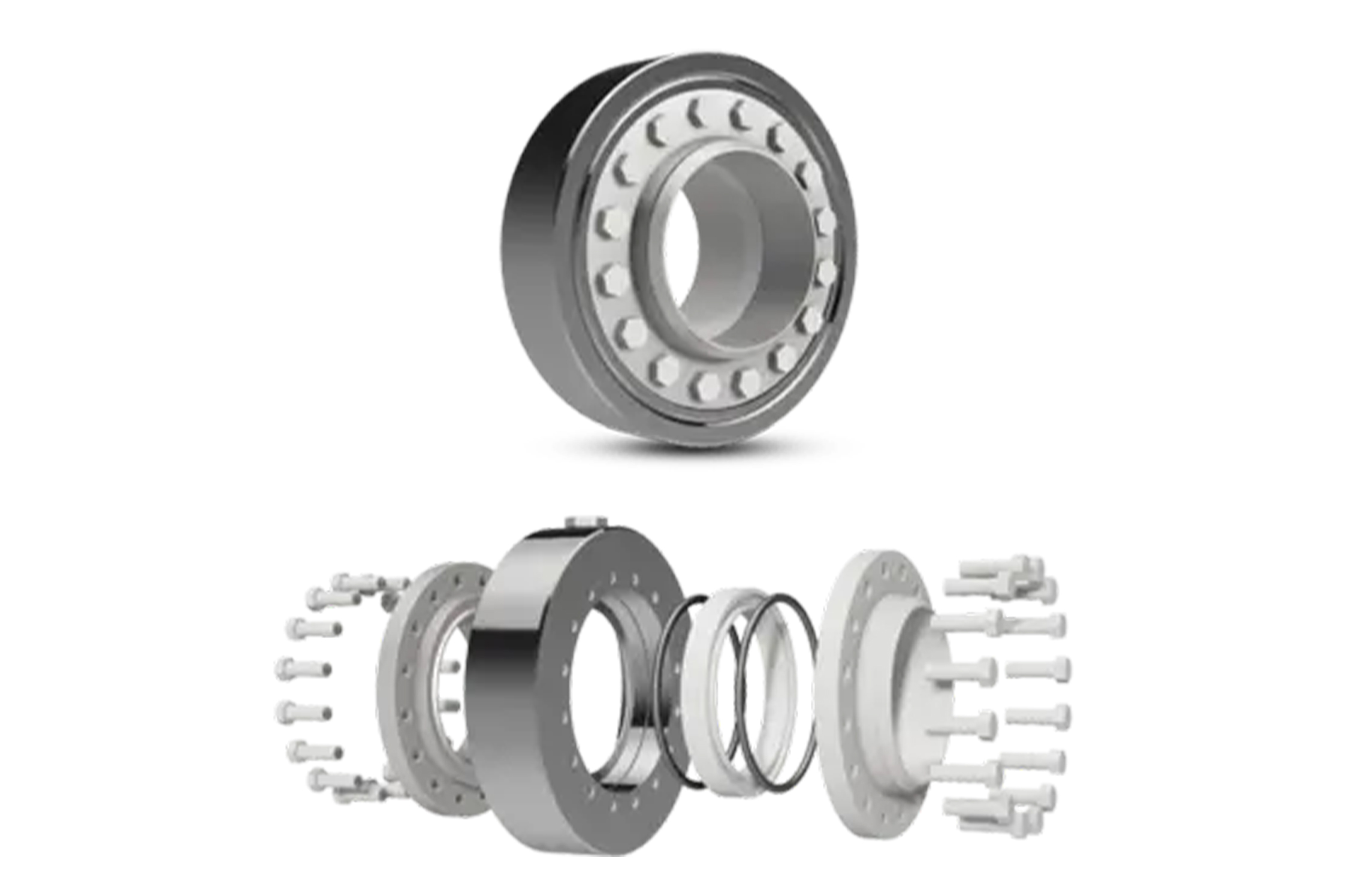

XL-1.0 Swivel Joint Specifications
| Specification | Detail |
|---|---|
| Model | XL-1.0 |
| Type | Swivel Joint |
| Working Pressure | 300 PSI |
| Temperature Range | -20°F to 400°F |
| Flange Materials | Carbon Steel / Stainless Steel / LTCS / Hastelloy / Inconel |
| Bearing Material | Carbon Steel / Stainless Steel |
| Standard Seals | Viton GFLT / Buna / FEP (Teflon Encapsulated Viton) |
| Maintenance | In-line serviceable, split flange design |
| Certification | ISO Certified / ASME Code |
Source: Excel Loading Systems XL-1.0
Materials of construction
| Component | Material |
|---|---|
| Swivel Flange | Carbon Steel / Stainless Steel / Alloy Options |
| Ball Bearings | Hardened Steel |
| Bearing Module | Carbon Steel / Stainless Steel |
| Seal Blocks | Engineering Polymer / Elastomer Options |
| O-Rings | Viton / Buna / FEP Encapsulated |
| Fasteners | Grade 5 Steel Bolts |
XL-1.0 Swivel Joint Frequently Asked Questions
The XL-1.0 Swivel Joint is used as a high-performance swivel joint in loading arm systems. It allows smooth rotational movement while maintaining a strong, leak-resistant seal during the transfer of liquids and gases in industrial loading operations.
The XL-1.0 is commonly used in oil, gas, chemical, food processing, and industrial fluid handling applications. It is designed to perform reliably in environments where safety, pressure control, and durability are critical.
The swivel joint is rated for a working pressure of up to 300 PSI. It is engineered to handle demanding loading operations while maintaining consistent sealing performance under varying operating conditions.
Yes, the XL-1.0 is designed for easy maintenance. Its split flange construction allows in-line servicing without welding, and seals can be replaced without removing the ball bearings, reducing downtime and maintenance effort.
The XL-1.0 is available in multiple material options including carbon steel, stainless steel, and specialty alloys such as Hastelloy and Inconel. It also supports different seal materials to match specific temperature and media requirements.
