Excel Loading Systems Quick Adjust Spring Cylinder

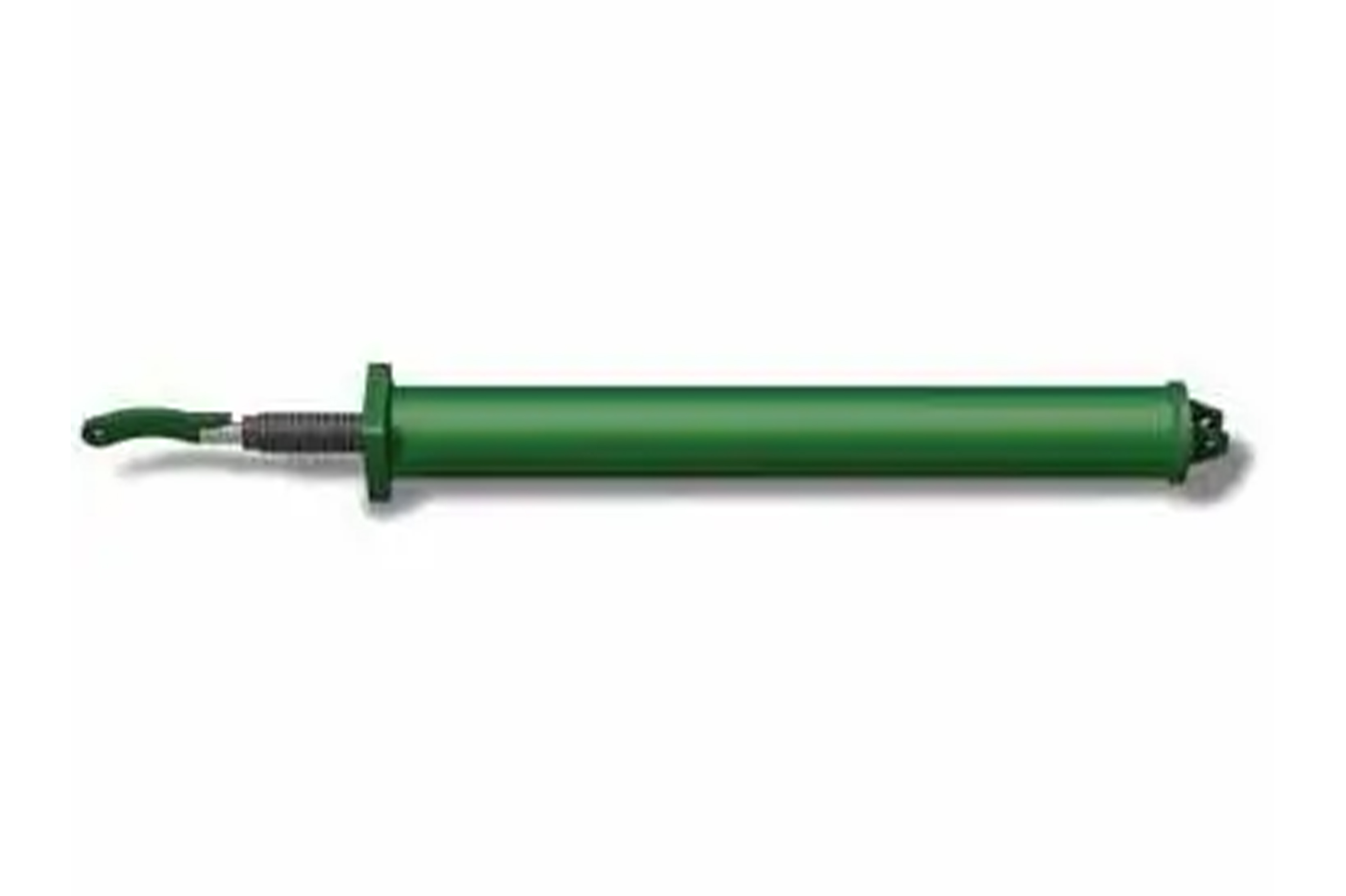

The Quick Adjust Spring Cylinder is a compression spring cylinder assembly designed to provide safe, reliable, and operator-friendly balancing for loading arm systems. Engineered to meet high industry standards, it offers simple adjustment capabilities while maintaining safe operation in demanding industrial environments.
SafeRack supplies and supports the Quick Adjust Spring Cylinder with expert specification guidance from Regional Area Managers who help you select the right configuration, materials, and components for your application. Our team provides assistance with system compatibility, installation requirements, and operational performance to ensure safe and efficient loading operations. Get technical support, lead times, and pricing information for the Quick Adjust Spring Cylinder in one call.
Excel Loading Systems Quick Adjust Spring Cylinder
Safety & Compliance Expert
HAVE A QUESTION?
Talk to a Safety Expert Now
Excel Loading Systems Quick Adjust Spring Cylinder
Overview
The Quick Adjust Spring Cylinder is designed to simplify loading arm balancing and adjustment while improving operator safety. Its enclosed spring cylinder design helps reduce risks associated with traditional exposed spring systems and allows for safe operation during routine adjustments.
The assembly features two adjustment points for both fine-tuning and major balance changes. Fine adjustments can be made in the field while the arm is under load, without the need for special tools. This design helps reduce downtime and makes ongoing maintenance more efficient.
Key Features
- Operator-friendly spring cylinder assembly
- Designed for safe and reliable field operation
- Fully enclosed spring cylinder design
- Fine adjustment capability without special tools
- Adjustable while under load
- Secondary adjustment point for major balance changes
- Improves loading arm balance and handling
- Manufactured from domestic components
- Supports in-field service and refurbishment
- Designed for long-term durability and performance
- ISO-certified and ASME-coded manufacturing support
Quick Adjust Spring Cylinder Specifications
| Specification | Detail |
|---|---|
| Product Type | Compression Spring Cylinder Assembly |
| Adjustment Method | Dual Adjustment Points |
| Fine Adjustment | Lead Screw Adjustment |
| Major Adjustment | Arm Bracket Adjustment |
| Field Adjustment | Yes |
| Special Tools Required | No (for fine adjustments) |
| Design | Fully Enclosed Spring Cylinder |
| Manufacturing | Domestic Components |
| Service Support | Field Service & Factory Refurbishment |
| Certifications | ISO Certified / ASME Coded |
Materials of construction
| Component | Material |
|---|---|
| Spring Cylinder Assembly | Domestic Manufactured Components |
| Housing | Heavy-Duty Industrial Construction |
| Lead Screw Mechanism | Industrial Grade Metal Components |
| Adjustment Hardware | Industrial Grade Steel |
| Enclosure | Fully Enclosed Safety Design |
Source: Quick Adjust Spring Cylinder
Quick Adjust Spring Cylinder Frequently Asked Questions
The Quick Adjust Spring Cylinder is used to balance loading arms and improve operator control during loading and unloading operations. It helps ensure smooth arm movement while reducing the effort required to position and operate the loading arm.
The assembly includes two adjustment points. The lead screw provides fine-tuning adjustments that can be performed in the field while the arm remains under load, while the arm bracket adjustment is used for larger balance changes when required.
Yes. The fully enclosed spring cylinder design helps reduce many of the risks associated with traditional exposed spring systems. This design allows adjustments to be made while maintaining a safer working environment for operators.
Yes. The Quick Adjust Spring Cylinder is designed for field serviceability. In-field adjustment, replacement services, refurbishment, and rebuilding support are available to help minimize downtime and maintain performance.
The system provides reliable balancing, easy adjustment, improved operator safety, and simplified maintenance. Its domestic manufacturing and durable construction also help ensure long-term performance in demanding industrial applications.
