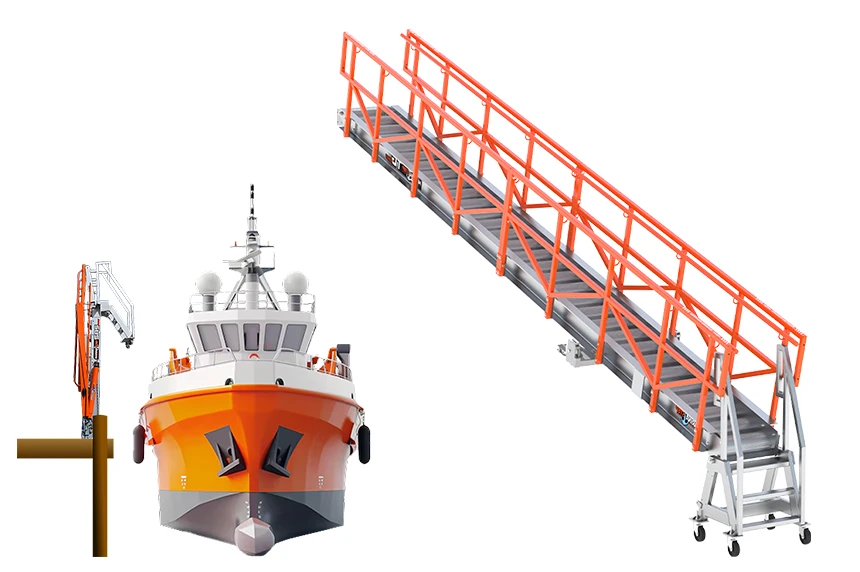

Marine Gangways – Access and Loading Solutions
SafeRack’s MarinaStep marine gangways are made of advanced, corrosion-resistant aluminum and are designed for code-compliant worker safety, durability, and reliability in marine environments.
Marine Gangways
Safety & Compliance Expert
HAVE A QUESTION?
Talk to a Safety Expert Now
Download
We’re committed to your privacy. We use the information you provide to us to contact you about our relevant products and services. You may unsubscribe from these communications at any time. For more information, check out our Privacy Policy.
Thank You.
Your file is downloading
You can now download additional files
without filling out the form again.
Marine Gangway Products
SafeRack is the #1 Selling Gangway in North America
MarinaStep offers three specific gangway styles to assure ma-rine users safe access solutions to fit their different, unique sites and operating conditions: the Stage Gangway (SG Series), Truss Gangway (TG Series), and Self-adjusting Stairs (SAS Series). Our advanced corrosion-resistant marine-grade aluminum vessel gangways are designed for OHSA compliant worker safety, durability and reliability in marine environments and are built to order to your required length and specifications. With a full engineering staff behind them, they’re built to last, too. Constructed of durable aluminum, galvanized or stainless steel, our vessel gangways are available in many sizes, and special-purpose gangways exceeding standard measurements can be de-signed to your exact specifications.
- Custom Solutions
Many options and sizes are available to suit any application. - Expedited Delivery
Quick ordering, in-stock parts, and fast delivery
- Standards and Regulations
OSHA compliant and meets OSHA Voluntary Protection Program (VPP) standards, as well as Coast Guard, International Maritime Organization (IMO), and ANSI standards - The toughest gangway available
Built for years of reliable operation
- Marine Grade Aluminum
Corrosion-resistant and requires less maintenance - Precision Built
Proudly made in the USA. Fewer parts and fewer welds result in stronger, longer life, with less maintenance
Marine Gangways
Self Adjusting Stair
Gangway System
MarinaStep’s self-adjusting stairs are built to the highest quality and allow for operating in aggressive angles to provide safe access from ship to shore. This style is a perfect solution to reach both short and intermediate distances, providing a slip-resistance and level step for users along the entire length of the gangway.
Our SAS gangways are built-to-order to your required length and specifications. Constructed of durable aluminum, galvanized or stainless steel, they’re readily available in lengths up to 24′ and up to 5′ in width — and vessel gangways exceeding those dimensions can be designed and built if your application requires it. If you need a level step throughout the entire operational range from 40 degrees below to 45 degrees above horizontal, the SAS gangway is exactly what you need.
Features
- Level steps… every step – Regardless of the height, each step auto-levels.
- Marine-grade corrosion-resistant aluminum
- Non-slip aggressive stamped stair surface
Self Adjusting Stair Gangway
MarinaStep’s Self-Adjusting Stairs are built to the highest quality and allow for operating in aggressive angles to provide safe access from ship to shore. This style is a perfect solution to reach both short and intermediate distances, providing a slip-resistance and level step for users along the entire length of the gangway.
Width Range
2′ – 5′
Max Length
20′
Loads
500 lbs
Platform
Required
Operational Angle
No Cleats: 20°
Cleats: 30°
Rotation
Available if attached to a platform
Power Options
- Lifting Lugs for Existing Crane
- Counterbalanced Springs †
- EZ-Lift Pully System †
- Hydraulic Cylinders
- Pneumatic Cylinders
- Winch System
† Size-dependent
Walk Surface
SAS Stairs
End Treads
- None
- 70° Ship Ladder
- 45° Access Steps
Vessels
Boat
Ship
Barge
Talk to a Safety Expert Now
Truss Gangway System
The Truss Series uses a rugged U-body con-struction to provide a live load capacity of 750 pounds and can be constructed to accommodate even higher load capacities, allowing for up to 80 feet in length.
Features
Multiple wheel options
Choose from omni-directional swivel casters, fixed hard wheels, fixed pneumatic wheels, or a dock roller. Other options can be added to any design as needed.
Configured for your application
Available ship’s ladder or tripod stairs for fixed utilization. Fixed, mobile, or standalone applications.
Variety of sizes
Available up to 80’ span in length and a variety of widths. Special-purpose gangways exceeding those measurements can also be built.
Variety of walk surfaces
Options include a flat ramp with cleated or bare stamped aggressive tread or diamond stamped or extruded curved tread.
Truss Gangway
The Truss Series uses a rugged U-body construction to provide a live load capacity of 750 pounds and can be constructed to accommodate even higher load capacities, allowing for up to 80 feet in length.
Width Range
2′ – 5′
Max Length
80′
Loads
750 lbs
Platform
Available
Operational Angle
No Cleats: 20°
With cleats: 30°
Curved Treads: 45°
Rotation
Available if attached to a platform
Power Options
If freestanding:
- Manual lift
- Lifting Lugs for Existing Crane
If attached to platform:
- EZ-Lift Pully System †
- Counterbalanced Springs†
- Hydraulic Cylinders
- Pneumatic Cylinders
- Winch System
† Size-dependent
Walk Surface
Stamped
Optional Cleats
Bar Grating
Optional Cleats
Curved Treads
End Treads
- None
- A-frame
- L-frame
Vessels
Boat
Ship
Barge
Talk to a Safety Expert Now
Stage Gangway System
Our SG series aluminum stage gangways for barge and ship access use a rugged U-body construction to provide a live load capacity of 750 pounds and can be custom constructed to accommodate even higher load capacities.
Our rugged construction provides a standard distributed load rating of 750 pounds and can be made-to-order to accommodate even higher load capacities. Additionally, you can choose from multiple walk surfaces to improve your footing when operating at steeper angles, or give a relaxed surface with a gentle slope depending on your specific needs.
Features
For the stage gangway, the options are identical to the truss gangway with the exception of the allowed length. All wheel options and walk surfaces are the same.
The Stage Series is the little brother to the Truss Series gangway. It can span up to 20 feet in length and has available widths up to 5 feet.
The SG gangway is our lightest and most maneuverable option available but still has the same strength as its bigger brother. Because it is shorter, it can use smaller components allowing for the same 750 pounds of support, but it’s easier to handle.
Stage Gangway
The Stage Series allows for up to 20 feet in length, providing a design that offers a lighter and more maneuverable gangway, but made
from the same durable materials as the more robust Truss Series.
Width Range
2′ – 5′
Max Length
20′
Loads
750 lbs
Platform
Available
Operational Angle
No Cleats: 20°
Cleats: 30°
Rotation
Available if attached to a platform
Power Options
If freestanding:
- Manual lift
- Lifting Lugs for Existing Crane
If attached to platform:
- EZ-Lift Pully System †
- Counterbalanced Springs†
- Hydraulic Cylinders
- Pneumatic Cylinders
- Winch System
† Size-dependent
Walk Surface
Stamped
Optional Cleats
Bar Grating
Optional Cleats
End Treads
- None
- A-frame
- L-frame
Vessels
Boat
Barge
