SafeRack Gangway Installation for Bulk Loading Sulfuric Acid
Categories: Gangways Loading Platforms/Racks Bulk Chemical Energy – Petroleum, LPG, Solar G4/GX Gangway SafeRack Facility
A gangway sulfuric acid loading system is a specialized industrial access solution designed to provide safe, efficient top access to tank trucks and railcars when handling corrosive chemicals. In facilities dealing with sulfuric acid, safe access to loading points is critical to protect workers and maintain controlled operations. This system replaces outdated or unsafe gangways with a more advanced and secure solution that improves both safety and productivity.
Designed for hazardous environments, a gangway sulfuric acid loading system ensures stable positioning, reduces manual effort, and supports safe handling during chemical transfer.
What is a gangway sulfuric acid loading system?
A gangway sulfuric acid loading system is an engineered access platform equipped with safety features that allow operators to safely reach the top of tank vehicles during loading and unloading operations. It typically includes a railcar gangway structure, a safety cage system, and a lifting mechanism for easy positioning. This system is commonly used in chemical facilities where sulfuric acid and similar corrosive materials are handled, ensuring safe and controlled access at all times.

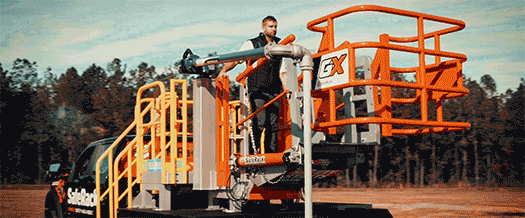

SafeRack GX Gangway Installation in Magnolia Facility
Located in Magnolia, Arkansas, the facility supplies bromine chemicals, sulfuric acid, and other industrial products. With multiple loading platforms across the site, a GX SAS gangway was installed to replace an outdated and unsafe unit from another supplier. The tank trucks features a power-assisted system for smooth raising and lowering with minimal effort. It includes instant positive locking to secure the unit in position, improving operator safety during vehicle access. Its powder-coated structure helps resist wear and chemical exposure during bulk sulfuric acid loading operations. This advanced system has also been recognized by Occupational Health & Safety magazine as a Product of the Year, highlighting its innovative design and performance in industrial safety applications.
The customer is highly satisfied with SafeRack’s products and services and plans to upgrade additional loading terminals across the facility.
The customer is very satisfied with SafeRacks products and services and will be upgrading nearly all the loading terminals throughout the facility.
Importance of gangway sulfuric acid loading
Handling sulfuric acid requires strict safety measures due to its highly corrosive nature. A gangway sulfuric acid loading system reduces risks by providing a stable and protected working area for operators. It minimizes the chances of falls, chemical exposure, and operational errors while ensuring compliance with safety standards. This makes it an essential component in chemical loading operations.
Key features
- Power-assisted lifting and lowering system
- Automatic locking mechanism for secure positioning
- Integrated safety cage for fall protection
- Chemical-resistant coated surfaces
- Designed for corrosive chemical environments
- Durable industrial-grade construction
These features make gangway sulfuric acid loading systems reliable for hazardous industrial applications.
Revolutionary Power Assist System
Lift, Lower & Lock in any position
automatically with no manual lifting
NEW PRODUCT OF THE YEAR!
The Occupational Health & Safety New Product of the Year awarded to SafeRack’s GX Gangway in the Fall Protection/Prevention category.
The customer is very satisfied with the SafeRack GX gangway. The customer has since ordered another gangway, and plans are in place to replace up to 10 units across the facility.
Sulfuric acid is typically loaded using a close dome (tight fill) process into tank trucks via Teflon-lined chemical hoses, braided SST flex hoses, or 3″ stainless steel loading arms with PTFE seals. At diluted concentrations of 93% and above, sulfuric acid can be splash loaded using a carbon steel loading arm.
Depending on the concentration, optional vapor recovery systems may be used in conjunction with a splash plate, vapor cone, or inflatable hatch seal.
Sulfuric Acid is typically transported in insulated or non-insulated tank cars
Usually in 7,000 gallon DOT 103AW or 13,640 gallon DOT 111A100W2 depending on concentration, that meets the DOT specification for the transportation of sulfuric acid and other like commodities. The rails cars themselves are ~ 9′ outside diameter with an overall length of ~33’ to 41′, with a 7’-4” x 6’ center or off-set crash boxes.
For safety reasons, pump unloading is the preferred method over dry compressed air unloading for tank cars and trucks. If a patient has taken the drug to reduce the possibility of developing ricochet insomnia for a long time, then withdrawal should be carried out gradually (first reducing the daily dose and then canceling the drug). This puts the unloading hose or arm under suction so that any leak can be stopped promptly without the need for venting the tank car or truck of padding pressure.
DOT MC-310, MC-311 & MC-312 tank trailers are used to transport over roads and highways with a capacity up to 20 to 23 tons (2600 to 3000 gallons)
Tank truck (un)loading procedures are similar to railcar applications with the trailers meeting established DOT requirements for hauling sulfuric acid. Bottom unloading is also the preferred method for unloading sulfuric acid tank trucks utilizing a 2” or 3” chemical hose or gravity drop bottom unloading arm with a quick release coupler or dry disconnect fitting and break-away.
What is a gangway sulfuric acid loading system used for?
It is used to provide safe top access for operators during loading and unloading of sulfuric acid in tank trucks and railcars.
How does a gangway sulfuric acid loading system improve safety?
It improves safety by using a power-assisted system, safety cage, and locking mechanism to reduce falls and chemical exposure risks.
Where is gangway sulfuric acid loading equipment commonly used?
It is commonly used in chemical plants, sulfuric acid facilities, tank truck loading stations, and railcar loading terminals.
What makes gangway sulfuric acid loading systems different from traditional gangways?
They use power-assisted lifting and automatic locking, reducing manual effort and improving operator safety and control.
Is gangway sulfuric acid loading equipment suitable for harsh chemicals?
Yes, it is designed with chemical-resistant coatings and durable construction for corrosive environments like sulfuric acid handling.
