MaxRack Elevating Loading Safety Cage Platform
Categories: Elevated Platforms Mining & Minerals MaxRack SafeRack Railcar

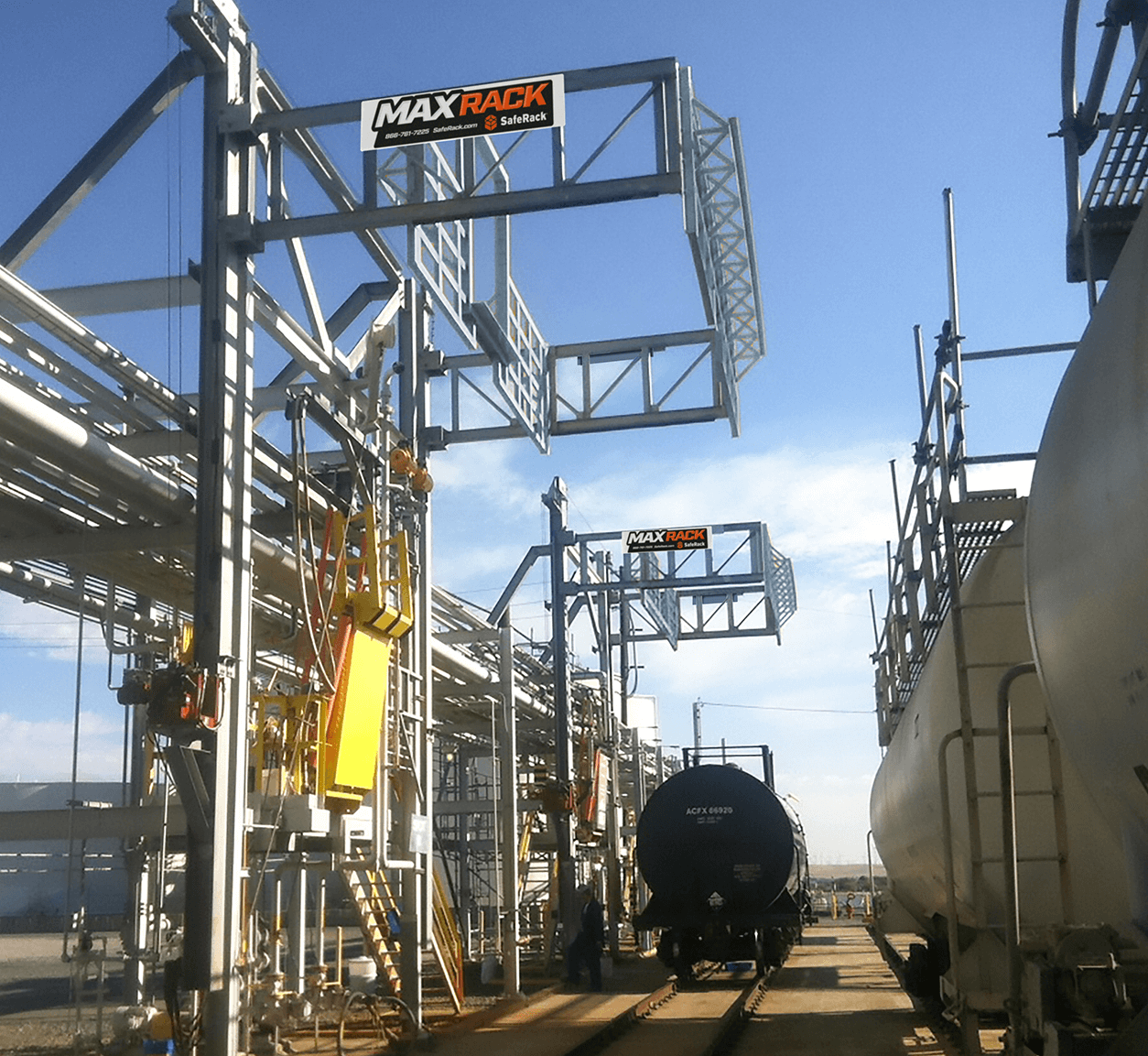

Custom Built Railcar Safety Cage with Elevating Rack
Railcar loading and unloading requires employees to work at the top of tank cars while managing different ports and cargo conditions. A dependable fall-protection system can provide a more controlled work area and help employees perform these demanding tasks with confidence. The MaxRack Elevating Loading Safety Cage Platform provides an elevating safety cage that lowers to the top of tank cars and can be positioned at the appropriate working height. The system is designed to provide a large fall-protection zone while supporting efficient railcar operations and faster car turnover.
What Is a MaxRack Elevating Loading Safety Cage Platform?
A MaxRack Elevating Loading Safety Cage Platform is an elevating handrail and safety cage system designed for railcar loading and unloading. The cage moves into position over the tank car, creating a protected area where workers can perform their required tasks. The MaxRack system features a counterbalanced cage design and a dual-input gearbox. It can be powered by either pneumatic or electric drives, while its manual override allows operators to raise or lower the cage if power or plant air is lost.
Why Is a MaxRack Elevating Loading Safety Cage Platform Important?
Working on tanker cars can be challenging because tank cars and their cargo are not always identical. Different types of ports and pressurized loads can require workers to perform tasks carefully while maintaining an efficient operation. A MaxRack Elevating Loading Safety Cage Platform provides workers with a large, comfortable fall-protection zone around the work area. The supplied project information also identifies faster car turnover, immediate safety benefits, and support for OSHA compliance as key benefits of the system.
How Does the MaxRack Elevating Loading Safety Cage Platform Work?
The MaxRack safety cage is lowered toward the top of the tank car and positioned at the desired working height. Its counterbalanced design, combined with pneumatic or electric drives, enables smooth raising and lowering of the cage. The system also incorporates a dual-input gearbox that provides an alternative method of operation. If the facility loses power or plant air, the MaxRack Elevating Loading Safety Cage Platform can be manually raised or lowered using the system’s manual override capability.
Key Features
- Elevating safety cage for railcar loading and unloading
- Large fall-protection zone for workers
- Counterbalanced cage design
- Pneumatic or electric drive options
- Dual-input gearbox
- Manual override for power or plant-air loss
- High-strength galvanized steel construction
- Multiple standard configurations
- Available for railcar and truck tank applications
- Smooth cage raising and lowering
Railcar Loading and Unloading Applications
The MaxRack system is designed for applications where employees need access to the tops of tank cars during loading and unloading operations. The elevating cage can be lowered to the railcar and positioned at the required working height. A MaxRack Elevating Loading Safety Cage Platform can support facilities handling different tanker car configurations, ports, and cargo conditions. MaxRack systems are also available for truck tanks, extending the system’s application beyond railcar operations.
Worker Confidence and Operational Efficiency
Tanker car work can involve demanding tasks and varying operating conditions. Providing employees with a large fall-protection zone gives them a more comfortable and controlled area in which to complete their work. The MaxRack Elevating Loading Safety Cage Platform also supports operational efficiency. The supplied project information states that faster car turnover can contribute to the company’s bottom line, while the manual override capability helps maintain cage operation when normal power or plant air is unavailable.
What is a MaxRack Elevating Loading Safety Cage Platform?
A MaxRack Elevating Loading Safety Cage Platform is an elevating safety cage and handrail system used for railcar loading and unloading. It provides workers with a protected fall-protection zone around the top of a tank car.
How does the MaxRack safety cage reach the tank car?
The cage lowers to the top of the tank car and can be positioned at the appropriate working height. Its counterbalanced design and pneumatic or electric drives support smooth movement.
Can the MaxRack system operate without power or plant air?
Yes. The system includes a manual override that allows operators to manually raise or lower the cage if the facility loses power or plant air.
What material is used to construct MaxRack systems?
According to the supplied project information, MaxRack systems are constructed using high-strength galvanized steel.
Can MaxRack systems be used with truck tanks?
Yes. The supplied information states that MaxRack systems are available for both railcar and truck tank applications.
