ErectaStep ProXL
The Configurations You Need. Already Engineered.
Popular configurations adjusted to the height of your project and pre-engineered to OSHA standards. Install in days, not weeks.
BUILT FOR:
- Power Generator Access
- Modular Buildings & Job Trailers
- Valves & Maintenance Points
- Catwalks & Elevated Walkways
- Tanks, Skids & Process Equipment
- Any Elevated Access Point
ErectaStep ProXL
Safety & Compliance Expert
HAVE A QUESTION?
Talk to a Safety Expert Now
ErectaStep ProXL
OSHA
Compliant
Proudly Made
in the USA
Popular
Configurations
Ships/Installs
In Days
No Welding
Bolts Together
Adjustable
Heights
The Configurations You Need. Already Engineered. OSHA Compliant. Ready to Install.

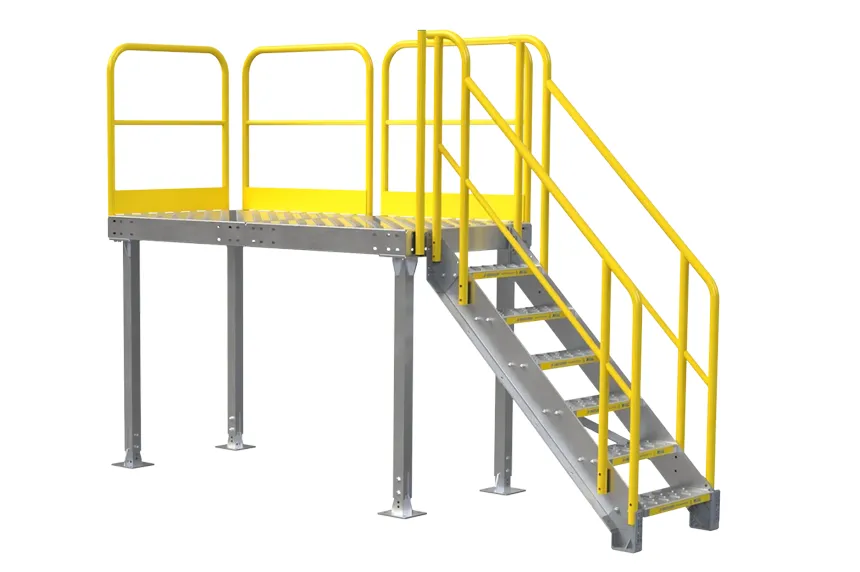

ErectaStep ProXL is a pre-engineered, bolt-together access system designed for any elevated access point, including power generator access, modular buildings, job trailers, equipment, valve access, or catwalks. It’s available in popular configurations, each offered in 1–6 step heights to match the elevation your application requires. Adjustable legs enable a level footing on uneven ground and set the walk surface to the right height for the job.
Handrails and stairs reposition to suit the site, giving your team the flexibility to fit the platform to the equipment — not the other way around. The aggressive-traction, non-slip platform surface keeps footing sure in any condition, indoors or out. Pre-engineered to OSHA standards and easy to bolt together with hand tools, ProXL ships quickly and installs in days, not weeks.
CONFIGURATIONS:
Each configuration is available in 1–6 step heights. Adjustable legs add ±3″ of fine adjustment in 1″ increments at every height.
| Steps | Standard TOW | Adjustable Range |
|---|---|---|
| 1 Step | 18″ | 15″ – 21″ (±3″, in 1″ increments) |
| 2 Step | 27″ | 24″ – 30″ (±3″, in 1″ increments) |
| 3 Step | 36″ | 33″ – 39″ (±3″, in 1″ increments) |
| 4 Step | 45″ | 42″ – 48″ (±3″, in 1″ increments) |
| 5 Step | 54″ | 51″ – 57″ (±3″, in 1″ increments) |
| 6 Step | 63″ | 60″ – 66″ (±3″, in 1″ increments) |
CONFIGURATIONS:
| Platforms | 50 PSF load rating · aggressive-traction, non-slip surface |
| Stairs | 1,000 lb load rating · standard ErectaStep stairs at standard angle |
| Handrails | 200 lb load rating · powder-coated safety yellow · 3’6″ height with midrail and 4″ toe board |
| Adjustable Legs | 200 lb uplift anchoring · ±3″ in 1″ increments to dial in level footing |
| Material | Industrial-grade aluminum · lightweight · maintenance-free · Made in the USA |
| Anchoring | Concrete: 5/8″ wedge anchor (2.5″ embedment) or 5/8″ epoxy anchor (3″) · Steel: 5/8″ tapping screws (3″) · Ground anchors supplied by customer |
Installations
CONFIGURATIONS:
Standard ProXL
Platform: 8′ × 3′ 9″
Most common footprint. Stair and handrail positioned to suit site requirements.
Wide ProXL
Platform: 7′ 6″ × 4′
Wider footprint with added clearance to accommodate 36″ generator doors while maintaining OSHA-required clearance. Stair and handrail positioned to suit.
Catwalk
Platform: 16′ × 3′ 9″
Extended-run access for inline equipment, valves, and maintenance points along a single elevation.
L / Corner
Platform: 8′ × 11′ 3″
Wraps around equipment for multi-side access at the same elevation.
Frequently Asked Questions
ErectaStep systems are fully prefabricated and modular, which eliminates the need for custom engineering or fabrication. The bolt-together design reduces installation time and cost, while still providing OSHA-compliant access across obstacles like pipes, conveyors, or equipment.
Yes. The five-component modular system allows for quick reconfiguration if your facility layout changes. Components can be reused, repositioned, or expanded without specialized labor or fabrication.
In most cases, customers receive their ErectaStep system and complete installation within the same week. Because the system is in stock, flat-packed, and requires no welding or hot work permits, the process is significantly faster than traditional alternatives.
Yes. All systems are pre-engineered to meet or exceed OSHA standards. This ensures a safe, compliant solution without the need for additional review or engineering input.
