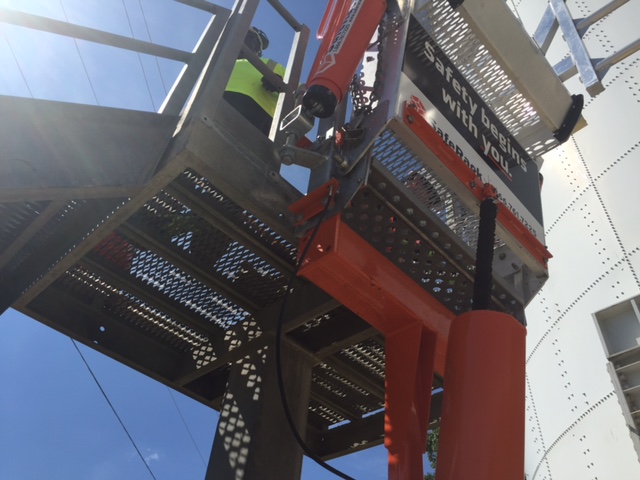

G4 loading gangway with SafeLok
Categories: Cement & Frac Sand
SafeRack’s G4 loading gangway with SafeLok is designed to provide controlled, secure access to the tops of trucks and railcars during loading operations. The system combines the G4 gangway with SafeLok, a mechanical locking device that helps keep the gangway secured in its working position while an operator is on the vehicle. For bulk loading facilities, maintaining safe access without slowing down operations is critical. The SafeLok system is designed to prevent operators from repositioning the gangway while standing on top of a truck or railcar, helping keep them within the protection of the gangway and safety cage.
What Is a G4 Loading Gangway with SafeLok?
A G4 loading gangway with SafeLok combines a SafeRack G4 Series gangway with a dedicated gangway and cage lockdown mechanism. The gangway provides a controlled access path between the loading platform and vehicle, while SafeLok controls the gangway’s movement. Once the gangway is lowered into its working position, SafeLok helps keep it locked until the operator returns to the main platform. This design addresses a common loading-area hazard where workers may otherwise attempt to lift or reposition a gangway while standing on a vehicle.
Importance of Safe Gangway Access
Accessing the top of a tanker, hopper truck, or railcar can expose operators to significant fall hazards. A properly positioned gangway and safety cage provide a defined access route and help keep the worker protected during loading activities. SafeLok adds another layer of control by preventing the gangway from being raised from the vehicle side. This encourages operators to return to the loading platform before changing the gangway position, supporting safer operating practices without requiring electrical power.
How It Works
The G4 gangway is positioned from the loading platform and lowered toward the vehicle. When it reaches the working position, the SafeLok mechanism secures the gangway and helps prevent unauthorized repositioning from the vehicle. To release the system, the operator returns to the loading platform and activates the locking mechanism. SafeLok uses a simple foot-operated release, allowing the gangway to be moved when the operator is safely away from the vehicle surface.
Key Features
- G4 Series gangway configuration for truck and railcar access
- SafeLok mechanical gangway lockdown system
- Helps prevent gangway repositioning while workers are on vehicles
- Foot-operated locking and release mechanism
- No electrical power required for the locking device
- Designed for heavy-duty loading environments
- Can be incorporated into new SafeRack equipment or retrofitted to existing G4 Series gangways
- Provides controlled gangway movement through multiple positions
SafeRack states that SafeLok was designed for demanding operating cycles and can be integrated with existing SafeRack equipment, making it suitable for facilities looking to improve gangway control without replacing an entire system.
Applications
The G4 loading gangway with SafeLok is suited to industrial loading environments where operators need regular access to truck or railcar tops. Typical applications include:
- Bulk material loading facilities
- Cement and frac sand terminals
- Tank truck loading operations
- Railcar loading and unloading areas
- Pneumatic trailer loading stations
- Facilities requiring controlled top-of-vehicle access
SafeRack also documents SafeLok applications in cement terminal and pneumatic trailer loading environments, where the system helps control gangway positioning during repeated vehicle loading operations.
What is SafeLok used for on a G4 gangway?
SafeLok is designed to lock the gangway in its working position and prevent operators from raising or repositioning it while standing on top of a vehicle.
Can SafeLok be added to an existing G4 gangway?
Yes. SafeRack states that SafeLok can be supplied with new G4 Series gangways and can also be retrofitted to existing G4 Series gangways.
Does SafeLok require electricity?
No. The SafeLok locking device uses a mechanical, foot-operated mechanism rather than requiring electrical power.
Where can G4 gangways be used?
G4 Series gangways are used for truck and railcar loading and unloading applications, with configurations available for different access requirements.
