What is a Fall Arrest System?
A fall arrest system is a safety mechanism used to protect workers at heights. It is designed to stop a person from falling once a fall has already started. This system is particularly useful for workers operating on top of vehicles or other elevated areas with a risk of falling.
Common Elements of a Fall Arrest System
- I-Beam: The I-Beam serves as the horizontal anchor point for the fall arrest system. It is a common structural element in construction and industrial settings, providing a robust and stable base for attaching fall protection equipment.
- Anchor Trolley: This device allows for smooth movement along the beam. It can be attached anywhere along the beam, including at the midpoint, making it a versatile component in the system. The trolley ensures that the fall arrest system can be used effectively across various positions along the beam.
- Self-Retracting Fall Limiter: Also known as a self-retracting lifeline (SRL), this device provides a retractable lifeline that extends and retracts as the worker moves. In the event of a fall, it locks automatically, reducing the fall distance and the forces exerted on the body.
- Self-Retracting Fall Limiter: Also known as a self-retracting lifeline (SRL), this device provides a retractable lifeline that extends and retracts as the worker moves. In the event of a fall, it locks automatically, reducing the fall distance and the forces exerted on the body.
- Lifeline: A crucial component that connects the worker to the anchor point. Lifelines can be horizontal or vertical, depending on the specific requirements of the job site. They must be capable of sustaining a 5,000-pound load to ensure safety.
- D-Ring Extender: This component is used to extend the reach of the D-ring on the safety harness, allowing the worker to attach the lifeline more easily, especially in awkward or hard-to-reach positions.
- Safety Harness: The full-body safety harness is designed to distribute the forces of a fall across the thighs, pelvis, chest, and shoulders. This helps to minimize injury and ensure that the worker is suspended upright after a fall.
- Tagline: A tagline is used to manage and control the movement of the lifeline, ensuring it stays clear of obstacles and does not become tangled. It provides an additional layer of control and safety for the worker.
- Bollards: These are sturdy, fixed vertical posts used to anchor horizontal lifelines or other fall arrest equipment. They are designed to withstand significant forces and provide a reliable anchor point for fall protection systems.
SafeRack Fall Protection Service and Equipment
SafeRack specializes in Fall Protection solutions that safeguard workers from the second leading cause of workplace injuries: falls from height. Our comprehensive range of products is designed to meet and exceed OSHA standards, ensuring not just compliance but a safer, more productive work environment.

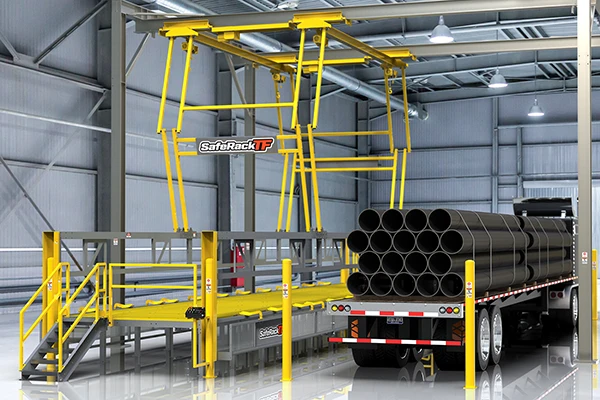

Falls while loading and tarping a flatbed trailer without fall protection can cause severe injury and even be fatal. SafeRack’s overhead semi-trailer tarp system is always safe and OSHA-compliant

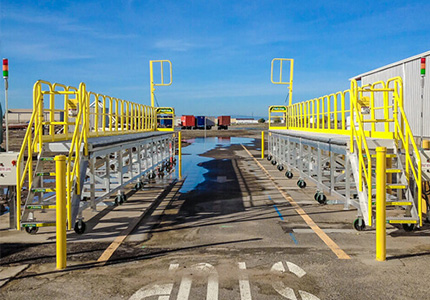

FALL PROTECTION FOR LOADING FLATBED TRAILERS
SafeRack rolling platforms provide a safe walk surface beside the flatbed truck trailer while loading. With large swivel casters, you can easily roll the platforms alongside the flatbed and roll it away when the truck leaves.
The new MaxRack-powered elevating handrail system is the only elevating safety cage on the market that can be raised and lowered manually if your facility loses power or plant air.

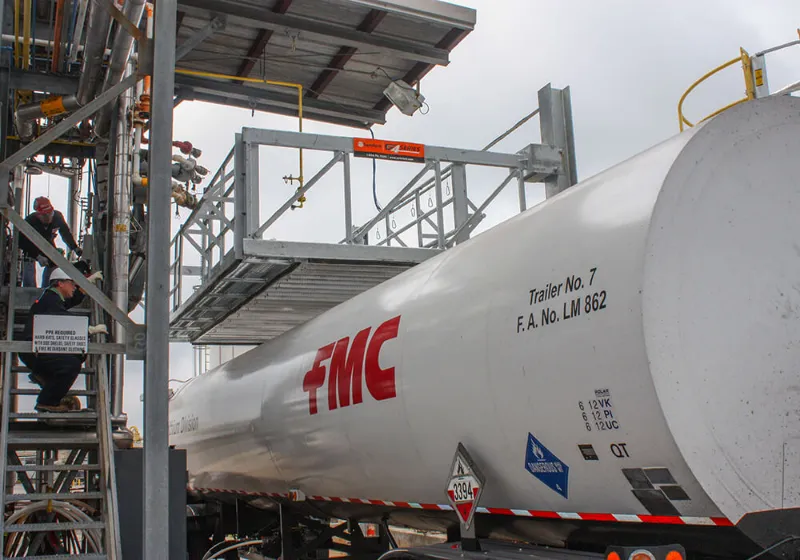

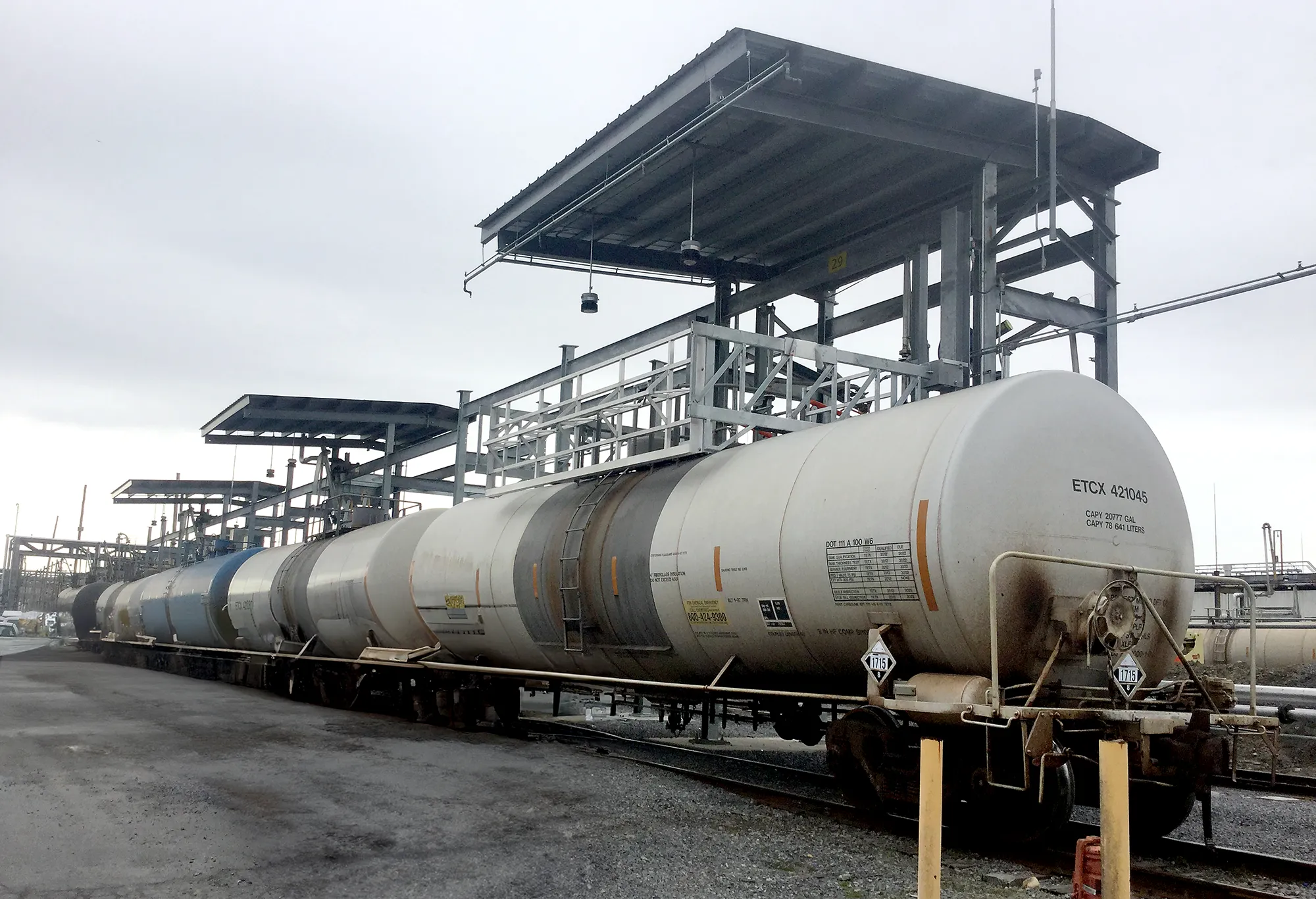

ELEVATING CAGE LOADING SYSTEMS FOR TRUCK & RAILCARS
Our elevated safety handrail loading system enables workers to perform their jobs with confidence knowing they’re protected from falls.

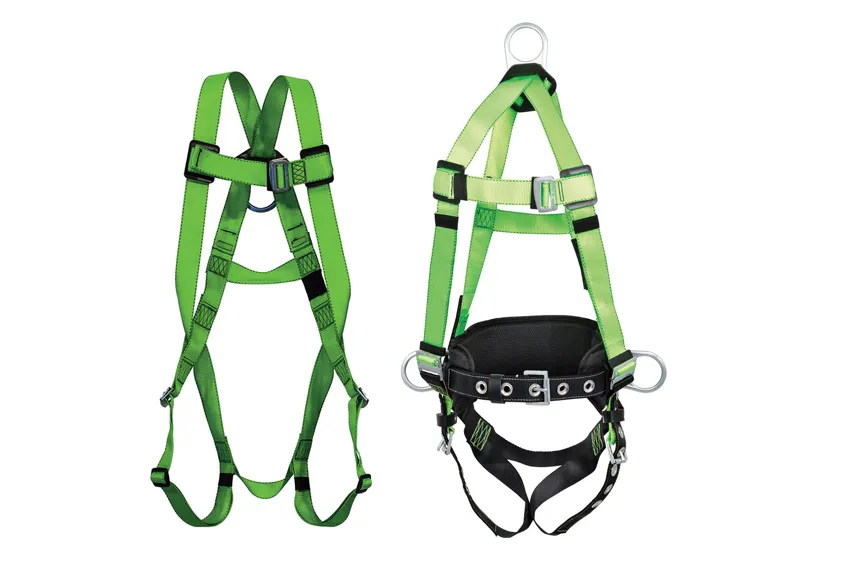

FULL BODY HARNESS AND FALL PROTECTION BELT COMBOS
Full Body Harness/Belt Combos by PeakWorks are designed to be lightweight and comfortable, so you can wear them all day. It’s also ANSI Z359.11 certified…

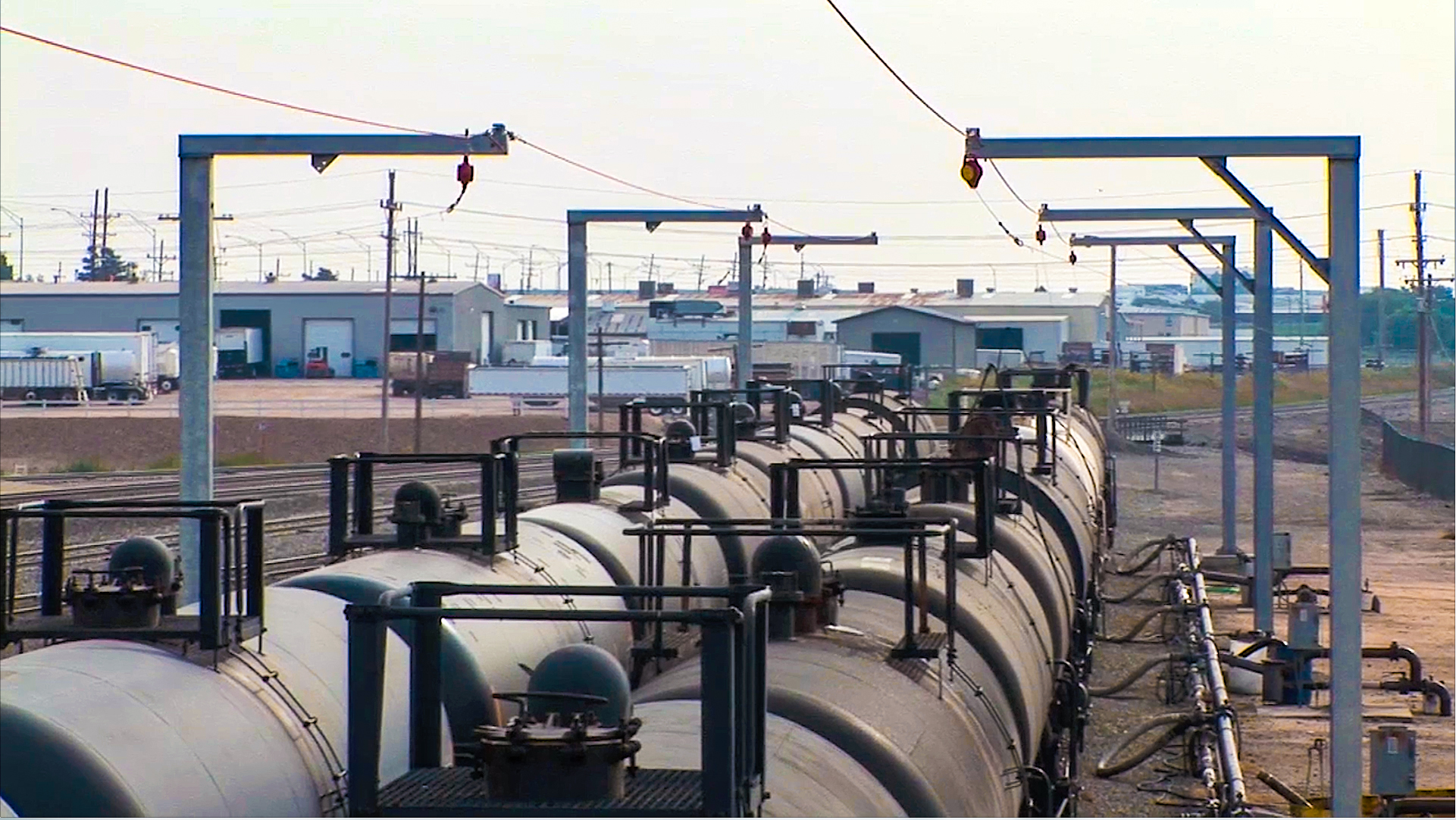

LIFELINE CABLE FALL PROTECTION SYSTEMS
The SafeRack cable lifeline fall protection system is a lightweight, shock-absorbing horizontal fall protection system designed for use in railcar and truck tank container loading and unloading applications.

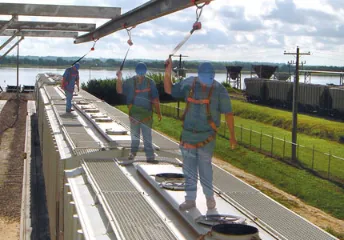

TROLLEY BEAM FALL ARREST SYSTEMS
Give workers loading or tarping flatbed trailers the flexibility and mobility to work safely and confidently at heights with a SafeRack trolley beam system for flatbed trailers.

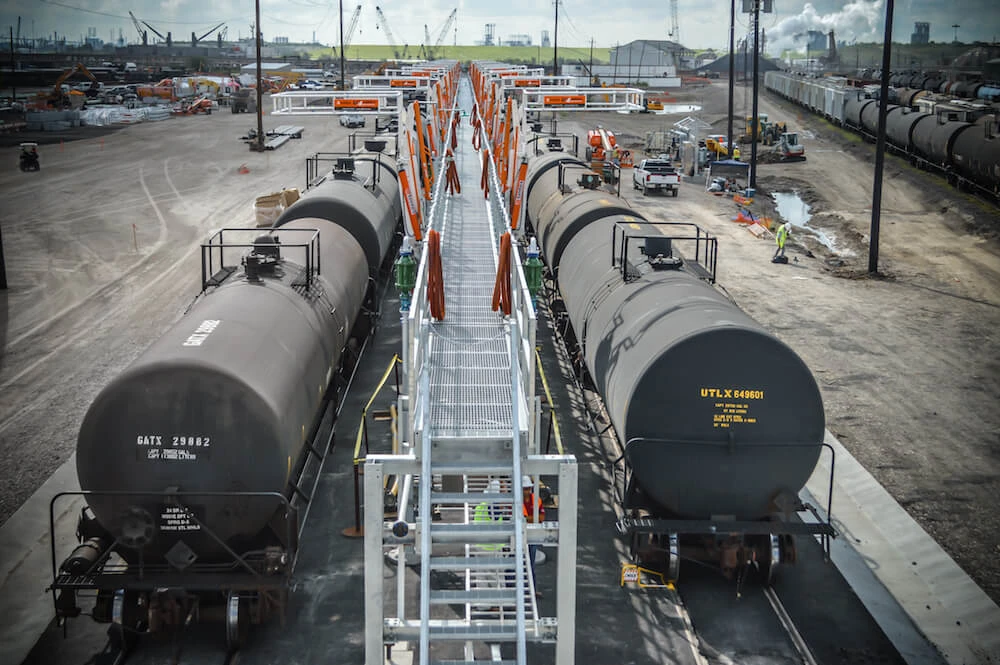

RAILCAR LOADING SYSTEMS & PLATFORMS
The #1 selling railcar gangway and loading platforms in North America. SafeRack is your partner in designing and building turnkey railroad bulk loading platforms and…
Importance of Proper Use and Maintenance
To ensure the effectiveness of a fall arrest system, it is crucial to follow proper use and maintenance protocols:
- Inspection: Regular inspection of all components is essential. Look for any signs of wear, damage, or defects in the I-beam, trolley, lifeline, harness, and other parts.
- Training: Workers must be properly trained in the use of fall arrest systems. This includes understanding how to don the safety harness correctly, how to attach the lifeline, and what to do in the event of a fall.
- Maintenance: Proper care and maintenance of the equipment extend its life and ensure its functionality. Avoid exposing the equipment to corrosive substances, and store it in a dry, clean area when not in use.
Conclusion
Fall arrest systems are vital for protecting workers operating at heights. By understanding and correctly using the various components of the system—such as the I-beam, anchor trolley, self-retracting fall limiter, lifeline, D-ring extender, safety harness, tagline, and bollards—workers can significantly reduce the risk of serious injury or death from falls. Regular inspection, proper training, and diligent maintenance ensure these systems function effectively and provide the necessary protection.
