A Blockage Test, also known as nitrogen testing, is a critical procedure used in vapor recovery systems to detect obstructions or liquid buildup within pipelines. It ensures that vapors can flow freely back to storage tanks during fuel transfer, maintaining system efficiency, safety, and environmental compliance. In this process, a measured amount of nitrogen gas is introduced into the vapor recovery system, and the amount that reaches the storage tank is monitored. If there is a difference between the nitrogen sent through the system and the amount received, it indicates an obstruction or accumulated liquid in the pipelines, which can block vapor flow, especially in systems using balance stage recovery nozzles.
How Blockage Test Works

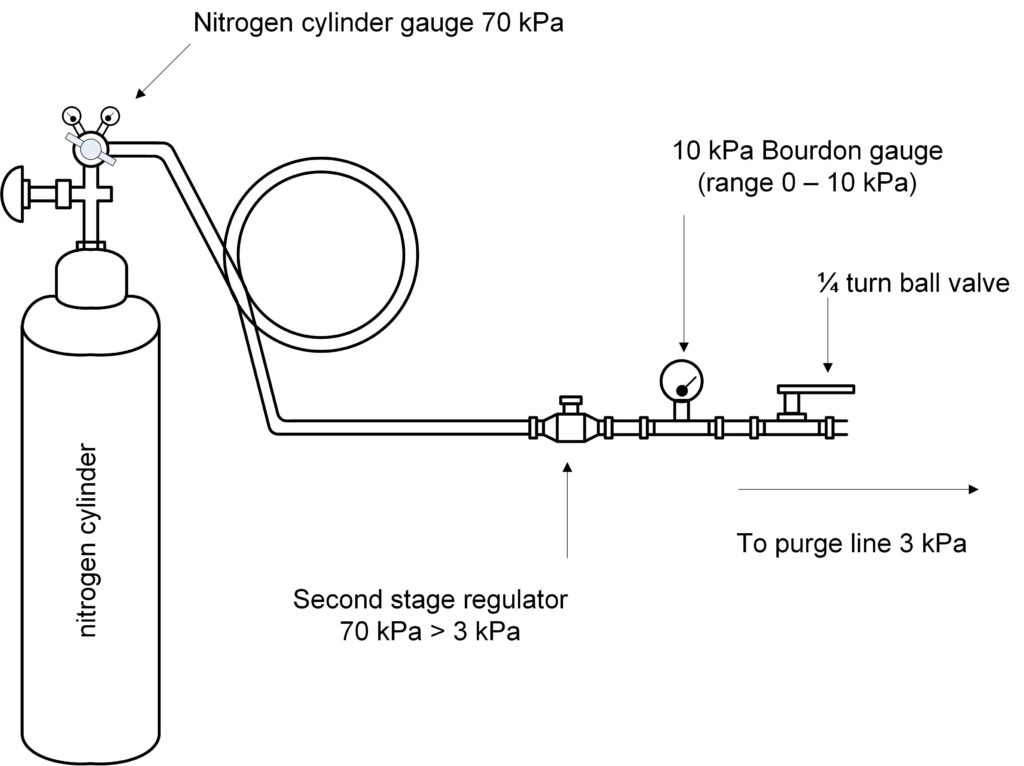

A Blockage Test works by introducing a controlled amount of nitrogen gas into the vapor recovery system. The gas travels through the piping network toward the storage tank, and the amount received is measured and compared to the amount injected.
- Nitrogen Injection: A measured quantity of nitrogen is introduce into the system.
- Flow Monitoring: The gas travels through pipelines and recovery lines.
- Comparison Measurement: Output is compare with input levels.
- Issue Detection: Any difference indicates a blockage, leak, or liquid accumulation.
This process helps identify areas where vapor flow is restrict, allowing timely maintenance and system optimization.
Nitrogen Testing for Detecting Pipeline Blockages & Leaks
Applications
- Fuel Loading Stations: Ensuring proper vapor return during dispensing.
- Oil and Gas Facilities: Detecting blockages in vapor recovery pipelines.
- Storage Terminals: Maintaining efficient vapor transfer systems.
- Industrial Processing Plants: Monitoring piping systems for obstructions.
Benefits
- Improved Efficiency: Ensures vapor recovery systems operate at optimal levels.
- Early Detection: Identifies blockages and leaks before major issues occur.
- Environmental Protection: Prevents vapor emissions and product loss.
- Cost Savings: Reduces downtime and maintenance expenses.
A blockage test is a method use to detect obstructions or liquid buildup in pipelines by measuring nitrogen flow through the system.
It ensures vapor recovery systems function properly and prevents efficiency loss due to blockages or leaks.
It compares the amount of nitrogen injected into the system with the amount received to identify inconsistencies.
It is use in fuel stations, oil facilities, and industrial piping systems with vapor recovery operations.
