Railcar Chocks and Stops
Reliable Safety Equipment for Preventing Unintended Railcar Movement
Essential Protection for Rail Yards, Terminals & Repair Facilities
Stopping and securing a 100-ton freight car takes more than standard equipment. As an authorized distributor of Aldon rail safety products, SafeRack offers a complete line of FRA- and OSHA-compliant wheel chocks, derail devices, and warning systems engineered for today’s rail operations.
From cast steel and rail-clamping blocks to the latest urethane chocks, each product is designed to resist movement caused by wind or shifting loads. Featuring rail-biting steel spurs for maximum hold, these chocks help protect workers and equipment during loading, unloading, and maintenance—meeting OSHA 1910.110(15), 1910.11(13), and 1910.110(A)(5) standards with confidence.
Railcar Chocks and Blocks
Safety & Compliance Expert
HAVE A QUESTION?
Talk to a Safety Expert Now
Download
"*" indicates required fields
We’re committed to your privacy. We use the information you provide to us to contact you about our relevant products and services. You may unsubscribe from these communications at any time. For more information, check out our Privacy Policy.
Thank You.
Your file is downloading
You can now download additional files
without filling out the form again.
Railcar Chocks and Blocks
Single Railroad Wheel Chock
The Single Railroad Wheel Chock for flush mount or exposed rail is constructed from durable all-steel materials and features a replaceable rail-biting spur to securely hold freight cars and locomotives on exposed tracks. It is compatible with train rails ranging from 75 lbs./yd. to 141 lbs./yd. and supports wheel diameters between 28″ and 44″. The traction spur can be rotated to a new edge or replaced when dulled, extending the product’s lifespan for continued reliable performance.
Single Railroad Wheel Chock Attributes
- Wheel diameters 28″ – 44″
- Rails from 75 lbs./yd. to 141 lbs./yd.
- Replaceable traction spurs
Single Check With Flag
- Handle length: 28″
- Options:
- Exposed Rail (Pictured)
- Flush Rail
Single Chock
- Handle length: 12″
- Options:
- Exposed Rail
- Flush Rail (Pictured)
Double Railroad Wheel Chock
The Double Railroad Wheel Chock for flush mount or exposed rail is constructed from durable all-steel materials and features a replaceable rail-biting spur to securely hold freight cars and locomotives on exposed tracks. It is compatible with train rails ranging from 75 lbs./yd. to 141 lbs./yd. and supports wheel diameters between 28″ and 44″. The traction spur can be rotated to a new edge or replaced when dulled, extending the product’s lifespan for continued reliable performance.
Double Railroad Wheel Chock Attributes
- Wheel diameters 28″ – 44″
- Rails from 75 lbs./yd. to 141 lbs./yd.
- Replaceable traction spurs
Double Check With Flag
- Handle length: 28″
- Options:
- Exposed Rail (Pictured)
- Flush Rail
Double Chock
- Handle length: 12″
- Options:
- Exposed Rail (Pictured)
- Flush Rail
Heavy Duty Wheel Chocks
Built with the same proven design as the standard wheel chocks, Aldon’s “Whack ‘Em” heavy-duty Duty Wheel Chocks offer enhanced durability for the toughest railcar loading and unloading conditions.
In certain situations, such as when working with tank cars, wheel chocks with steel spurs may become lodged under the wheel. “Whack ’Em” Chocks are designed to handle this challenge. Featuring reinforced steel handles, these chocks can withstand hammer blows or forceful sideways pulls to free them quickly and efficiently, ensuring uninterrupted operations.
Whack ‘Em Single
Railroad Wheel Chock w/Flag
- Handle length: 28″
- Options:
- Exposed Rail
- Flush Rail
Whack ‘Em Double
Railroad Wheel Chock w/Flag
- Handle length: 28″
- Options:
- Exposed Rail (Pictured)
- Flush Rail
Whack ‘Em Double and Single Chock
- Handle length: 12″
- Options:
- Exposed Rail (Pictured)
- Flush Rail
Ergonomic Wheel Chocks
Built with the same proven design as the standard wheel chocks, but with a longer handle (46″) for easier and safer positioning. Worker can stay clear of railcar when installing or removing these wheel chocks.
Ergonomic “A” Single Chock w/Flag
- Handle length: 46″
- Options:
- Exposed Rail
- Flush Rail
Ergonomic “C-1” Double Chock w/Flag – Flush Rail
- Handle length: 46″
- Options:
- Exposed Rail (Pictured below)
- Flush Rail
Spark-Proof Urethane Heavy-Duty Wheel Chock
Designed for one-direction chocking of tank cars and freight cars during the loading or unloading of hazardous materials, these urethane wheel chocks provide a safer alternative to steel chocks, eliminating the risk of sparks that could ignite dust or fumes.
Often called the “miracle material,” urethane offers exceptional load resistance while maintaining flexibility. It can compress to half its thickness under pressure and then spring back to its original shape, ensuring long-term durability. Unlike traditional materials, urethane resists corrosion, chemicals, and harsh environmental conditions, making it a reliable choice for demanding rail yard operations.
Features
- Available in two versions: Exposed rail or flush rail.
- Easy-grip design: Handles sit 1-1/2” above pavement when installed on flush rail.
- Optimized height: Stands 4” above the rail, ideal for chocking locomotives.
- Supports wheel diameters from 26″ – 44″
Urethane Heavy-Duty Double Wheel Chock
- Options:
- Exposed Rail (Pictured far left)
- Flush Rail
Railcar Wheel Chocks Accessories
Railroad Chock Replacement Spurs
Replaceable Spurs give your chocks four times the life of any other chock.
Steel chocks from Aldon have featured replaceable spurs which bite into the rail to give the chocks extra holding power.. When the spur dulls from use, remove the spur and turn it to a new edge. Extend the life of your wheel chocks by turning the spurs three times … then order new spurs instead of new chocks!

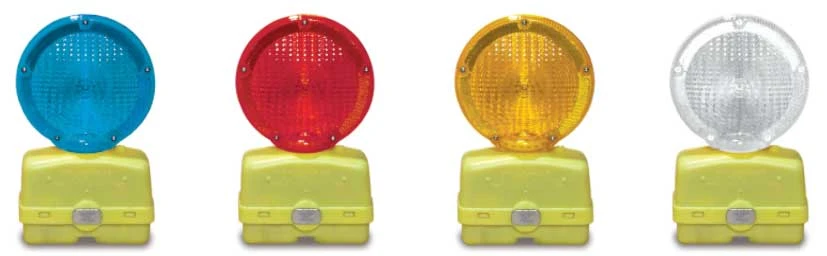

Flashing Lights for Chocks
Barricade-style, 7 in. diameter shatterproof Lexan lens, uses two 6-volt batteries. Battery case bolts to light-bracket. On-off switch and photo-electric cell. Flashes 60 times/min. Weight 3 lbs.
Your Full-Service Partner for
Railcar Terminal Loading Design & Compliance
– More Than Superior Products –
- On-Site Safety Assessments
Complimentary evaluations to identify risks, ensure compliance, and improve workflow efficiency. - Proprietary Configurator
Save time and costs with same-day 3D renderings, loading terminal layout drawings, and budgetary quotes—all with built in compliance and efficiency.
- Compliance and Productivity Optimization
Expert design support to meet safety regulations while streamlining operations and reducing downtime. - Large Project Consultation
Collaboration with your team to design loading platform solutions that meet regulations and facility needs.
Frequently Asked Questions
Railcar chocks are essential safety devices that prevent unintended movement during loading, unloading, and maintenance operations. They help protect workers by securing railcars in place, reducing the risk of accidents caused by unexpected movement, especially when brakes are released for servicing. OSHA regulations require their use in many rail yard and repair facility operations.
Urethane wheel chocks provide a spark-proof solution during the loading or unloading of hazardous materials. These urethane wheel chocks provide a safer alternative to steel chocks, eliminating the risk of sparks that could ignite dust or fumes.
Yes. Flush mount rails are level with the ground, while exposed rails sit above the surface. Each requires a specific type of railcar chock to ensure proper grip and stability—using the wrong type may reduce holding power and compromise safety.
Steel railcar chocks were successfully tested at the Association of American Railroads’ testing facility at Pueblo, Colorado, to withstand more than 25,000 lbs of drawbar pull. That’s roughly 32% of a typical SD-40 freight locomotive drawbar pull.
CAUTIONS
- For use on railroad car or locomotive wheels 28″-44″. Do not use on smaller or larger diameter or on other types of wheels.
- For rail sizes 75 to 141 lbs./yd.
- Set brake before installing chock. Chock alone may not hold car in place.
- Use 2 chocks per car being chocked.
- DO NOT install chocks while car is moving.
- Rail surface must be clean. Do not install this product on oily or greasy rail – product may slip.
- Spurs are important in holding chock to rail. Rotate spur when edge becomes dull. Replace spurs when necessary. Dull or missing spurs may cause chocks to slip.
- Do not use chocks on grades. If your track has a dip or a hollow, extra care must be taken to secure car.
- Chocks may not hold if rail car is lifted up at one end.
- Excessive vibration may cause a chock to slip.
- Keep fingers and hands away from car wheel. Watch your head!
- On double chocks, always use tarp strap (supplied with chocks) to draw chocks tight.
