Rail Neutral Temperature

Rail neutral temperature (RNT) is a critical calculation used in the design and installation of continuous welded rails (CWR). It determines the rail temperature at which the rail is stress-free. CWR are rails that are welded together to form long continuous members that are fixed at both ends. Why does this matter? Because rails expand and contract with temperature changes. Environmental heating causes rails to enlarge and can cause them to buckle. Environmental cold may result in the contraction of the stationary rail, leading to brittleness and fractures. They helps engineers prevent these dangerous conditions. For rail facilities that handle hazardous materials, railcar loading systems depend on stable tracks maintained with proper rail neutral temperature calculations.

How Rail Neutral Temperature Works

When rails are installed, they are stretched or heated to a specific stress-free temperature. Here is how its works:

• Rails are installed at a target RNT (typically between 90°F and 110°F)
• At this temperature, the rail experiences zero internal stress
• When temperature rises above RNT, the rail goes into compression
• When temperature drops below RNT, the rail goes into tension
• The goal is to balance hot and cold extremes

In the installation of tracks, the rail is changed by extending with hydraulic tensioners or heated to its stress-free temperature. This makes harmful issues less likely. For accurate track maintenance, metering systems help measure conditions that affect RNT calculations.

Why Rail Neutral Temperature Matters

It is essential for safe rail operations. Here is why it matters:

• Prevents rail buckling in hot weather
• Prevents rail fracture in cold weather
• Reduces derailment risk
• Extends rail life
• Guides rail installation and maintenance

When temperatures considerably increase above the rail neutral temperature, the rails experience zero pressure but then go into compression. The metal can enlarge and cause the rails to buckle. When temperatures drop below RNT, the rails contract and can cause fractures. These impacts can, in a worst-case scenario, cause train derailment. For petroleum refineries that receive crude oil by rail, maintaining proper rail neutral temperature on siding tracks is critical for safety.

Continuous Welded Rail (CWR) Basics

Continuous welded rail is the standard for modern railways. Here are the key facts about CWR and rail neutral temperature:

• CWR eliminates joints between rail sections
• Joints are welded together into long continuous strings
• CWR can be miles long without a single joint
• Without joints, expansion and contraction have nowhere to go
• That is why rail neutral temperature is so important

Unlike jointed rail that has gaps for expansion, CWR at both ends. The stress has nowhere to go. So the rail itself takes the stress. Proper rail neutral temperature installation ensures that stress stays within safe limits. For bulk liquid transfer, loading arms are often installed on sidings where they have been carefully calculated.

Factors That Affect CWR Condition

Several factors influence how CWR behaves relative to rail neutral temperature. Here are the main ones:

• Condition of the track ballast and shoulders
• Type and positioning of the sleepers (ties)
• Areas of greater shade such as bridges and tunnels
• Track consolidation
• Vertical curvature of the tracks
• Previous rail adjustments

Even installing CWR at a optimal ambient temperature does not guarantee a rail will not buckle or crack in the foreseeable future. Sometimes it is necessary to reinstall the whole rail. For rail yard maintenance, work platforms give workers safe access to inspect tracks where its needs verification.

Detecting Rail Neutral Temperature Problems

A way of preventing rail flaws is to quantify rail neutral temperature and longitudinal rail pressure of CWR. This helps determine whether reinstallation of the whole rail is justified to boost security. Signs of RNT problems include:

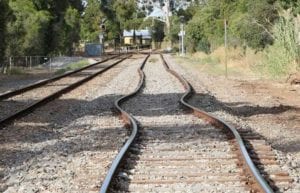

• Sun kinks (buckled rails on hot days)
• Pull-aparts (broken rails on cold days)
• Track gauge changes
• Visible lateral movement of rails
• Frequent track maintenance needs

Railroad steel contracts in reduced temperatures and expands at elevated temperatures. In extreme cold, a length of CWR suffers tensile stress. This stress can lead to railroad steel cracking. In intense heat, a length of CWR suffers compressive stress. This type of stress can cause a span of railroad to buckle laterally (sideways). For fall protection during rail inspection, fall protection systems keep workers safe while checking rail neutral temperature conditions.

How Rail Neutral Temperature Is Measured

Measuring they requires specialized equipment and methods:

• Strain gauges attached to the rail web
• Ultrasonic testing devices
• Rail lift-off methods
• Reference marks with known temperature history
• Computer modeling of track conditions

Once measured, if the has shifted too far from the ideal range, rail crews may need to cut the rail, re-stress it, and re-weld it at the correct temperature. For chemical facilities, grounding and monitoring systems work alongside track maintenance that respects proper rail neutral temperature.

Safety and Rail Neutral Temperature

Improper rail neutral temperature creates serious safety hazards:

• Derailment risk from buckled rails
• Derailment risk from broken rails
• Spills of hazardous materials from derailed tank cars
• Injuries to train crews and nearby workers
• Damage to rail infrastructure

Railway steel contracts in reduced temperatures and expands at elevated temperatures. That is why it is not just an engineering number. It is a safety critical parameter. For spill prevention, spill containment systems and railcar track pans provide secondary protection if a derailment occurs due to rail neutral temperature issues. Safety gates protect workers inspecting tracks where is being verified.
