Tools for Tank Cars
Railcar Manway T-Wrenches, Pry Bars, Crash Box Safety Gates, Sockets & Tools

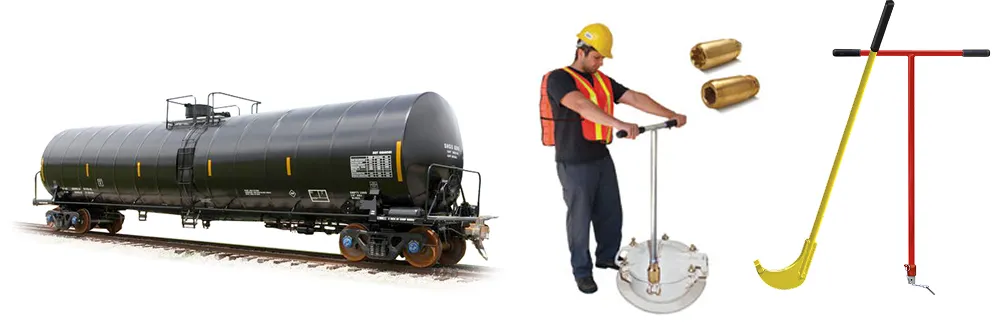

Tank car tools to make railcar loading and unloading safer, more efficient, and compliant with industry standards. Our selection includes specialized wrenches, sockets, pry bars, and measuring devices designed for the unique demands of railcar manway access and maintenance.
Tools for Tank Cars
Safety & Compliance Expert
HAVE A QUESTION?
Talk to a Safety Expert Now

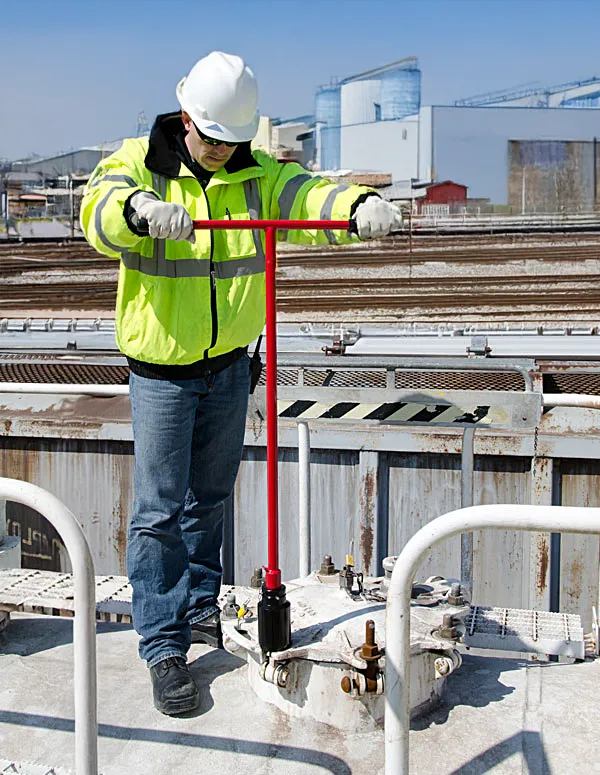

Railcar Manway Cover
T-Wrenches
Our Railcar Manway Cover T-Wrenches are engineered for efficient, safe, and reliable opening and closing of railcar dome lid nuts. Lightweight and easy to handle, these T-wrenches provide the right leverage to loosen or tighten manway cover bolts without stripping threads or damaging lid gaskets. This helps maintain the integrity of your railcar equipment and ensures a secure seal every time.
Each T-wrench features an exchangeable 1” square drive tube socket with a 4” clear internal depth, designed to fit all popular dome lid nut sizes. The sockets are tapered for a precise fit, and the maximum socket outer diameter is just 2-3/4”, making them ideal for use in tight spaces.
Steel T-Wrench
Aldon | Item #: 4024-157
Weight: 15 lbs
- Designed for applications requiring up to 200 ft./lbs. of torque.
- 24” wide handle with a 36” tall staff (1” OD handle diameter).
- 1” square drive with a safety chain locking pin to secure the socket.
Aluminum T-Wrench
Aldon | Item #: 4024-195
Weight: 5 lbs
- Spark-resistant, suitable for use with bronze tank car sockets.
- Rated for up to 200 ft./lbs. of torque.
- 24” wide handle, 36” tall staff, and a 1-3/8” OD handle.
- Safety chain with locking pin secures the socket.

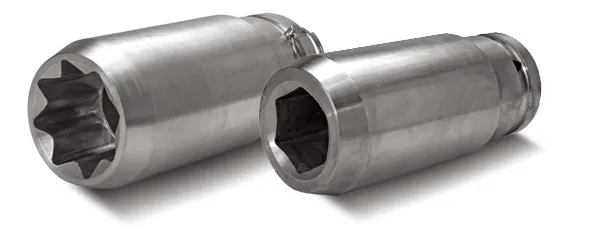

Steel Tank Car Sockets
Steel socket sizes available in Hex or 8-PT. styles, from 1-5/16″ to 1-7/8 “.
For 1″ Sq. Drive, Max Torque Rating 1,500 ft./lbs.

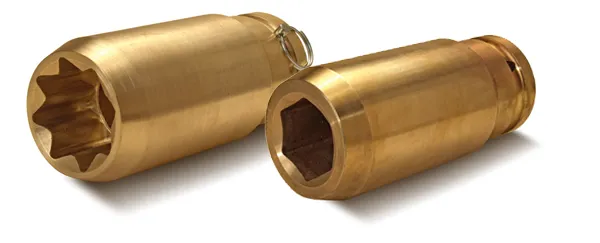

Bronze Tank Car Sockets
Bronze socket sizes available in Hex or 8-PT. styles, from 1-5/16″ to 1-7/8 “.
For 1″ Sq. Drive, Max Torque Rating 500 ft./lbs.
Tank Car Pry Bars
Our Tank Car Pry Bar is engineered for safe removal of tank car manway covers. Designed to engage the grab-handle on manway lids, this tool features a five-foot steel pipe handle and a rocking foot, giving operators the leverage needed to break the vacuum seal created by pressure differences inside and outside the tank car. This helps overcome suction without excessive force or risk to worker.
With the Tank Car Pry Bar, workers can stand upright during use, keeping a safe distance from the manway opening and minimizing exposure to escaping fumes when the lid releases. The ergonomic design reduces physical strain and supports compliance with facility safety protocol.
- Five-foot handle allows operators to maintain a safe, upright position while working.
- Rocking foot design maximizes leverage, making it easier to break stubborn seals.
- Reduces risk of injury and exposure to hazardous vapors during manway cover removal.
Tank Car Pry Bar (All Steel)
Aldon | Item #: 4020-18
Weight: 36 lbs
Durable, heavy-duty construction for general applications.

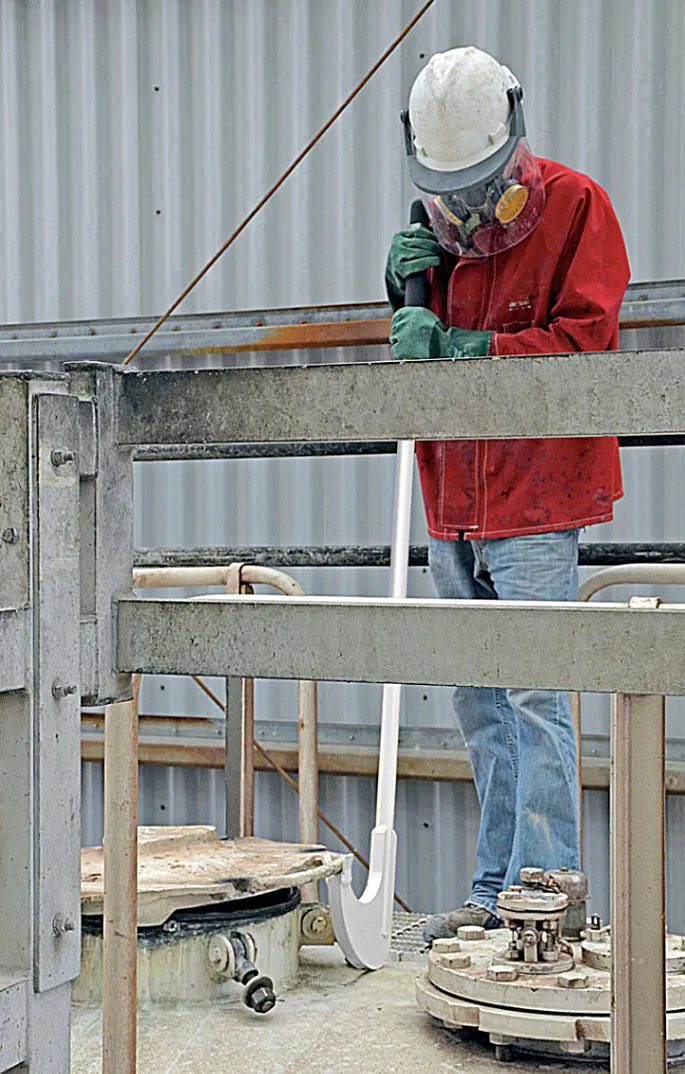

Spark-Proof Aluminum Pry Bar
Aldon | Item #: 4020-19
Weight: 12 lbs
Designed for use in environments where spark prevention is critical.

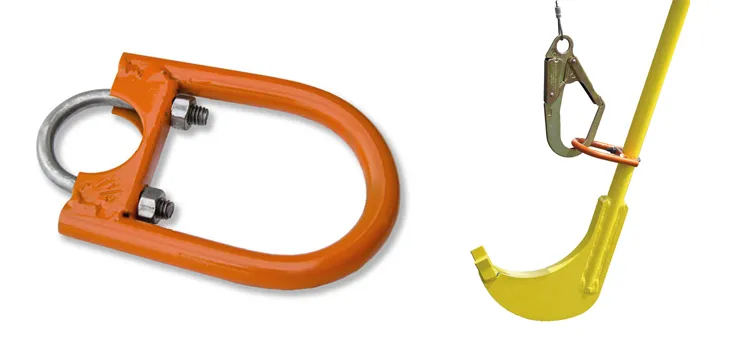

Suspension Clamping Ring
Aldon | Item #: 4024-302
Orange ring clamps any 1-1/2” diameter handle to a tether.

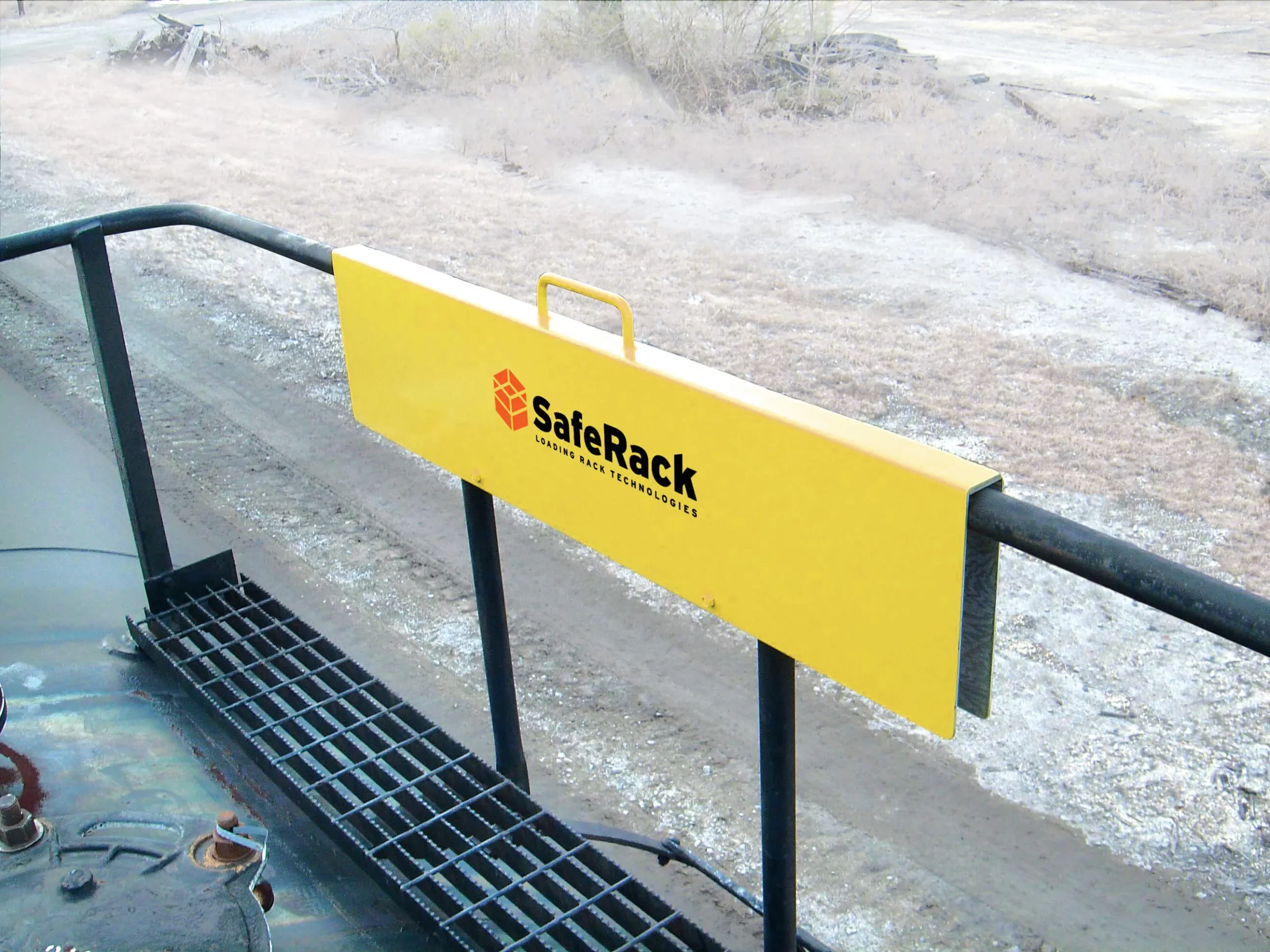

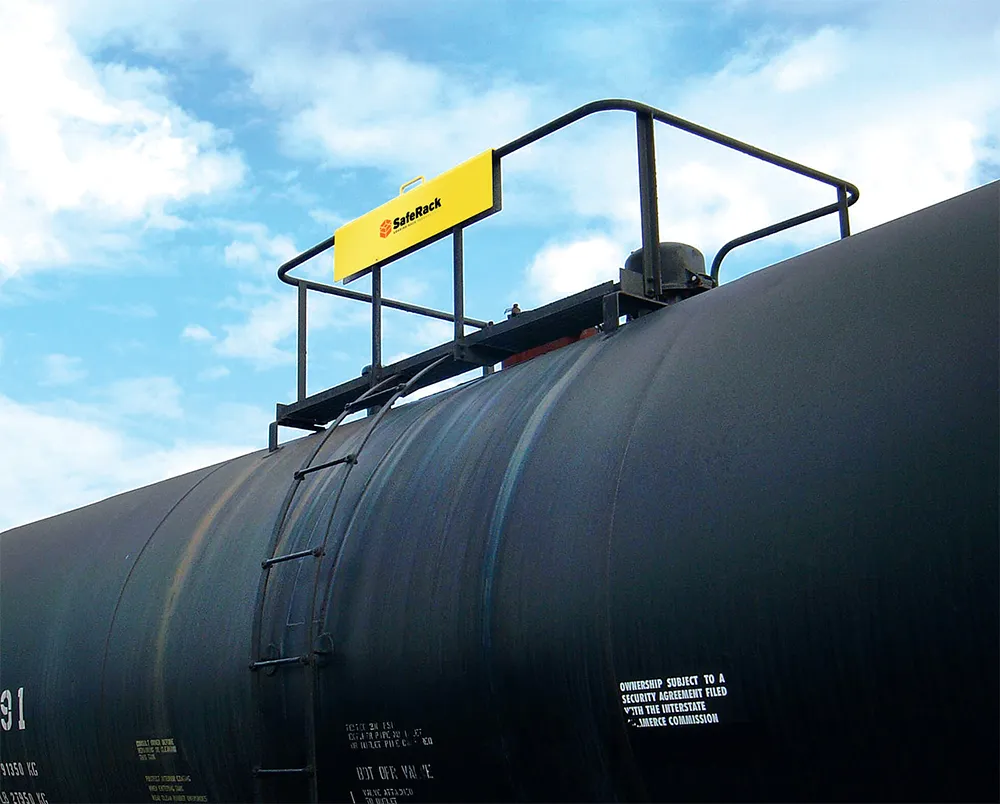

Tank Car Crash Box Safety Gate
Close Off Unsafe Openings on Railcar Crashboxes.
SafeRack’s slide-on safety gate secures the operator platform during loading, venting, and maintenance. The formed aluminum panel with an easy-to-carry handle drops onto the crashbox railing, giving the operator fall protection and a secure area to work. Why trust a chain when falls from a railcar can be serious or even fatal.
- Lightweight aluminum construction
- Bright Powder-coated safety yellow finish

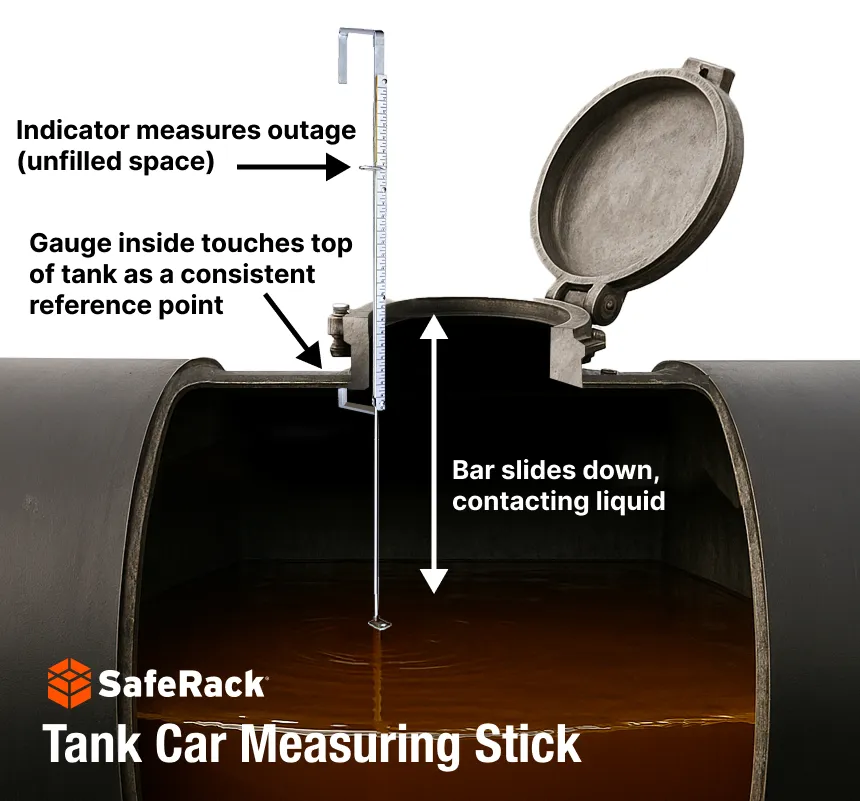

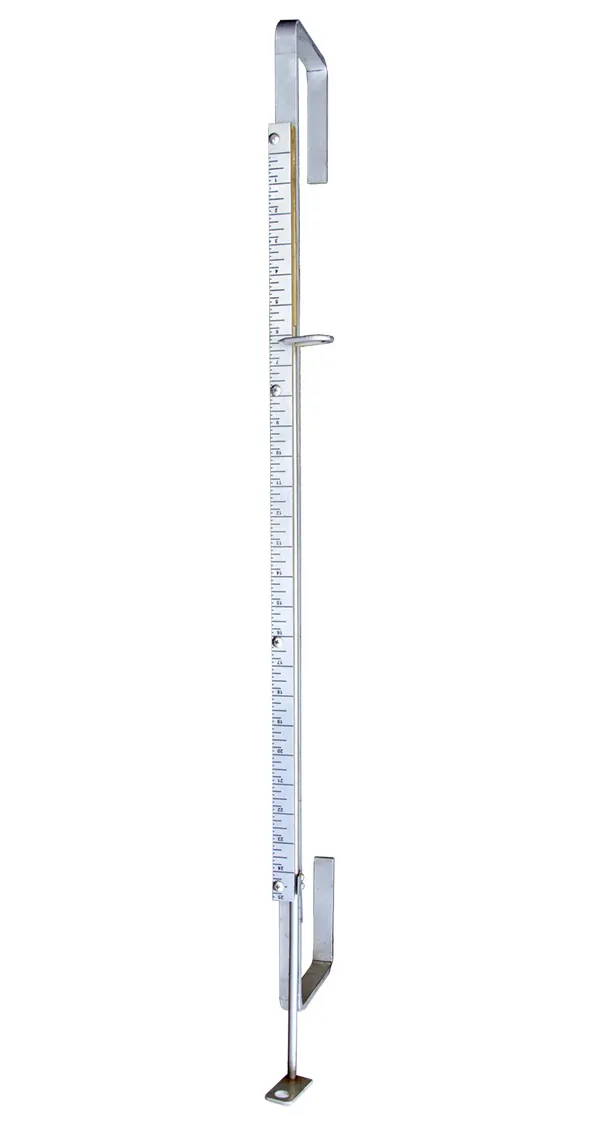

Tank Car Measuring Stick
Aldon | Item #: 4123-151
Weight: 8 lbs
The SafeRack Tank Car Measuring Stick is a reliable tool for accurately measuring outage—the unfilled space inside a rail tank car. This measuring stick is designed to hook securely inside the manway hatch at the outage reference point. The user simply slides the 25-inch stainless steel and brass stick down until its tip touches the liquid surface, providing a direct reading of the remaining space.
Compatible with all tank car models that feature an internal measuring reference point in the manway, this tool offers a straightforward, manual solution for outage measurement. Its hanging design ensures quick deployment and easy use, helping operators maintain safe fill levels and comply with loading protocols.
- Suitable for all tank car models with an inside reference point
- Constructed from durable stainless steel and brass for long service life
- Suitable for all tank car models with an inside reference point
- Constructed from durable stainless steel and brass for long service life
