GXM Gangway
SafeRack’s Next-Generation Modular Access Gangway
The GXM Gangway represents the next evolution in SafeRack’s industry-leading gangways and access solutions. Built with a fully modular structure on a U-body foundation, the
GXM is engineered to be adaptable in the field as your facility’s safety needs change. It is designed in response to real customer feedback to address any reported maintenance, reliability, and access issues. The result is a single, ready-to-use platform that replaces legacy G4 and Gx models, speeds up installation, and provides your team safe and consistent access to trucks and railcars day after day.
Key Features
- Built on a U-body Foundation
The redesigned foundation expands innovation across the entire gangway and provides bolt-on flexibility - Field-Upgradable
Modular design allows upgrades after installation - Adapts as Your Needs Change
Gangways are flexible to changing requirements without the need to replace the entire unit
- Simple Upgrades
Scalable design allows additions such as cement add-on stiffeners without the need to replace the entire gangway - No Full Replacements Needed
A modular structure means less downtime, wasted work hours, and money saved - One Gangway, One Solution
Replaces G4 and GX models for a new streamlined access system
GXM Gangway 2
Safety & Compliance Expert
HAVE A QUESTION?
Talk to a Safety Expert Now
GXM Gangway 2
Powered System
The New Power System Options are Simplified and Service-Friendly
- One standard package – universal design that works with all standard gangways
- Easier service access – power units are installed near the platform for easy access
- Pneumatic & electric options – GXm gangways can be configured for 120V electric or 80 psi pneumatic systems
- Manual operation available – gangways can still be manually raised or lowered even during a power outage
- Push-button control – updated control layouts eliminate the old pull rope system
- Simplified install + troubleshooting – includes signal lighting for clear status indication
Intelligently Manufactured
Designed for Speed and Service
- Improved modularity – flexible options streamlines production and field service
- Split pivot rod design – simplifies key connections at body/basetread and body/seatainer
- Faster assembly – modern installation process eliminates time lost hammering in pivot rods
- Easier field repairs – components are accessible and serviceable on-site
Modular Top Rail
Top Rail Redesigned for Speed & Flexibility
- Candy cane handrail option – candy cane handrails can be added on without replacing the full assembly
- Improved speed and throughput – all-new top rail design increases manufacturing speed and efficiency
- Easy-to-grab handrail – standard configuration for safer, faster access
- Field-convertible – switch to extended top rail for tracking or fixed gangways whenever it’s needed
- Simple upgrade – the new system has simplified the conversation and only requires four bolts
Stronger Than Ever
The New GXm Design Includes Our Strongest Standard Seatainer Yet
- Universal design – built from two standard halves that create universal compatibility
- Adjustable gangway width – the seatainer has adjustable cage surfaces which support various widths & walk surface sizes
- Minimal deflection – best performance with large offset cement cages

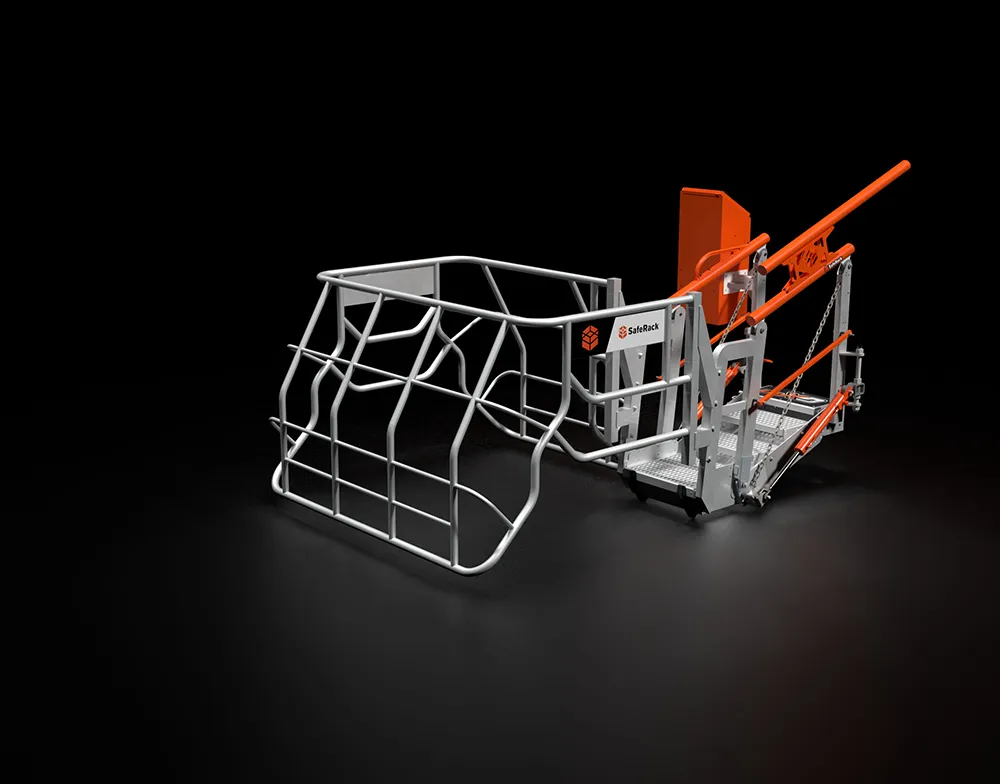

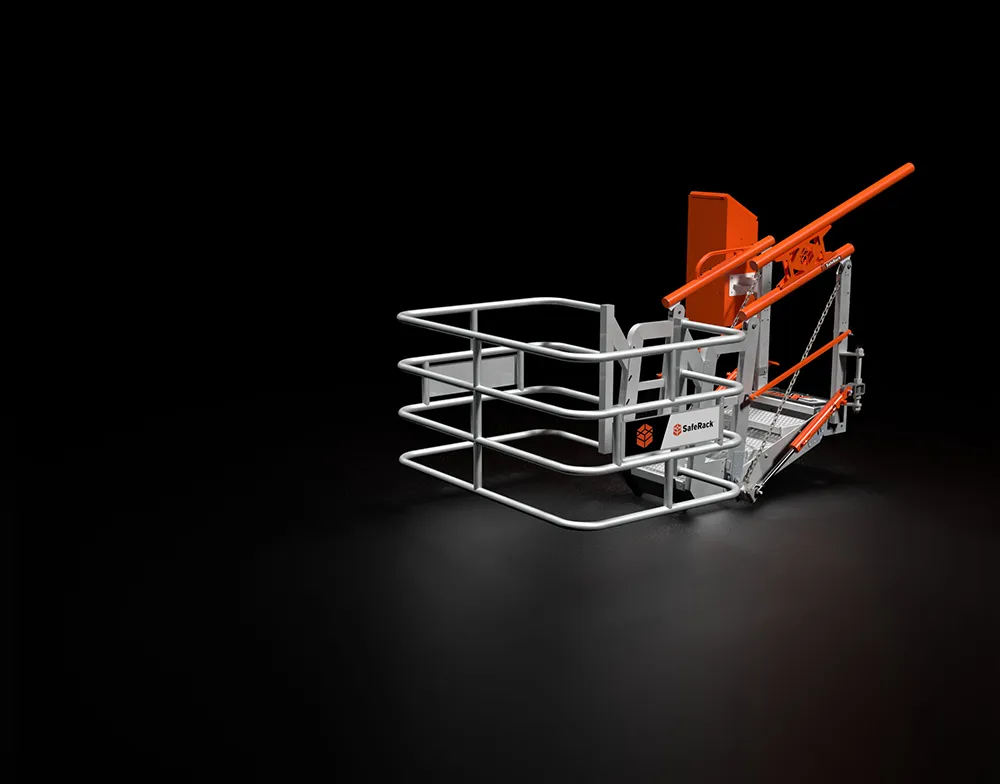

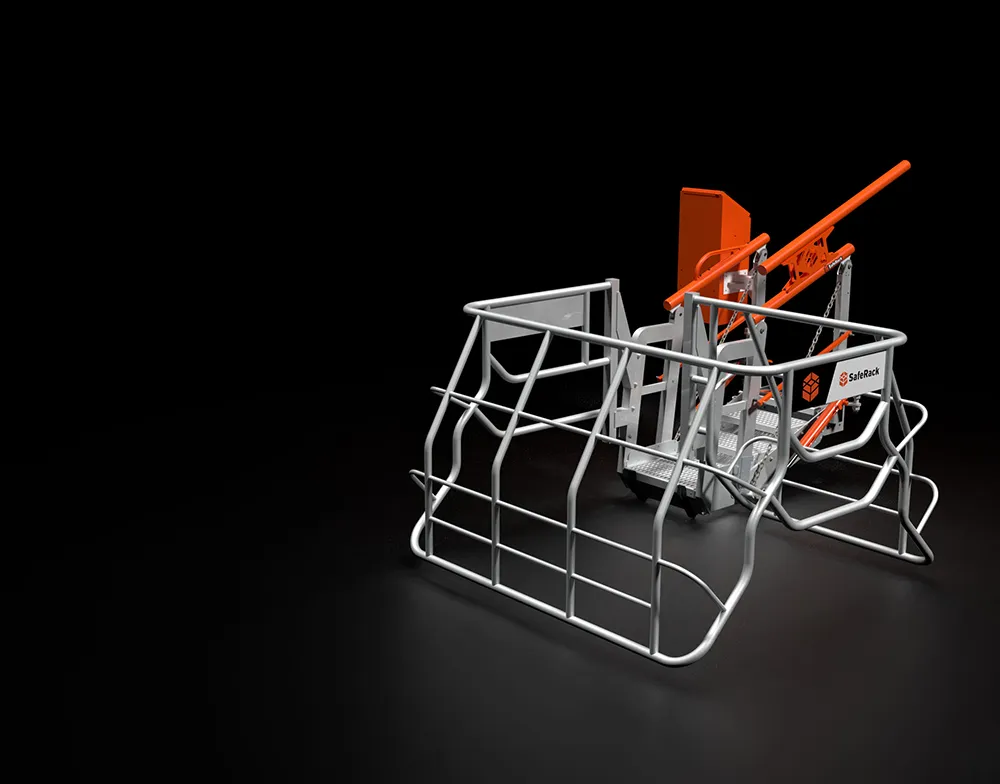

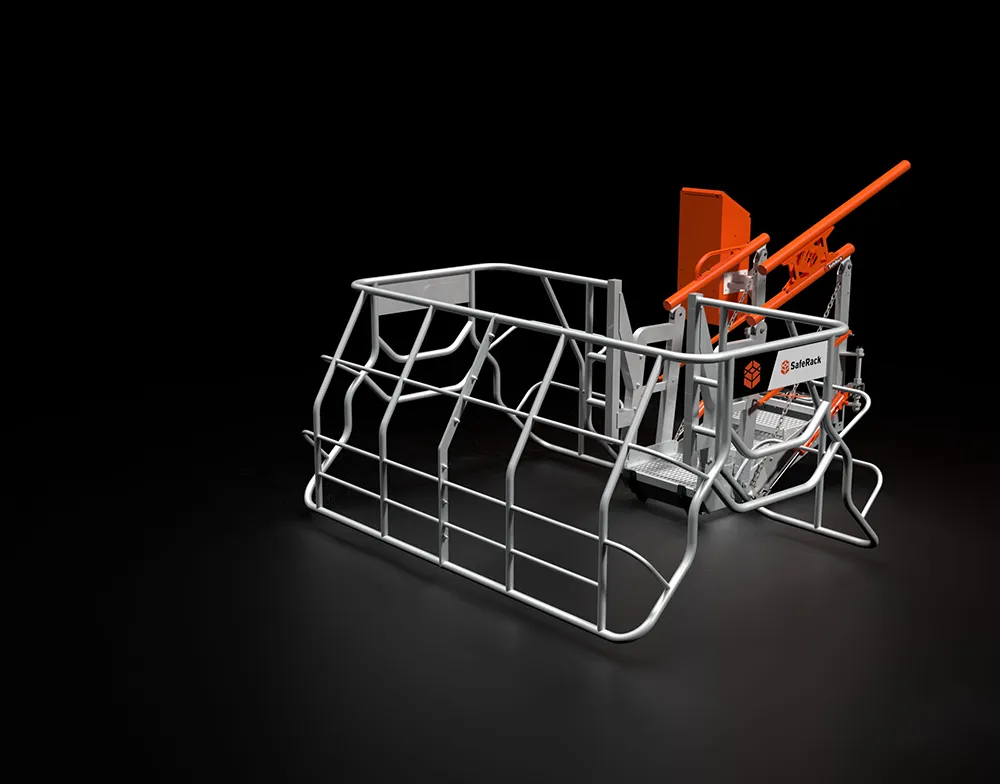

Safety Cage Options for the GXm Modular Gangway
The GXm Modular Gangway includes five main safety cage options to match your truck and railcar loading operation
FAQ & Related Products
Frequently Asked Question
No, the GXm does not require an overhaul of your current access infrastructure. SafeRack’s streamlined gangways can integrate seamlessly into your existing systems and include easy upgrade options for future improvements.
The GXm gangway can be customized to meet your specific facility’s requirements. SafeRack’s equipment utilizes a modular design, allowing for quick and easy modifications in the field.
SafeRack’s GXm can come in electric and pneumatic configurations. The electric power option is 120V and uses a single-phase, 20-amp circuit. Pneumatic gangways use clean, dry air at 80 psi, 30 scfm minimum. Both can include manual operation features to raise and lower during power loss.
Regular inspections are recommended for all our gangway systems. This includes checking pivot points, safety cages, and handrails. SafeRack offers preventative maintenance services to reduce the risk of catastrophic failures.
